卡特零件查询（AP-655D） 339-1639: CONVERSION GP-SCREED
广数供应链运营团队, 17 02月, 2025，浏览：
547 次

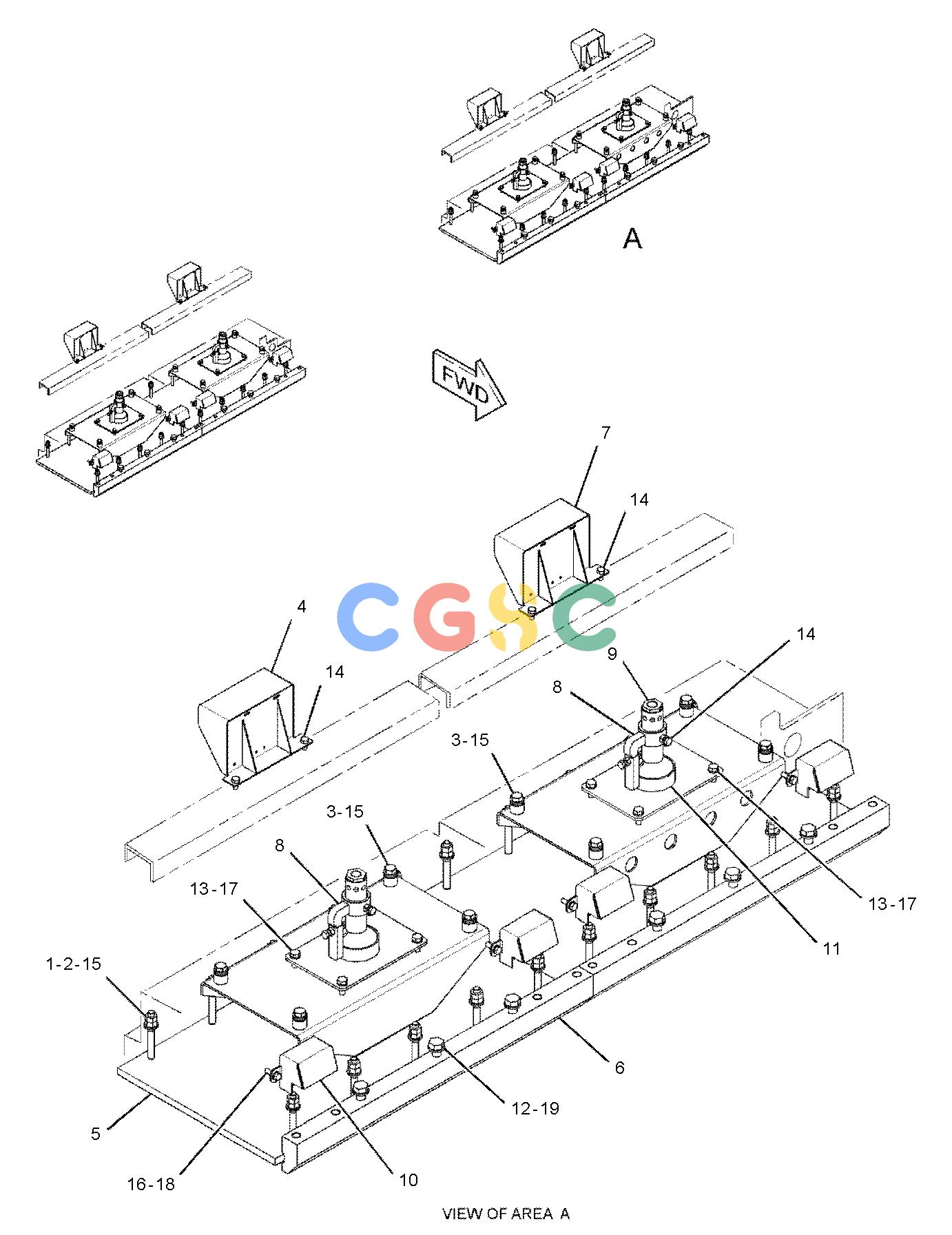

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 245-9693M | [40] | STUD(M12X1.75X100-MM) | |
| 2. | 248-9997M | [80] | NUT-BRASS(M12X1.75-THD) | |
| 3. | 249-3036M | [16] | BOLT(M12X1.75X20-MM) | |
| 4. | 272-4940 | [4] | BOX AS | |
| 5. | 307-8655 | [4] | PLATE-SCREED | |
| 6. | 307-8656 | [4] | BAR-TAMPER | |
| 7. | 307-8657 | [4] | DIFFUSER AS | |
| 8. | 335-0607 | [4] | SUPPORT AS | |
| 9. | 335-0608 | [4] | BURNER | |
| 10. | 339-1629 | [8] | CHANNEL AS | |
| 11. | 339-1632 | [4] | SUPPORT AS | |
| 12. | 7X-2553M | [12] | BOLT(M16X2X40-MM) | |
| 13. | 8T-4136M | [16] | BOLT(M10X1.5X25-MM) | |
| 14. | 8T-4200M | [16] | BOLT(M8X1.25X16-MM) | |
| 15. | 8T-4223 | [56] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 16. | 8T-4224 | [16] | WASHER-HARD(8.8X16X2-MM THK) | |
| 17. | 8T-4896 | [16] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 18. | 8T-4908M | [16] | BOLT(M8X1.25X25-MM) | |
| 19. | 9X-8257 | [12] | WASHER(17.5X30X3.5-MM THK) | |
| | | | QUANTITIES SHOWN ARE THOSE REQUIRED FOR BOTH LH & RH SIDES |
| | M | | METRIC PART |
