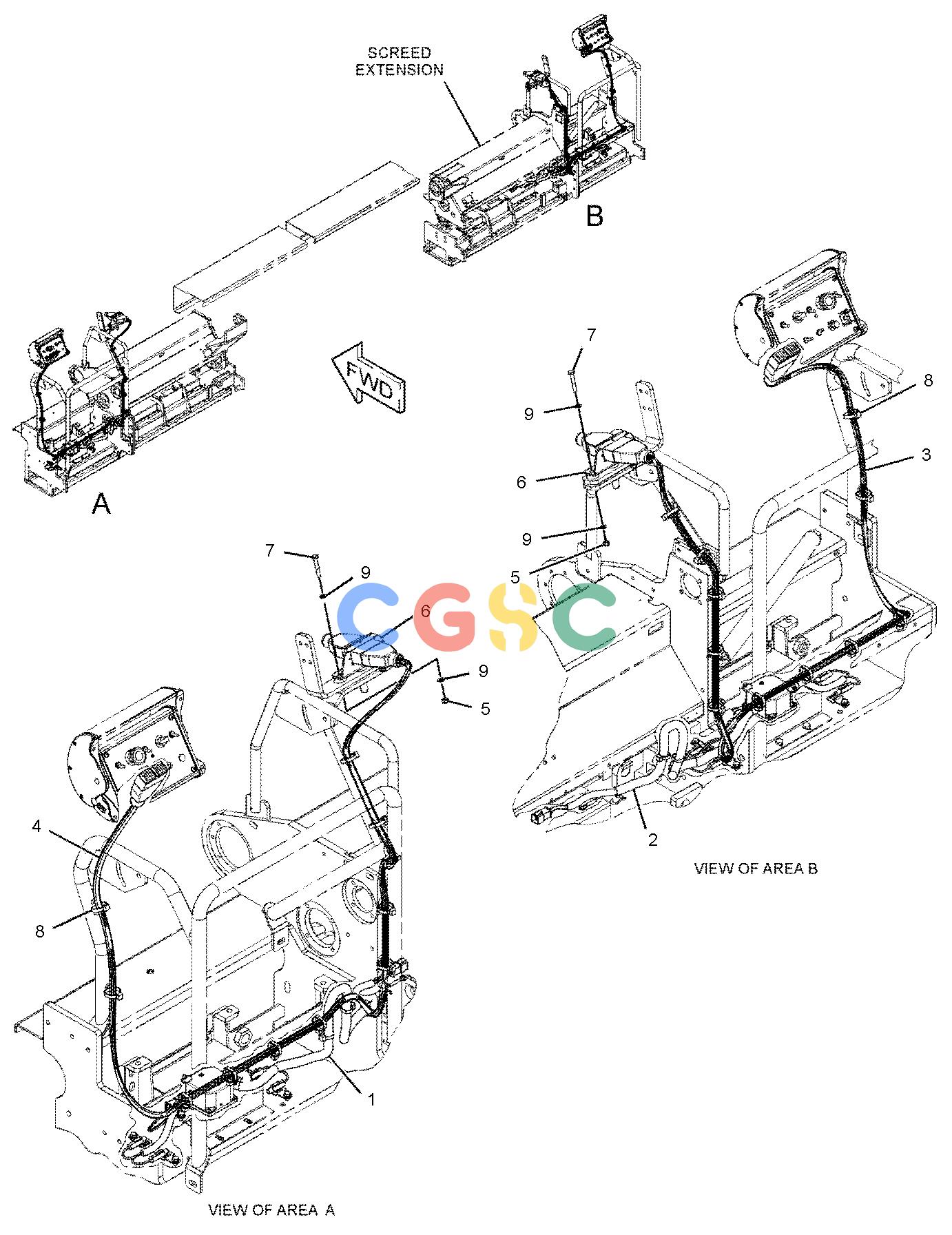

卡特零件查询（AP-655D） 319-7152: WIRING GP-SCREED HEATER
广数供应链运营团队, 17 02月, 2025，浏览：
503 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8T-8737 | [6] | PLUG-SEAL | |
| 2. | 116-0118 | [4] | CLIP | |
| 3. | 319-7154 | [1] | HARNESS AS-SCREED | |
| | 155-2274 | [1] | KIT-CONNECTING PLUG(6-PIN) | |
| | | | (INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 102-8805 | [1] | KIT-RECEPTACLE(6-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 144-1636 | [4] | PIN-CONNECTOR(14-GA TO 18-GA) | |
| | 129-7163 | [2] | PLUG AS-CONNECTOR(1-PIN) | |
| | 8T-8737 | [6] | PLUG-SEAL | |
| | 8N-1541 | [2] | SOCKET-CONNECTOR(12-GA TO 14-GA) | |
| | 180-9340 | [2] | SOCKET-CONNECTOR(14-GA TO 18-GA) | |
| | 2L-8069 | [1] | TERMINAL-RING(2-GA TO 10-GA, 3/8-IN SCREW) | |
| | 2L-8079 | [1] | TERMINAL-RING(14-GA TO 16-GA, 3/8-IN SCREW) | |
| | 160-2250G | | SLEEVE-ABRASION(18-IN) | |
| 4. | 102-8805 | [1] | KIT-RECEPTACLE(6-PIN) | |
| | | | (INCLUDE RECEPTACLE AS & WEDGE) |
| 5. | 5C-7261M | [2] | NUT(M8X1.25-THD) | |
| 6. | 6V-5218M | [1] | BOLT(M8X1.25X35-MM) | |
| 7. | 7K-1181 | [2] | STRAP-CABLE | |
| 8. | 8T-4224 | [5] | WASHER-HARD(8.8X16X2-MM THK) | |
| | G | | ORDER BY THE INCH |
| | M | | METRIC PART |
