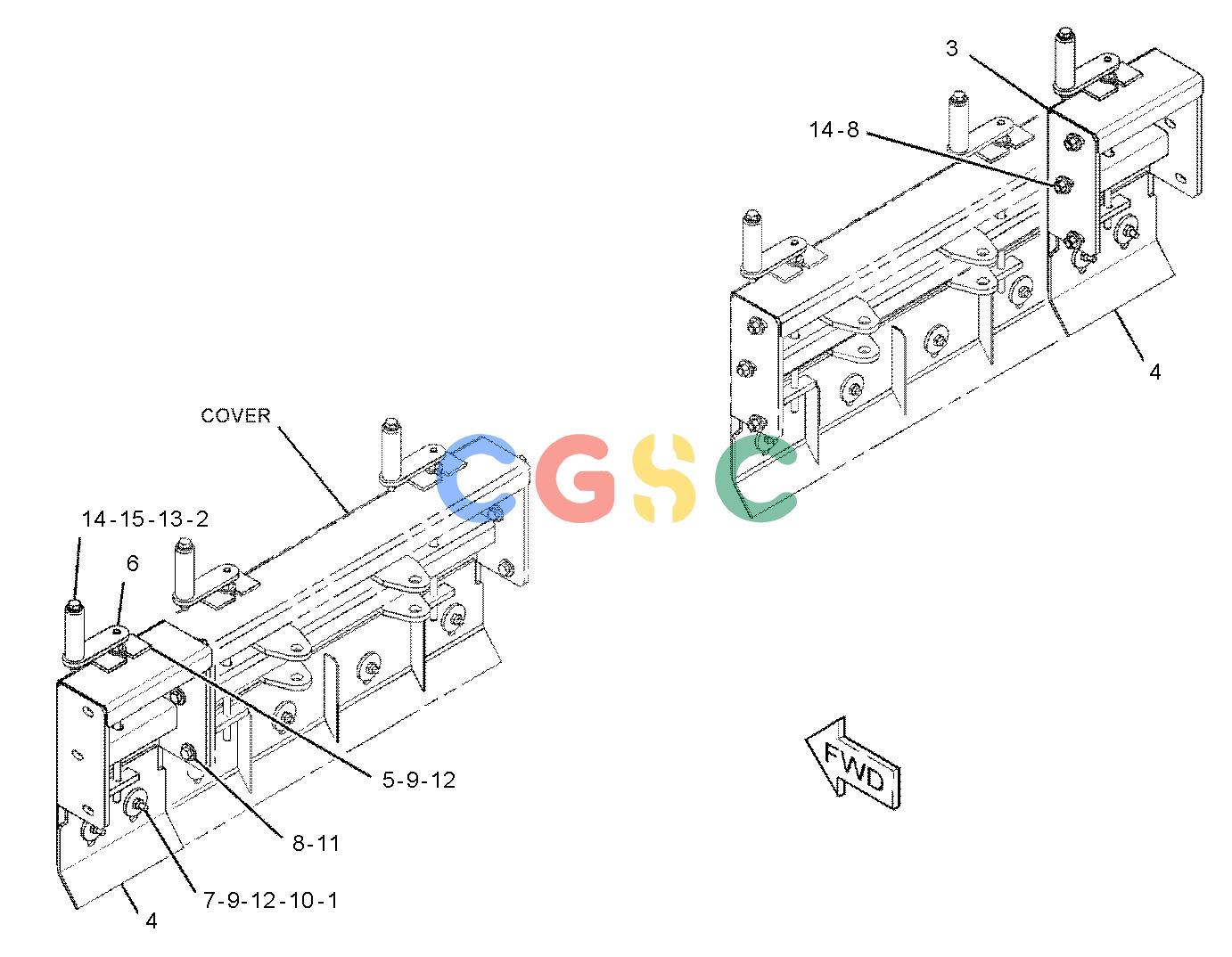

卡特零件查询（AP-655D） 359-1026: COVER GP
广数供应链运营团队, 17 02月, 2025，浏览：
850 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 9C-2979 | [4] | SPACER(10.5X16X7-MM THK) | |
| 2. | 249-0924 | [2] | HANDLE | |
| 3. | 387-1363 | [2] | COVER AS | |
| 4. | 353-9549 | [2] | GATE AS | |
| 5. | 359-7600 | [2] | PLATE | |
| 6. | 361-9391 | [2] | ROD AS-ADJUSTING | |
| 7. | 115-6433 | [4] | WASHER(11X50X6-MM THK) | |
| 8. | 5P-1076 | [12] | WASHER-HARD(13.5X30X4-MM THK) | |
| 9. | 7X-7729 | [8] | WASHER(11X25X3-MM THK) | |
| 10. | 8T-0389M | [4] | LOCKNUT(M10X1.5-THD) | |
| 11. | 8T-4183M | [6] | BOLT(M12X1.75X40-MM) | |
| 12. | 8T-4196M | [8] | BOLT(M10X1.5X35-MM) | |
| 13. | 8T-4223 | [2] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 14. | 8T-4244M | [8] | NUT(M12X1.75-THD) | |
| 15. | 8T-5001M | [2] | BOLT(M12X1.75X130-MM) | |
| | M | | METRIC PART |
