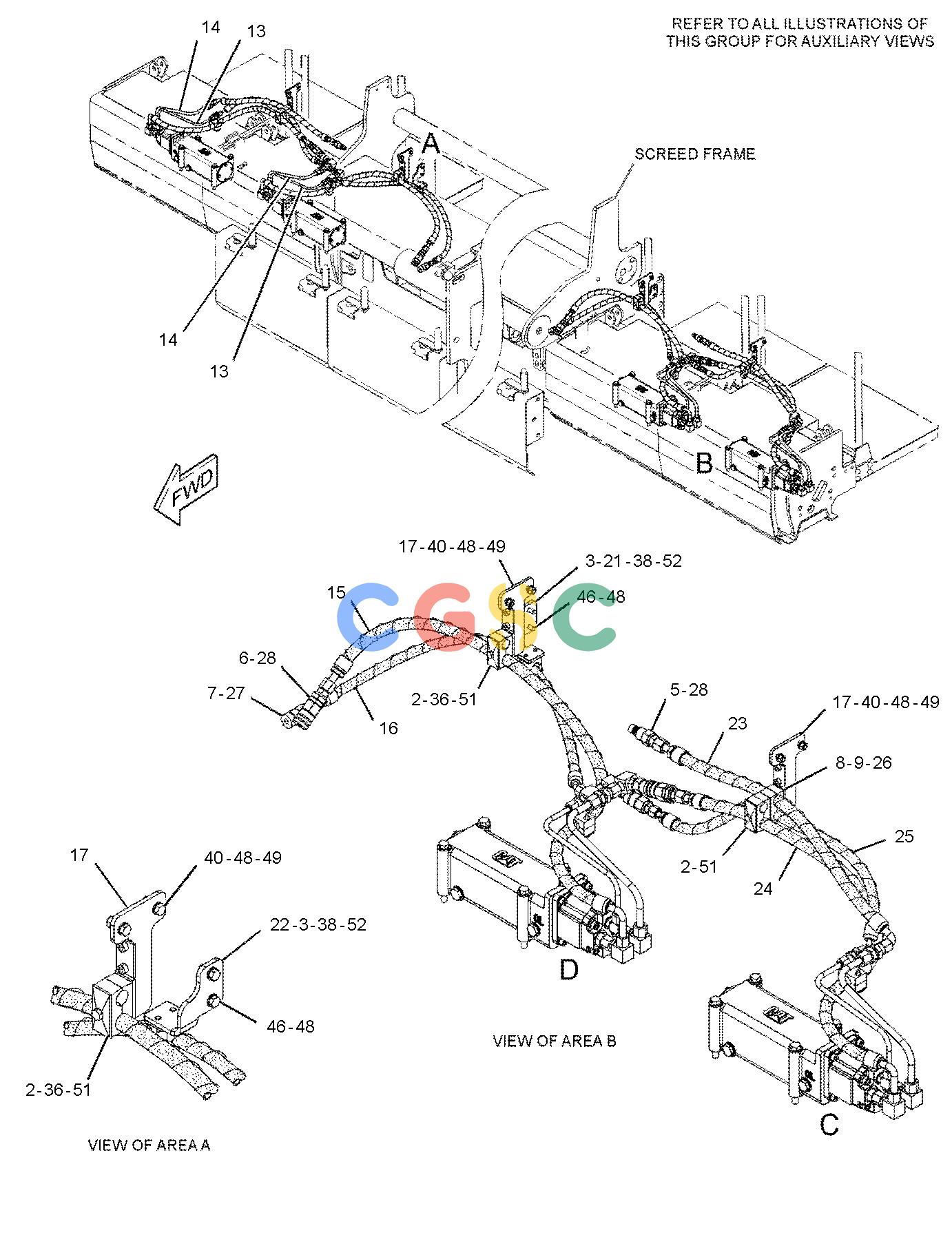

卡特零件查询（AP-655D） 359-0123: LINES GP-VIBRATORY
广数供应链运营团队, 17 02月, 2025，浏览：
243 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7V-5628 | [4] | PLATE | |
| 2. | 102-8705 | [4] | PLATE(TOP) | |
| 3. | 107-4749 | [2] | PLATE | |
| 4. | 152-8181 | [2] | FITTING(QUICK DISCONNECT, MALE) | |
| 5. | 153-2996 | [4] | FITTING AS(QUICK DISCONNECT, MALE) | |
| 6. | 153-2997 | [4] | FITTING AS(QUICK DISCONNECT, FEMALE) | |
| 7. | 204-5098 | [4] | FITTING AS(QUICK DISCONNECT, FEMALE) | |
| 8. | 206-0451M | [2] | BOLT-STACKING(M8X1.25X44-MM) | |
| 9. | 206-0452 | [2] | PLATE | |
| 10. | 242-2759 | [4] | ADAPTER | |
| 11. | 242-2797 | [4] | COUPLING | |
| 12. | 285-9947Y | [4] | HOUSING GP-ECCENTRIC WEIGHT | |
| 13. | 356-4808 | [2] | TUBE AS | |
| 14. | 356-4809 | [2] | TUBE AS | |
| 15. | 356-4810I | [2] | HOSE AS | |
| 16. | 356-4811I | [2] | HOSE AS | |
| 17. | 356-4832 | [4] | BRACKET AS | |
| 18. | 357-2887Y | [4] | MOTOR GP-GEAR(VIBRATORY) | |
| 19. | 358-8268 | [2] | TUBE AS | |
| 20. | 358-8269 | [2] | TUBE AS | |
| 21. | 358-8395 | [1] | BRACKET AS | |
| 22. | 358-8396 | [1] | BRACKET AS | |
| 23. | 359-1049I | [2] | HOSE AS | |
| 24. | 359-1050I | [2] | HOSE AS | |
| 25. | 359-1051I | [2] | HOSE AS | |
| 26. | 143-9157 | [8] | CLAMP-DOUBLE | |
| 27. | 148-8336 | [4] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8636 | [1] | CONNECTOR | |
| 28. | 148-8340 | [6] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8639 | [1] | CONNECTOR | |
| 29. | 148-8345 | [8] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8638 | [1] | CONNECTOR | |
| 30. | 148-8370 | [8] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-9851 | [1] | ELBOW | |
| 31. | 148-8378 | [4] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8724 | [1] | ELBOW | |
| 32. | 148-8457 | [4] | UNION AS(STRAIGHT) | |
| | | | (EACH INCLUDES) |
| | 6V-8398 | [2] | SEAL-O-RING | |
| | 6V-8995 | [1] | UNION(STRAIGHT) | |
| 33. | 149-5452 | [2] | UNION AS(STRAIGHT) | |
| | | | (EACH INCLUDES) |
| | 6V-8397 | [2] | SEAL-O-RING | |
| | 6V-8994 | [1] | UNION(STRAIGHT) | |
| 34. | 150-4050 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 8T-0788 | [1] | ELBOW | |
| 35. | 153-6246 | [2] | TEE AS | |
| | | | (EACH INCLUDES) |
| | 6V-8397 | [3] | SEAL-O-RING | |
| | 7X-0820 | [1] | TEE | |
| 36. | 8V-5718 | [4] | CLAMP | |
| 37. | 171-6728 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 8T-0249 | [1] | ELBOW(SWIVEL) | |
| 38. | 206-6419 | [4] | CLAMP-HALF | |
| 39. | 242-2815 | [4] | SEAL-O-RING | |
| 40. | 5C-7261M | [8] | NUT(M8X1.25-THD) | |
| 41. | 5P-8065 | [4] | SEAL-O-RING | |
| 42. | 289-9555M | [16] | BOLT-SOCKET HEAD(M8X1.25X30-MM) | |
| 43. | 6V-9168 | [4] | NUT(11/16-16-THD) | |
| 44. | 6V-9169 | [4] | NUT(13/16-16-THD) | |
| 45. | 7R-7908 | [8] | CLAMP | |
| 46. | 8T-4189M | [4] | BOLT(M8X1.25X20-MM) | |
| 47. | 8T-4223 | [16] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 48. | 8T-4224 | [36] | WASHER-HARD(8.8X16X2-MM THK) | |
| 49. | 8T-4908M | [8] | BOLT(M8X1.25X25-MM) | |
| 50. | 8T-5001M | [16] | BOLT(M12X1.75X130-MM) | |
| 51. | 8T-6912M | [4] | BOLT(M8X1.25X50-MM) | |
| 52. | 9X-2480M | [12] | BOLT(M6X1X45-MM) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
