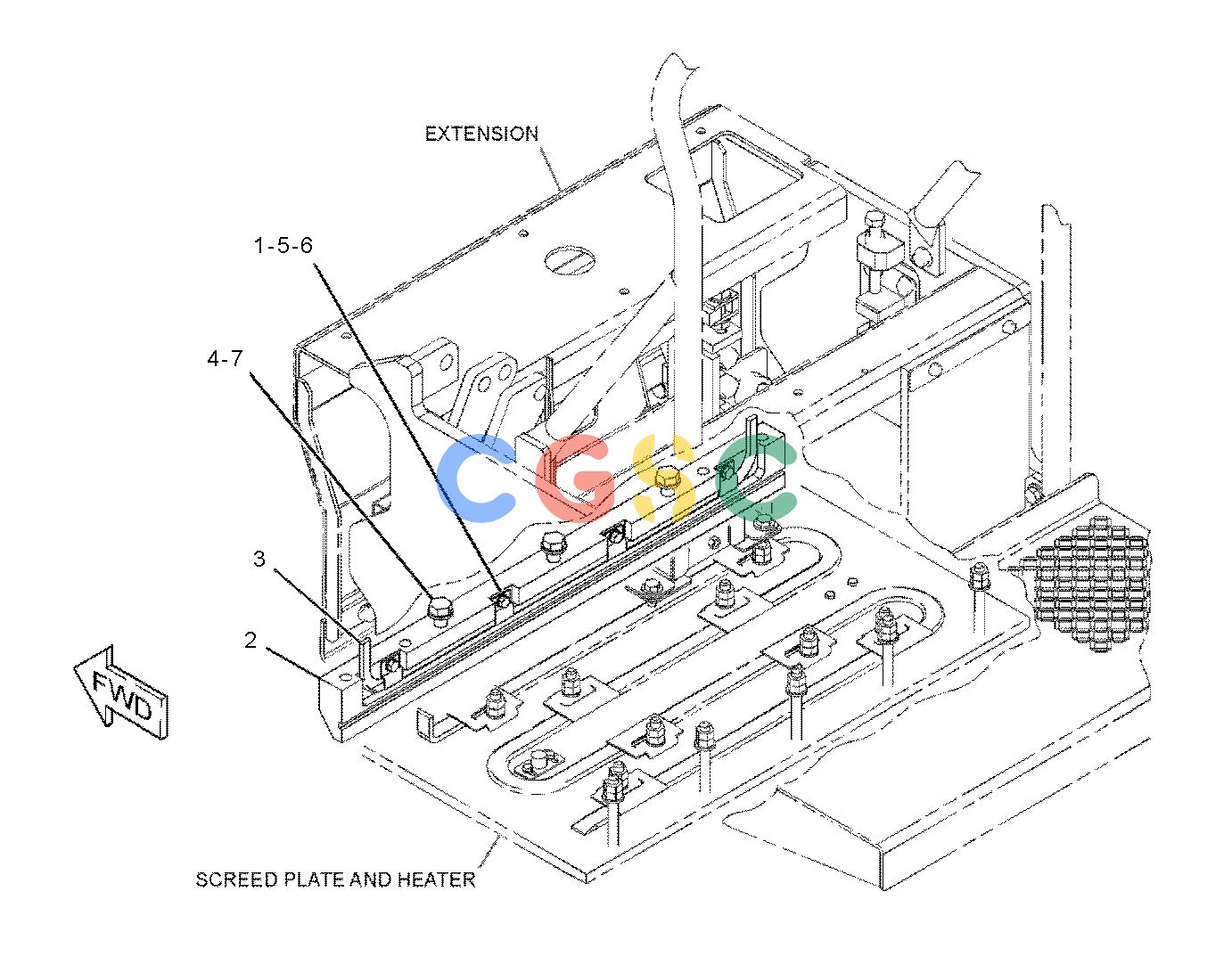

卡特零件查询（AP-655D） 287-2280: BLADE & HEATER GP-TAMPER
广数供应链运营团队, 17 02月, 2025，浏览：
364 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 272-4935 | [22] | CLAMP | |
| 2. | 286-3611 | [1] | BLADE(MAIN, LH) | |
| 3. | 286-3612 | [1] | BLADE(MAIN, RH) | |
| 4. | 286-3613 | [1] | BLADE(EXTENDER, LH) | |
| 5. | 286-3614 | [1] | BLADE(EXTENDER, RH) | |
| 6. | 309-1506 | [4] | HEATER AS(SCREED) | |
| | | | (EACH INCLUDES) |
| | 129-7164 | [2] | RECEPTACLE AS-CONNECTOR(1-PIN) | |
| 7. | 8T-4224 | [22] | WASHER-HARD(8.8X16X2-MM THK) | |
| 8. | 8T-4779M | [16] | BOLT(M16X2X35-MM) | |
| 9. | 8T-4908M | [22] | BOLT(M8X1.25X25-MM) | |
| 10. | 9X-8257 | [16] | WASHER(17.5X30X3.5-MM THK) | |
| | M | | METRIC PART |
