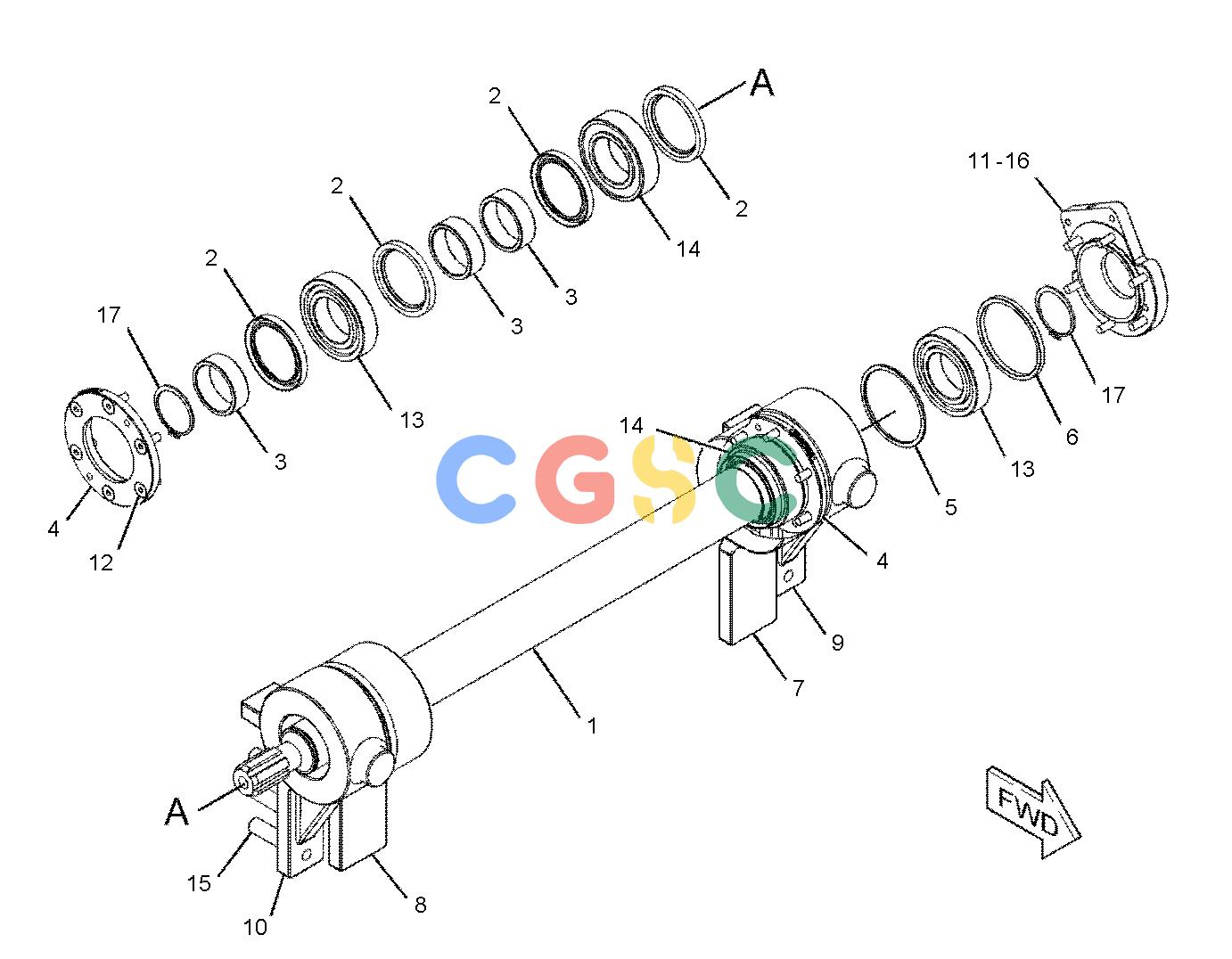

卡特零件查询（AP-655D） 350-9127: TAMPER GP-SCREED
广数供应链运营团队, 17 02月, 2025，浏览：
837 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 242-2680 | [1] | SHAFT AS-DRIVE | |
| 2. | 242-2813 | [7] | SEAL-SHAFT | |
| 3. | 242-2903 | [7] | RING | |
| 4. | 242-2906 | [3] | COVER | |
| 5. | 242-2907 | [1] | RING | |
| 6. | 242-2908 | [1] | RING | |
| 7. | 350-9131 | [1] | SUPPORT(RH) | |
| 8. | 350-9132 | [1] | SUPPORT(LH) | |
| 9. | 350-9135 | [1] | SUPPORT(LH) | |
| 10. | 350-9139 | [1] | SUPPORT(RH) | |
| 11. | 358-1246 | [1] | FLANGE | |
| 12. | 188-9644M | [18] | SCREW-FLAT HEAD(M8X1.25X25-MM) | |
| 13. | 1T-0043 | [2] | BALL BEARING | |
| 14. | 244-2296 | [2] | BALL BEARING | |
| 15. | 365-4092 | [6] | STUD(M16X2X85-MM) | |
| 16. | 209-8296M | [6] | BOLT-SOCKET HEAD(M8X1.25X25-MM) | |
| 17. | 8T-4241 | [2] | RING-RETAINING(EXTERNAL) | |
| | M | | METRIC PART |
