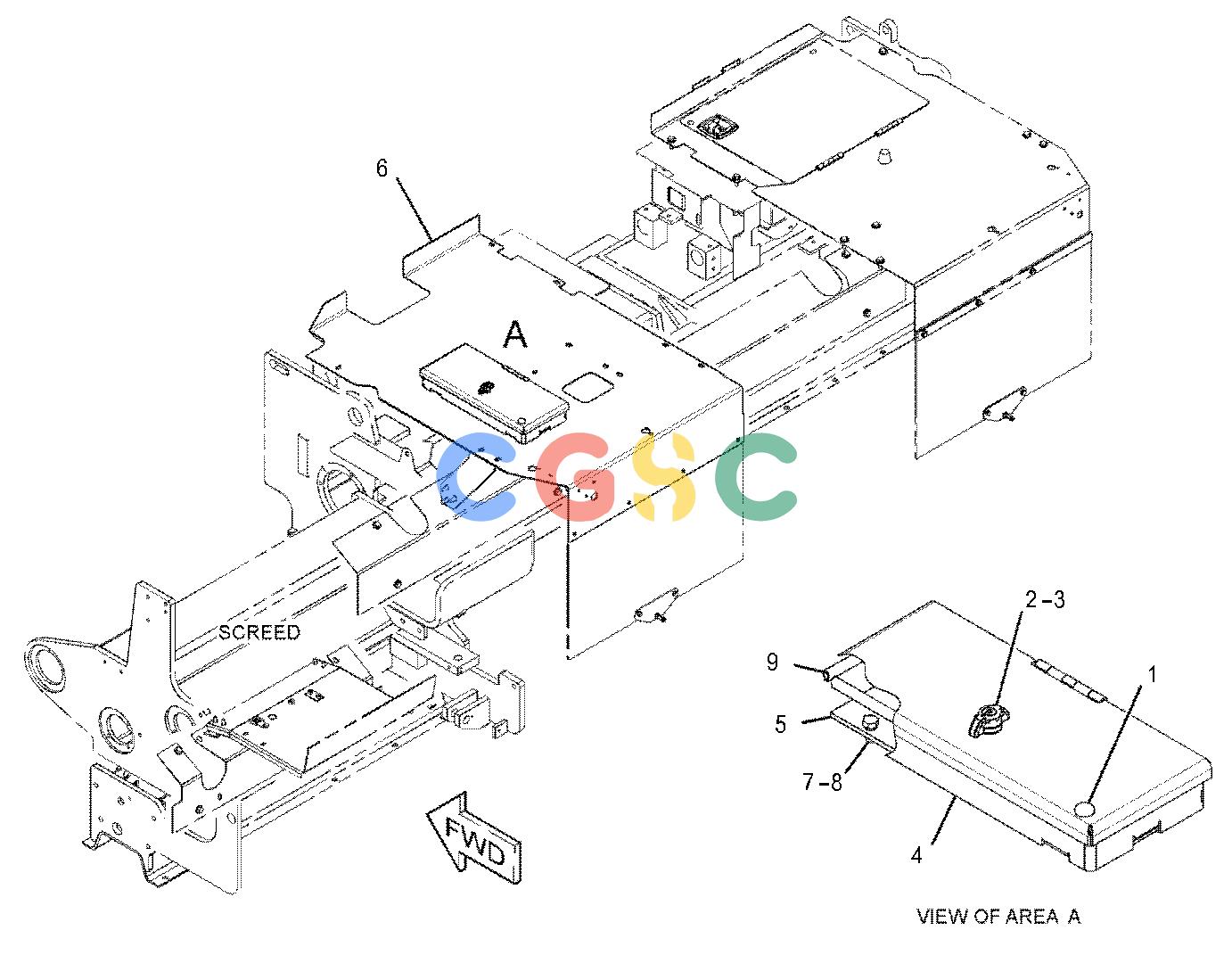

卡特零件查询（AP-655D） 378-6620: COVER GP
广数供应链运营团队, 17 02月, 2025，浏览：
932 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 111-1777 | [1] | BUMPER-RUBBER | |
| 2. | 275-0572J | [1] | LATCH AS | |
| 3. | 319-2305 | [1] | CAM-LATCH | |
| 4. | 378-6614 | [1] | BOX AS | |
| 5. | 378-6618 | [1] | SHEET-RUBBER | |
| 6. | 378-7684 | [1] | COVER AS(LH) | |
| | 7T-1099 | [3] | LINK | |
| | 8T-3490M | [7] | NUT-WELD(M10X1.5-THD) | |
| | 8T-3612M | [4] | NUT-WELD(M8X1.25-THD) | |
| | 8X-2779 | [2] | BOSS | |
| | 130-5300 | [2] | CLIP | |
| 7. | 7X-7729 | [4] | WASHER(11X25X3-MM THK) | |
| 8. | 8T-4137M | [4] | BOLT(M10X1.5X20-MM) | |
| 9. | 7X-7877E | | STRIP-EDGE(17-CM EACH) | |
| | E | | ORDER BY THE CENTIMETER |
| | J | | REQUIRES CORPORATE KEY |
| | M | | METRIC PART |
