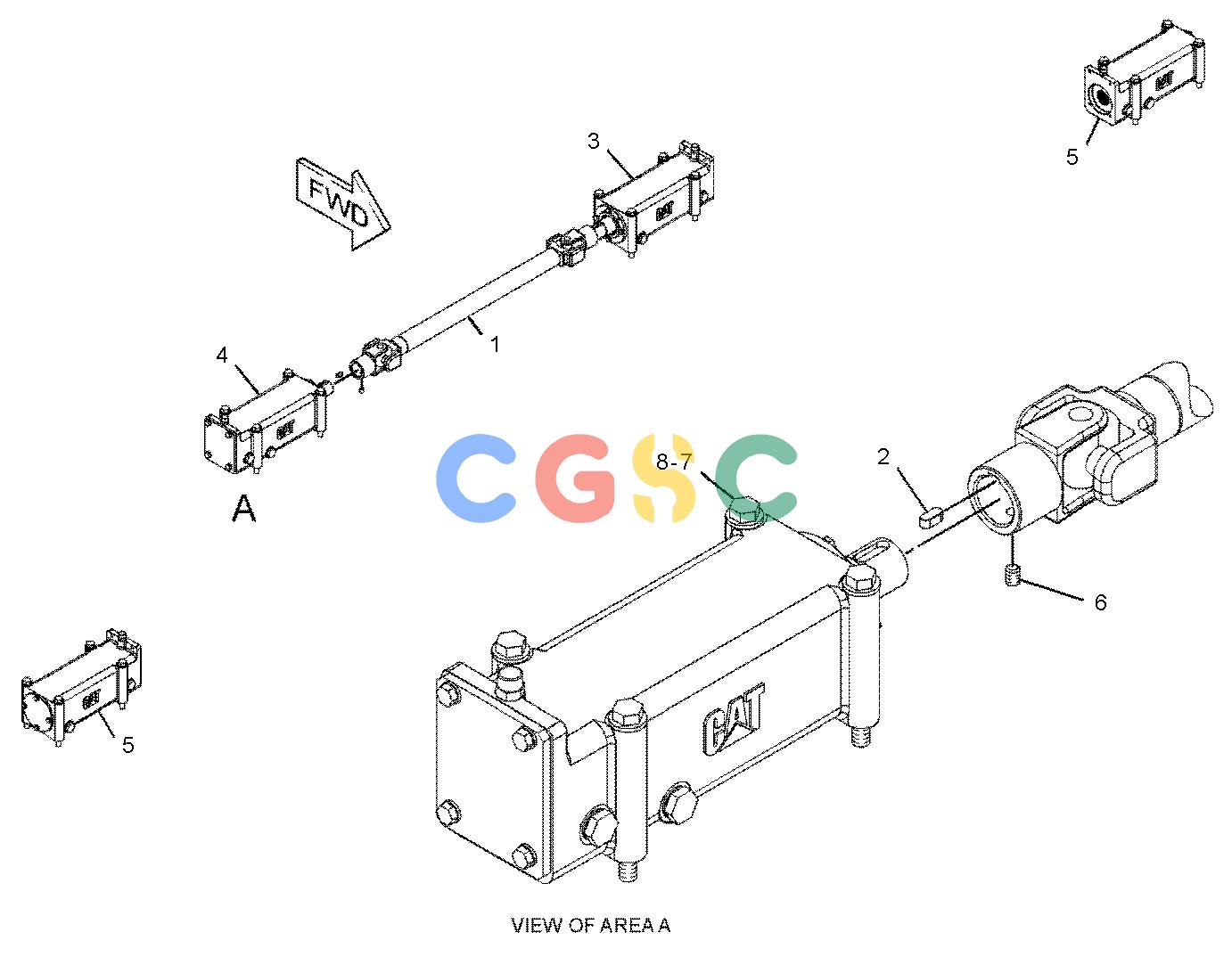

卡特零件查询（AP-655D） 263-2536: VIBRATORY GP
广数供应链运营团队, 17 02月, 2025，浏览：
542 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 242-2705 | [1] | SHAFT GP-VIBRATORY | |
| 2. | 243-2636 | [2] | KEY-RECTANGULAR(SQUARE) | |
| 3. | 263-5149Y | [1] | HOUSING GP-ECCENTRIC WEIGHT(MAIN, LH) | |
| 4. | 263-5150Y | [1] | HOUSING GP-ECCENTRIC WEIGHT(MAIN, RH) | |
| 5. | 263-5151Y | [2] | HOUSING GP-ECCENTRIC WEIGHT(EXTENSION) | |
| 6. | 095-1267M | [2] | SETSCREW-SOCKET(M10X1.5-THD) | |
| 7. | 8T-4223 | [16] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 8. | 8T-5001M | [16] | BOLT(M12X1.75X130-MM) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
