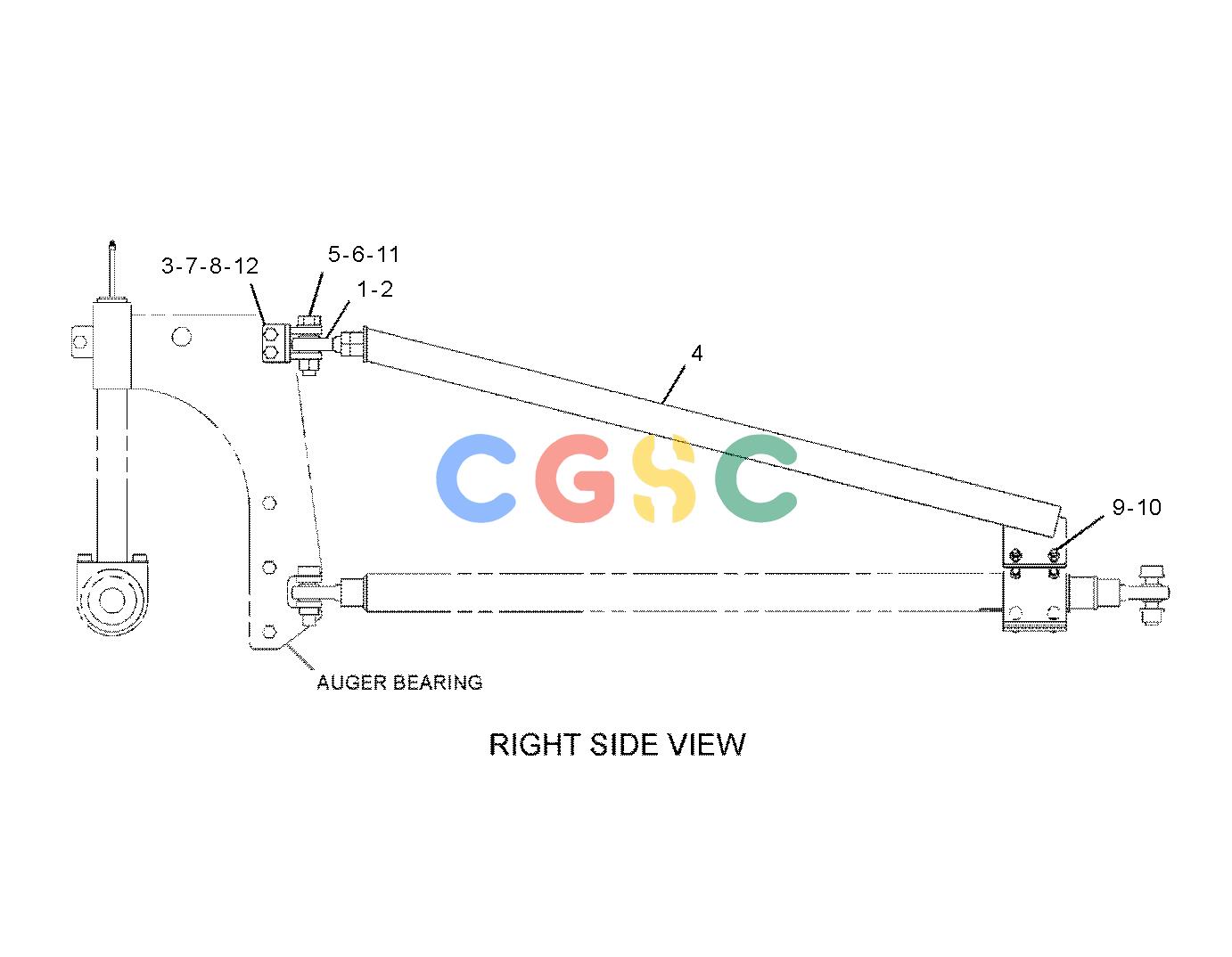

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 1A-4168 | [1] | NUT(1-1/4-12-THD) | |
| 2. | 8T-4401 | [1] | BEARING | |
| 3. | 315-1102 | [1] | PLATE AS | |
| 4. | 350-6040 | [1] | TUBE AS-BRACE | |
| 5. | 6V-8190 | [1] | NUT(1-8-THD) | |
| 6. | 7X-0410 | [1] | BOLT(1-8X4-IN) | |
| 7. | 8T-4122 | [2] | WASHER-HARD(17X32X3.5-MM THK) | |
| 8. | 8T-4132M | [2] | NUT(M16X2-THD) | |
| 9. | 8T-4244M | [2] | NUT(M12X1.75-THD) | |
| 10. | 8T-4910M | [2] | BOLT(M12X1.75X60-MM) | |
| 11. | 8T-5361 | [1] | WASHER-HARD(28X49X5-MM THK) | |
| 12. | 8T-7338M | [2] | BOLT(M16X2X45-MM) | |
| M | METRIC PART | |||
