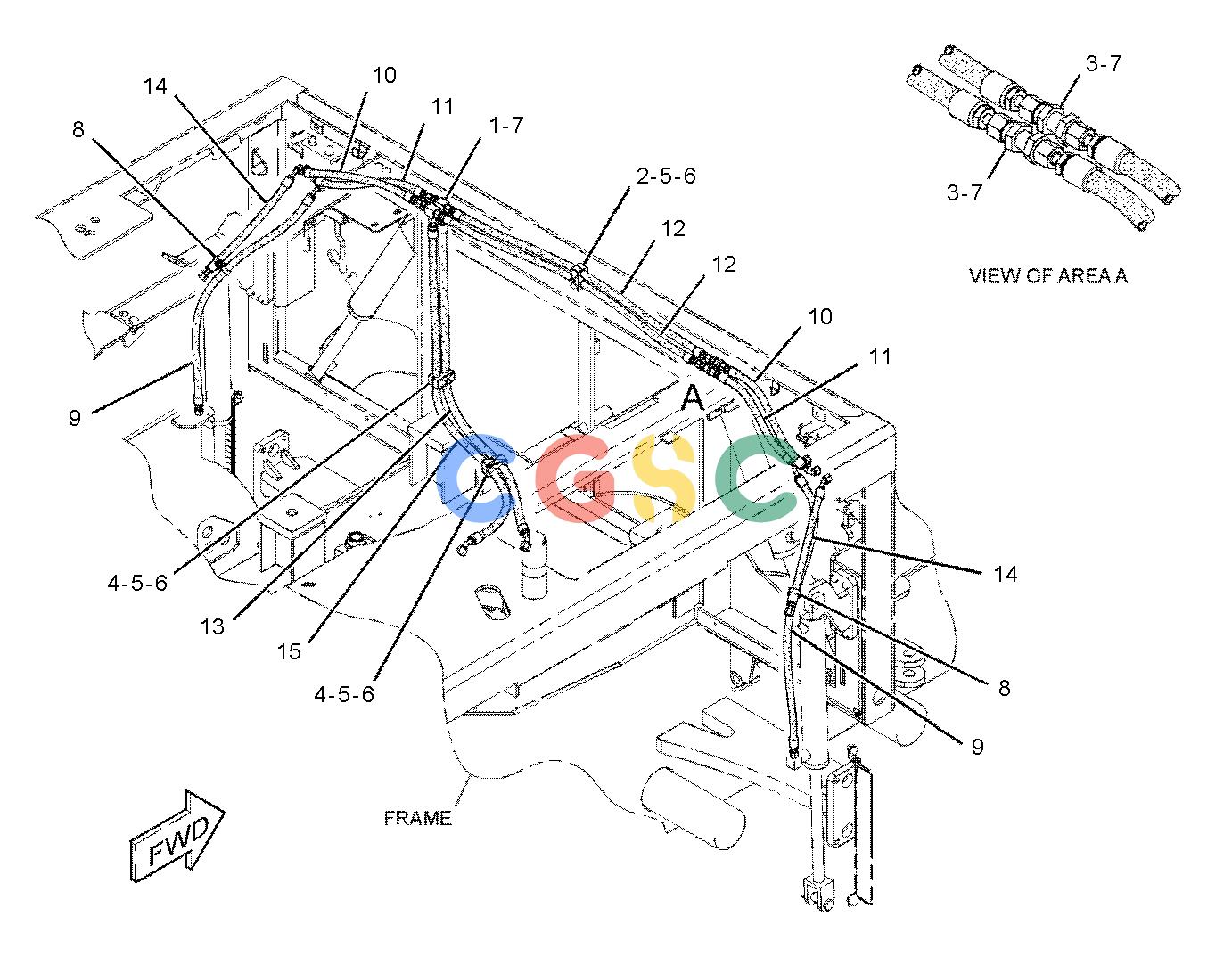

卡特零件查询（AP-655D） 276-4805: LINES GP-GRADE & SLOPE
广数供应链运营团队, 17 02月, 2025，浏览：
823 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 153-6246 | [2] | TEE AS | |
| | | | (EACH INCLUDES) |
| | 6V-8397 | [3] | SEAL-O-RING | |
| | 7X-0820 | [1] | TEE | |
| 2. | 4V-0611 | [2] | CLAMP | |
| 3. | 213-2265 | [2] | UNION AS | |
| | | | (EACH INCLUDES) |
| | 6V-8397 | [2] | SEAL-O-RING | |
| | 150-0128 | [1] | UNION | |
| 4. | 8V-5718 | [4] | CLAMP | |
| 5. | 102-8705 | [3] | PLATE(TOP) | |
| 6. | 7X-0818M | [3] | BOLT(M8X1.25X45-MM) | |
| 7. | 6V-9168 | [4] | NUT(11/16-16-THD) | |
| 8. | 177-2215 | [2] | STRAP-DUAL CLAMP | |
| 9. | 280-2260I | [2] | HOSE AS | |
| 10. | 153-8307I | [2] | HOSE AS | |
| 11. | 7R-6202I | [2] | HOSE AS | |
| 12. | 270-4063I | [2] | HOSE AS | |
| 13. | 271-5242I | [1] | HOSE AS | |
| 14. | 128-2756I | [2] | HOSE AS | |
| 15. | 277-7813I | [1] | HOSE AS | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
