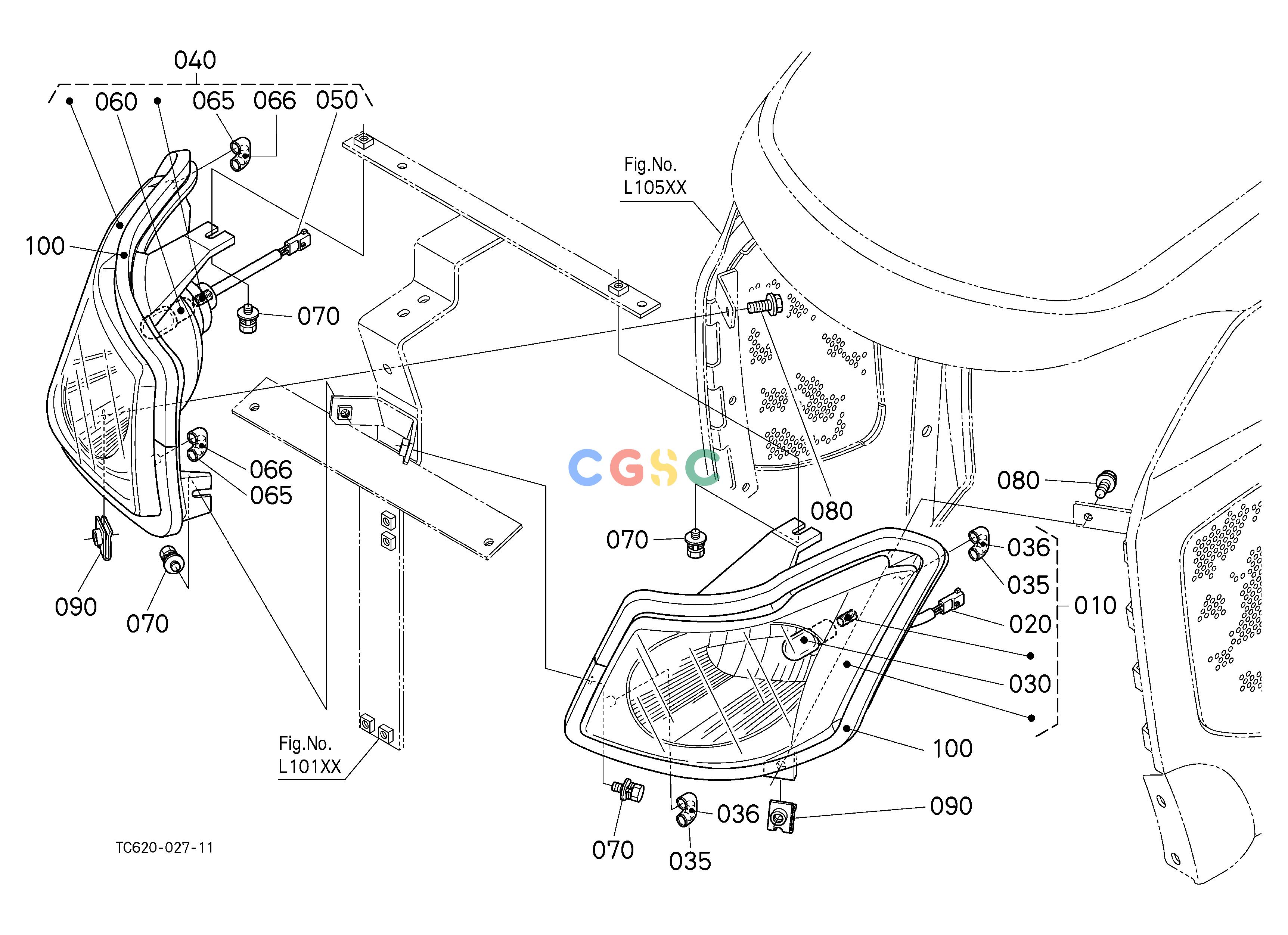

久保田零件查询B30300 HEAD LAMP ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
473 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TC42230015
|
[1] |
ASSY.LIGHT,HEAD LH
|
1.1000(lbs); 0.500
|
| 010. |
TC42230016
|
[1] |
ASSY.LIGHT,HEAD LH
|
1.1000(lbs); 0.500
|
| 020. |
TC42230042
|
[1] |
WIRE HARNESS,H-LIGHT
|
0.0550(lbs); 0.025
|
| 030. |
TC42230050
|
[1] |
BULB,LIGHT 25/25W
|
0.0440(lbs); 0.020
|
| 035. |
TC42230080
|
[2] |
TUBE,FILTER
|
0.0022(lbs); 0.001
|
| 036. |
TC42230092
|
[2] |
FILTER
|
0.0022(lbs); 0.001
|
| 040. |
TC42230025
|
[1] |
ASSY.LIGHT,HEAD RH
|
1.1000(lbs); 0.500
|
| 040. |
TC42230026
|
[1] |
ASSY.LIGHT,HEAD RH
|
1.1000(lbs); 0.500
|
| 050. |
TC42230042
|
[1] |
WIRE HARNESS,H-LIGHT
|
0.0550(lbs); 0.025
|
| 060. |
TC42230050
|
[1] |
BULB,LIGHT 25/25W
|
0.0440(lbs); 0.020
|
| 065. |
TC42230080
|
[2] |
TUBE,FILTER
|
0.0022(lbs); 0.001
|
| 066. |
TC42230092
|
[2] |
FILTER
|
0.0022(lbs); 0.001
|
| 070. |
0102750616
|
[4] |
BOLT,W SEMS(LARGE WASHER)
|
0.0220(lbs); 0.010
|
| 080. |
0175450616
|
[2] |
BOLT,FLANGE
|
0.0132(lbs); 0.006
|
| 090. |
TC40283490
|
[2] |
NUT,SPRING
|
0.0044(lbs); 0.002
|
| 100. |
TC42040690
|
[2] |
SPONGE,HEAD LIGHT
|
0.0330(lbs); 0.015
|
