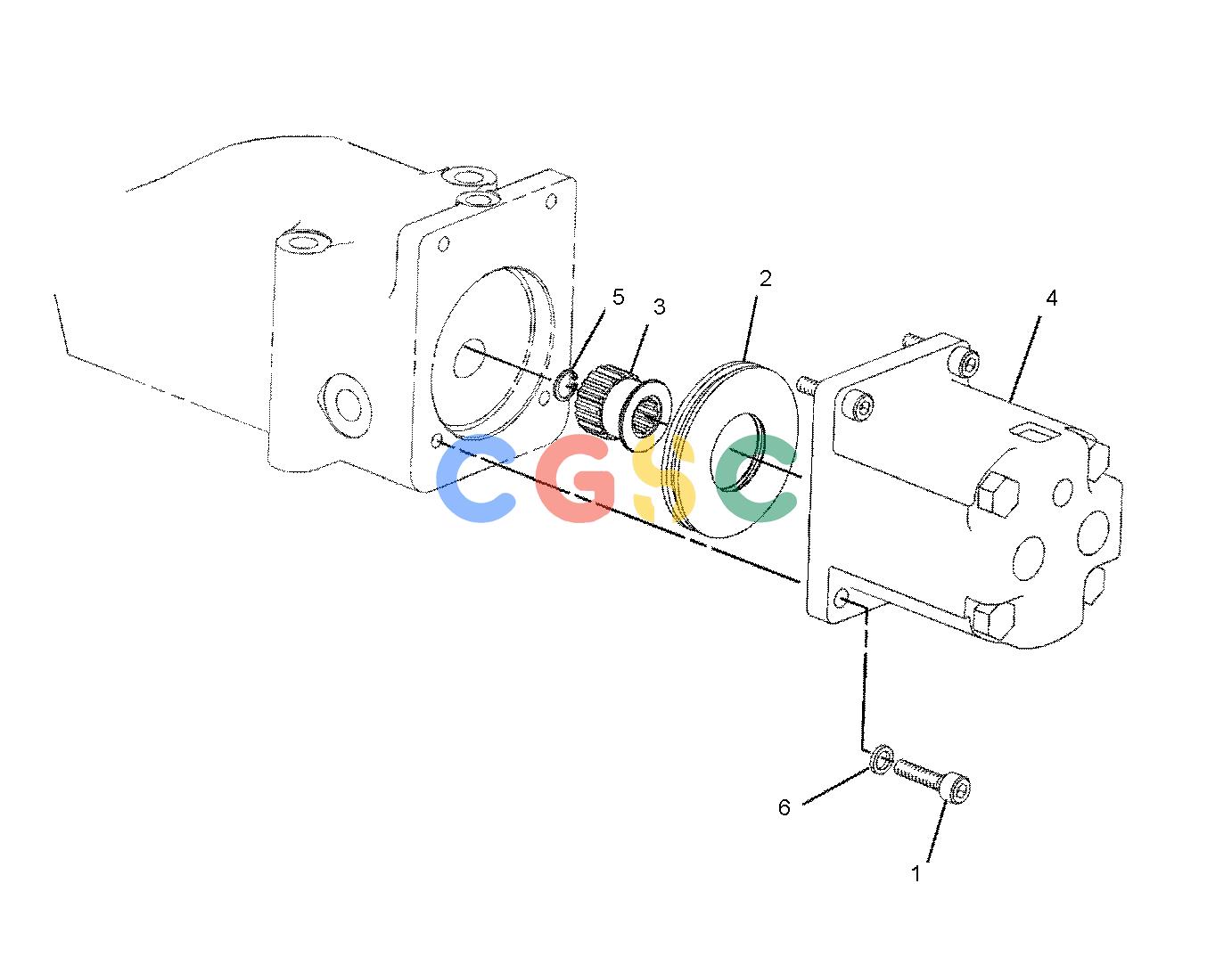

卡特零件查询（AP-655D） 263-5148: MOTOR & MTG GP-VIBRATORY
广数供应链运营团队, 17 02月, 2025，浏览：
785 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 171-2039M | [4] | BOLT-SOCKET HEAD(M8X1.25X30-MM) | |
| 2. | 242-2749Y | [1] | ADAPTER GP-MOTOR | |
| 3. | 242-2797 | [1] | COUPLING | |
| 4. | 258-7156J | [1] | MOTOR GP-GEAR(VIBRATORY) | |
| | 421-5596J | [1] | SEAL-LIP TYPE | |
| 5. | 095-0932 | [1] | RING-RETAINING | |
| 6. | 8T-4224 | [4] | WASHER-HARD(8.8X16X2-MM THK) | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 420-4588J | [1] | KIT-SEAL | |
| | | | (INCLUDES BACKING RINGS, PRESSURE SEALS & O-RING SEALS) |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
