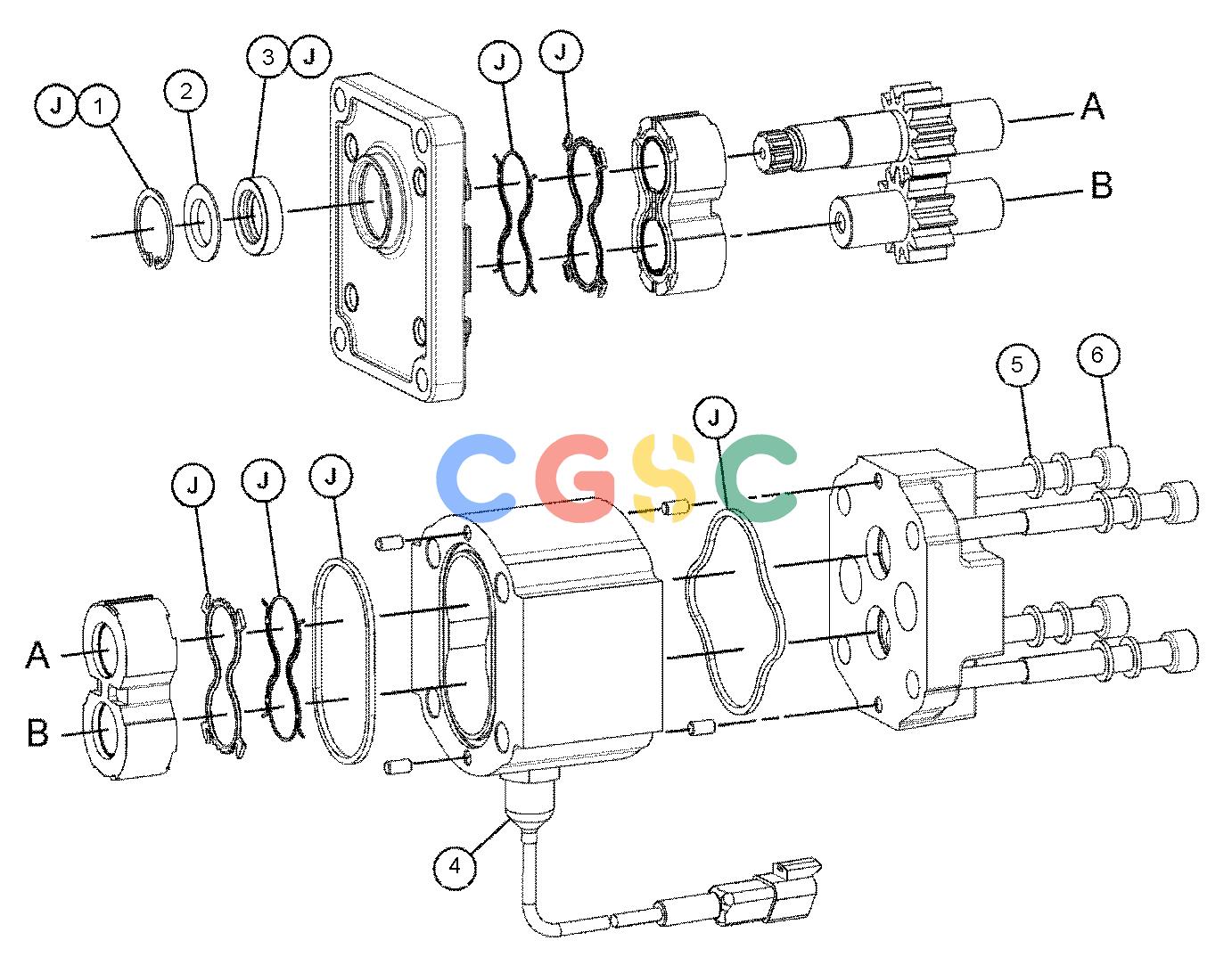

卡特零件查询（AP-655D） 368-9118: MOTOR GP-GEAR
广数供应链运营团队, 17 02月, 2025，浏览：
578 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 199-7560J | [1] | RING-RETAINING | |
| 2. | 369-7900 | [1] | WASHER-BACKUP | |
| 3. | 369-7901J | [1] | SEAL-LIP TYPE | |
| 4. | 278-8713 | [1] | SENSOR-SPEED(GEAR MOTOR) | |
| 5. | 7X-0608 | [8] | WASHER-HARD(10.2X16X2-MM THK) | |
| 6. | 192-7636M | [4] | BOLT-SOCKET HEAD(M10X1.5X95-MM) | |
| | | | |
| | | | PARTS SHOWN IN GRAPHIC(S) WITHOUT A REFERENCE NUMBER ARE NOT SERVICED SEPARATELY |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 380-5955J | [1] | KIT-SEAL | |
| | | | (ALSO INCLUDES PARTS MARKED "J" IN THE GRAPHIC) |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | M | | METRIC PART |
