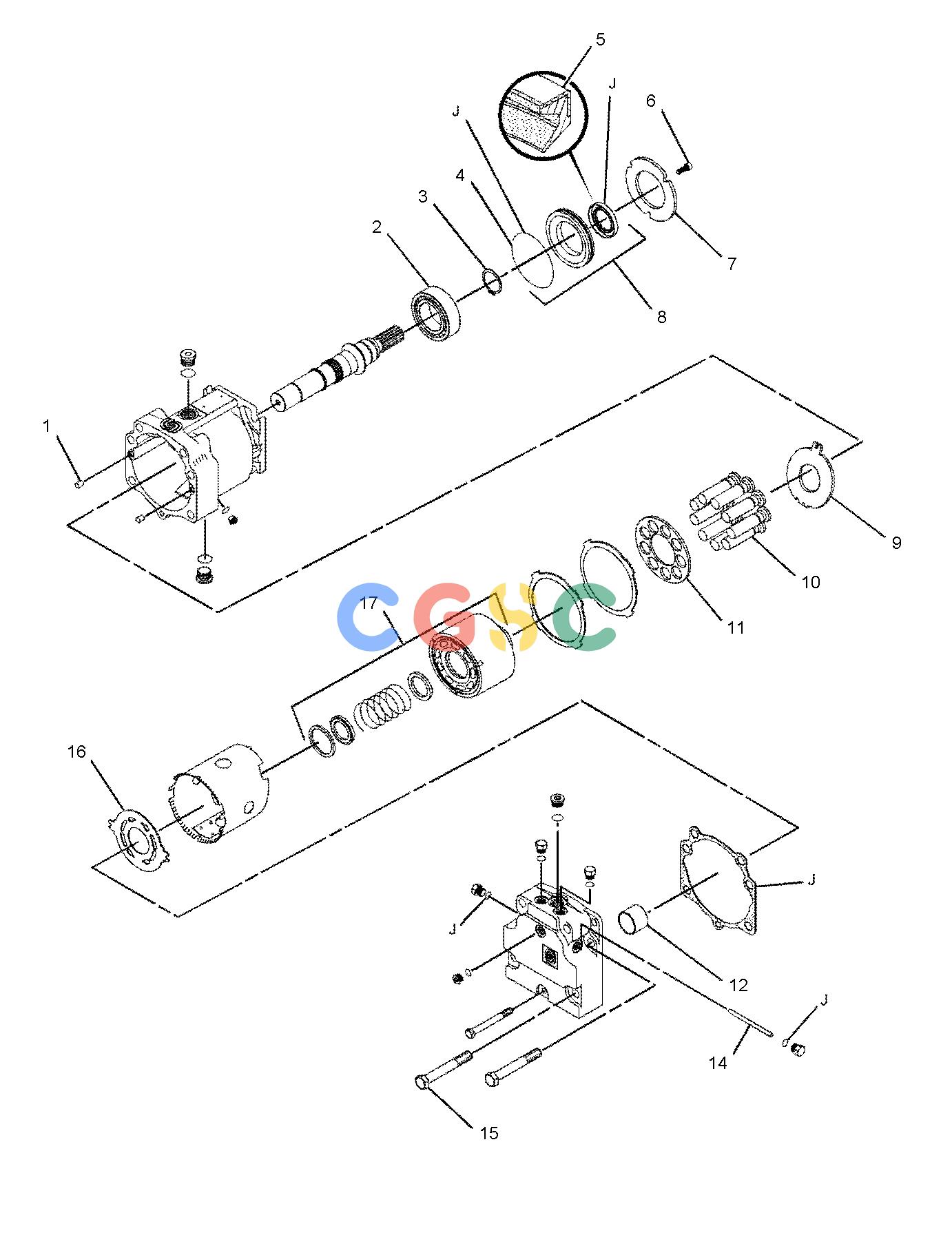

卡特零件查询（AP-655D） 310-8545: MOTOR GP-PISTON
广数供应链运营团队, 17 02月, 2025，浏览：
532 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 077-8353 | [2] | PIN(SPRING) | |
| 2. | 260-7515 | [1] | BEARING-ROLLER | |
| 3. | 1J-6474 | [1] | RING-RETAINING(EXTERNAL) | |
| 4. | 5E-8770J | [1] | SEAL-O-RING | |
| 5. | 5E-8789J | [1] | SEAL-LIP TYPE | |
| 6. | 8T-4138M | [3] | BOLT(M6X1X20-MM) | |
| 7. | 5E-8731 | [1] | PLATE | |
| 8. | 391-7088 | [1] | KIT-CARRIER | |
| | | | (INCLUDES SEAL CARRIER AS & PLATE RETAINER) |
| 9. | 276-5348 | [1] | PLATE-THRUST | |
| 10. | 109-7784 | [9] | PISTON | |
| 11. | 5E-8702 | [1] | GUIDE | |
| 12. | 5E-8744 | [1] | BEARING | |
| 14. | 111-1365 | [1] | VALVE-FLUSHING | |
| 15. | 113-1034 | [6] | BOLT | |
| 16. | 276-5347 | [1] | PLATE-VALVE | |
| 17. | 5E-8726 | [1] | KIT-CYLINDER BLOCK | |
| | | | (INCLUDES SPRING SEAT, SPRING, SPRING RETAINER & RETAINING RING) |
| | | | PARTS SHOWN IN GRAPHIC(S) WITHOUT A REFERENCE NUMBER ARE NOT SERVICED SEPARATELY |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 112-9287J | [1] | KIT-OVERHAUL SEAL | |
| | | | (INCLUDES PARTS MARKED J IN THE GRAPHICS) |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | M | | METRIC PART |
