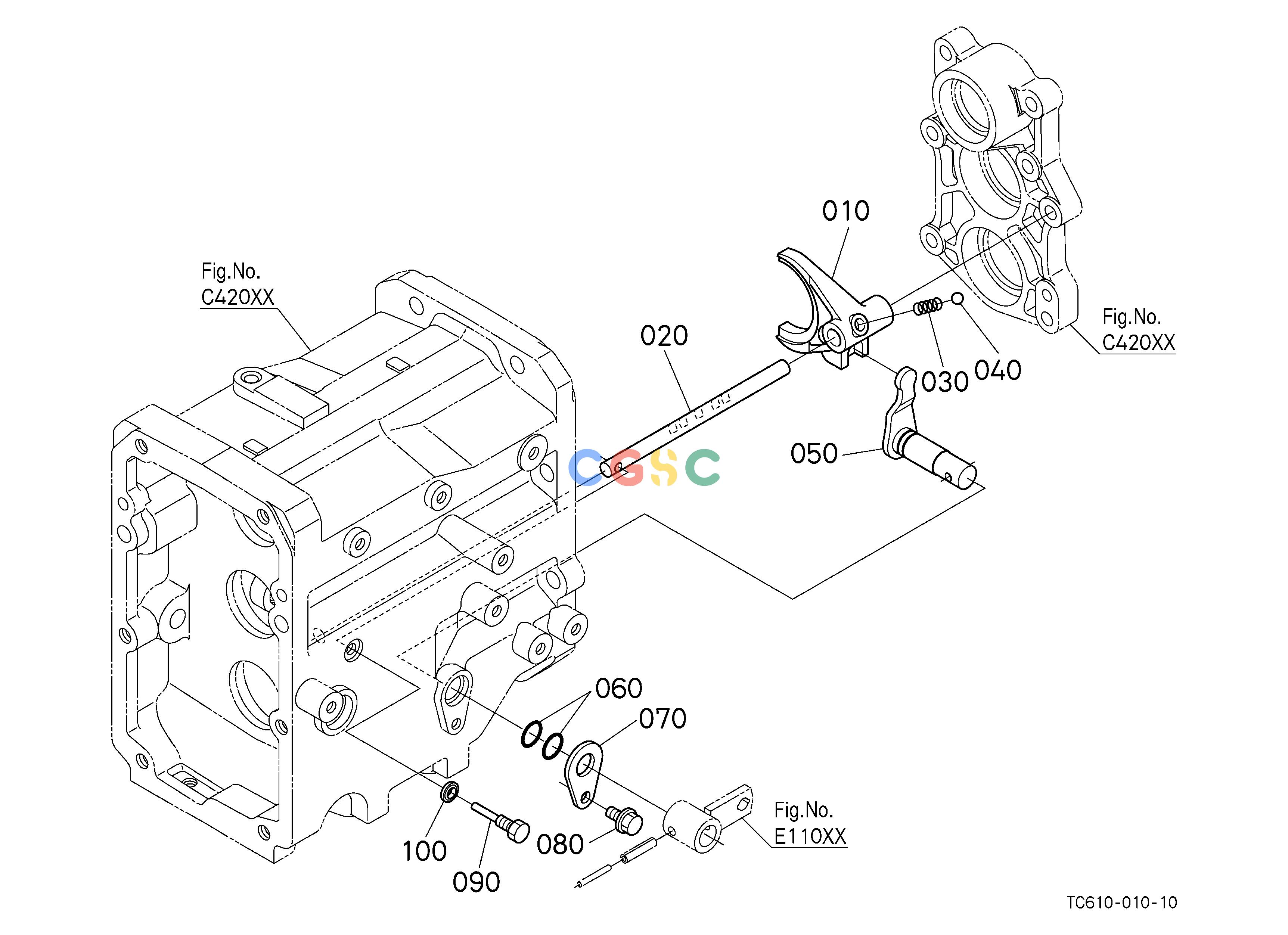

久保田零件查询D21700 RANGE SHIFT FORK SPEED CHANGE SHIFT FORK/SHIFT LEVEREPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
478 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TC68254500
|
[1] |
FORK,SHIFT(RANGE SHIFT)
|
0.0000(lbs); 0.000
|
| 020. |
TC68254410
|
[1] |
ROD,FORK(RANGE SHIFT
|
0.0000(lbs); 0.000
|
| 030. |
TC68218532
|
[1] |
SPRING(SHIFT)
|
0.0000(lbs); 0.000
|
| 040. |
0771501605
|
[1] |
BALL
|
0.0066(lbs); 0.003
|
| 050. |
TC68224420
|
[1] |
ARM(SHIFT,RANGE)
|
0.0000(lbs); 0.000
|
| 060. |
0481600200
|
[2] |
O RING
|
0.0066(lbs); 0.003
|
| 070. |
TC40224350
|
[1] |
STOPPER,ARM SHIFT
|
0.0000(lbs); 0.000
|
| 080. |
0175450812
|
[1] |
BOLT,FLANGE
|
0.0220(lbs); 0.010
|
| 090. |
TC68223120
|
[1] |
SCREW,SET
|
0.0000(lbs); 0.000
|
| 100. |
0471700810
|
[1] |
WASHERSEAL
|
0.0022(lbs); 0.001
|
