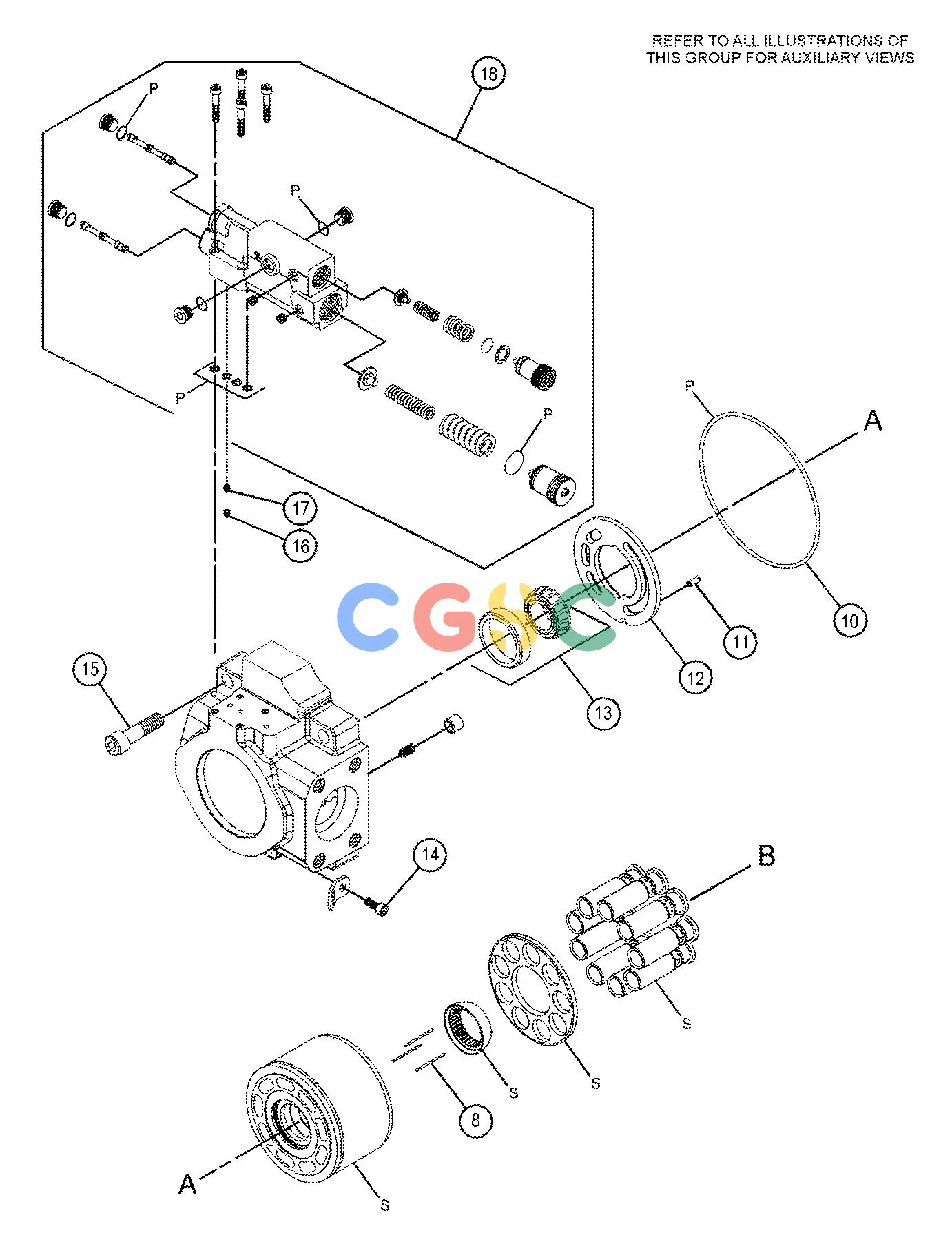

卡特零件查询（AP-655D） 454-7578: PUMP GP-PISTON
广数供应链运营团队, 17 02月, 2025，浏览：
167 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6J-7855 | [1] | RING-RETAINING | |
| 2. | 317-5891 | [1] | SEAL-LIP TYPE | |
| 3. | 2M-9780 | [2] | SEAL-O-RING | |
| 4. | 9S-8006 | [2] | PLUG(7/8-14-THD) | |
| 5. | 232-3587 | [1] | KIT-BEARING | |
| | | | [INCLUDES BEARINGS] |
| 6. | 351-6039 | [1] | SHAFT-PUMP(15-TEETH) | |
| 7. | 498-1507 | [1] | KIT-BEARING | |
| | | | [INCLUDES SWASHPLATE BEARINGS & FLARED PINS] |
| 8. | 165-9762J | [3] | PIN | |
| 9. | 498-1508 | [1] | SWASHPLATE | |
| 10. | 351-6018 | [1] | SEAL-O-RING | |
| 11. | 8J-8308 | [1] | PIN-ROLL | |
| 12. | 498-1506 | [1] | PLATE-VALVE | |
| 13. | 232-3586 | [1] | KIT-BEARING | |
| | | | [INCLUDES BEARINGS] |
| 14. | 149-4311M | [1] | BOLT-SOCKET HEAD(M6X1X16-MM) | |
| 15. | 095-0670M | [4] | BOLT(M12X1.75X45-MM) | |
| 16. | 460-0013 | [1] | PLUG-ORIFICE | |
| 17. | 460-0014 | [1] | PLUG-ORIFICE | |
| 18. | 278-8718L | [1] | VALVE GP-PUMP CONTROL | |
| | 3J-7354 | [4] | SEAL-O-RING | |
| | 234-4173 | [4] | SEAL-O-RING | |
| | 6J-2245 | [1] | SEAL-O-RING | |
| | 307-3049 | [1] | PLUG AS | |
| 19. | 498-1509 | [1] | ROD-PISTON | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 498-1510J | [1] | KIT-CYLINDER | |
| | | | [INCLUDES PARTS MARKED S IN GRAPHIC] |
| | 307-3043L | [1] | KIT-SEAL | |
| | | | [INCLUDES PARTS MARKED P IN GRAPHIC] |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | L | | KIT MARKED L SERVICES PART(S) MARKED L |
| | M | | METRIC PART |
