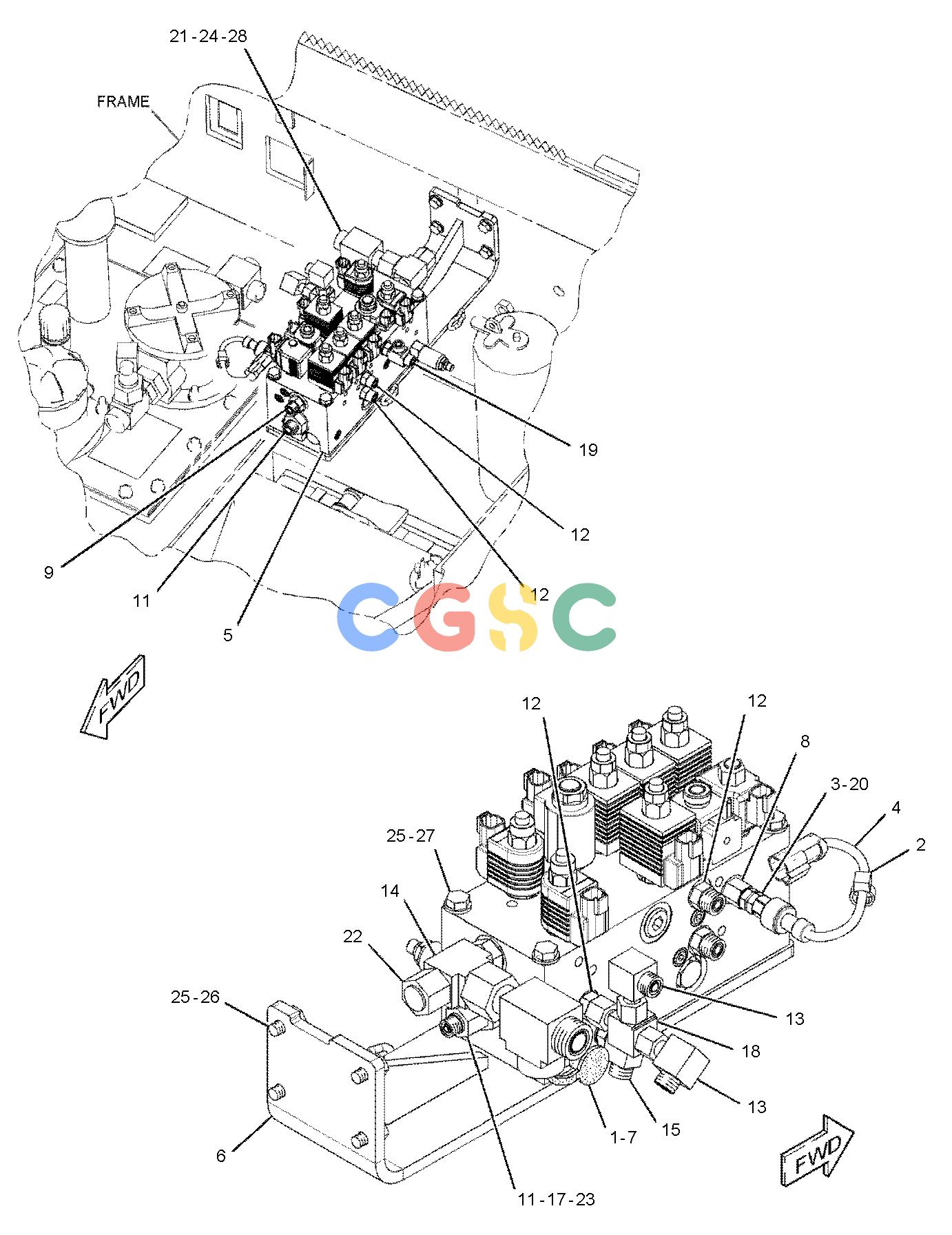

卡特零件查询（AP-655D） 270-3538: VALVE & MTG GP-AUXILIARY
广数供应链运营团队, 17 02月, 2025，浏览：
257 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6V-0852 | [1] | CAP-DUST | |
| 2. | 7K-1181 | [1] | STRAP-CABLE | |
| 3. | 108-5678 | [1] | UNION | |
| 4. | 290-5825 | [1] | SENSOR GP-PRESSURE(HYDRAULIC OIL) | |
| | 102-8803 | [1] | KIT-RECEPTACLE(3-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 8T-8729 | [3] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 9X-1813E | | SLEEVE(34-CM) | |
| 5. | 269-0535Y | [1] | VALVE GP-CONTROL(AUXILIARY) | |
| 6. | 270-3552 | [1] | BRACKET AS | |
| 7. | 164-5567 | [1] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| | 214-7568 | [1] | SEAL-O-RING | |
| | 6V-3965 | [1] | FITTING(QUICK DISCONNECT) | |
| 8. | 148-8305 | [1] | ADAPTER AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 5P-9617 | [1] | ADAPTER | |
| 9. | 148-8319 | [1] | CONNECTOR AS | |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8715 | [1] | CONNECTOR | |
| 11. | 148-8328 | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8633 | [1] | CONNECTOR | |
| 12. | 148-8336 | [5] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8636 | [1] | CONNECTOR | |
| 13. | 148-8367 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-9850 | [1] | ELBOW | |
| 14. | 148-8441 | [1] | TEE AS | |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 6V-9032 | [1] | TEE-O-RING | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| | 7J-9108 | [1] | SEAL-O-RING | |
| 15. | 148-8378 | [1] | ELBOW AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8724 | [1] | ELBOW | |
| 17. | 148-8419 | [1] | REDUCER AS | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 6V-8935 | [1] | REDUCER | |
| 18. | 148-8433 | [1] | TEE AS | |
| | 6V-8397 | [2] | SEAL-O-RING | |
| | 6V-9836 | [1] | TEE-SWIVEL | |
| 19. | 148-8435 | [1] | TEE AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [2] | SEAL-O-RING | |
| | 6V-8781 | [1] | TEE | |
| 20. | 3J-7354 | [2] | SEAL-O-RING | |
| 21. | 5K-9090 | [1] | SEAL-O-RING | |
| 22. | 6V-9831 | [1] | CAP(ORFS) | |
| 23. | 6V-8554 | [1] | NUT(13/16-16-THD) | |
| 24. | 6V-9746 | [1] | SEAL-O-RING | |
| 25. | 8T-4121 | [8] | WASHER-HARD(11X21X2.5-MM THK) | |
| 26. | 8T-4137M | [4] | BOLT(M10X1.5X20-MM) | |
| 27. | 8T-5436M | [4] | BOLT(M10X1.5X130-MM) | |
| 28. | 9X-2235 | [1] | TEE-SWIVEL | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
