卡特零件查询（AP-655D） 269-0542: PUMP GP-PISTON
广数供应链运营团队, 17 02月, 2025，浏览：
790 次

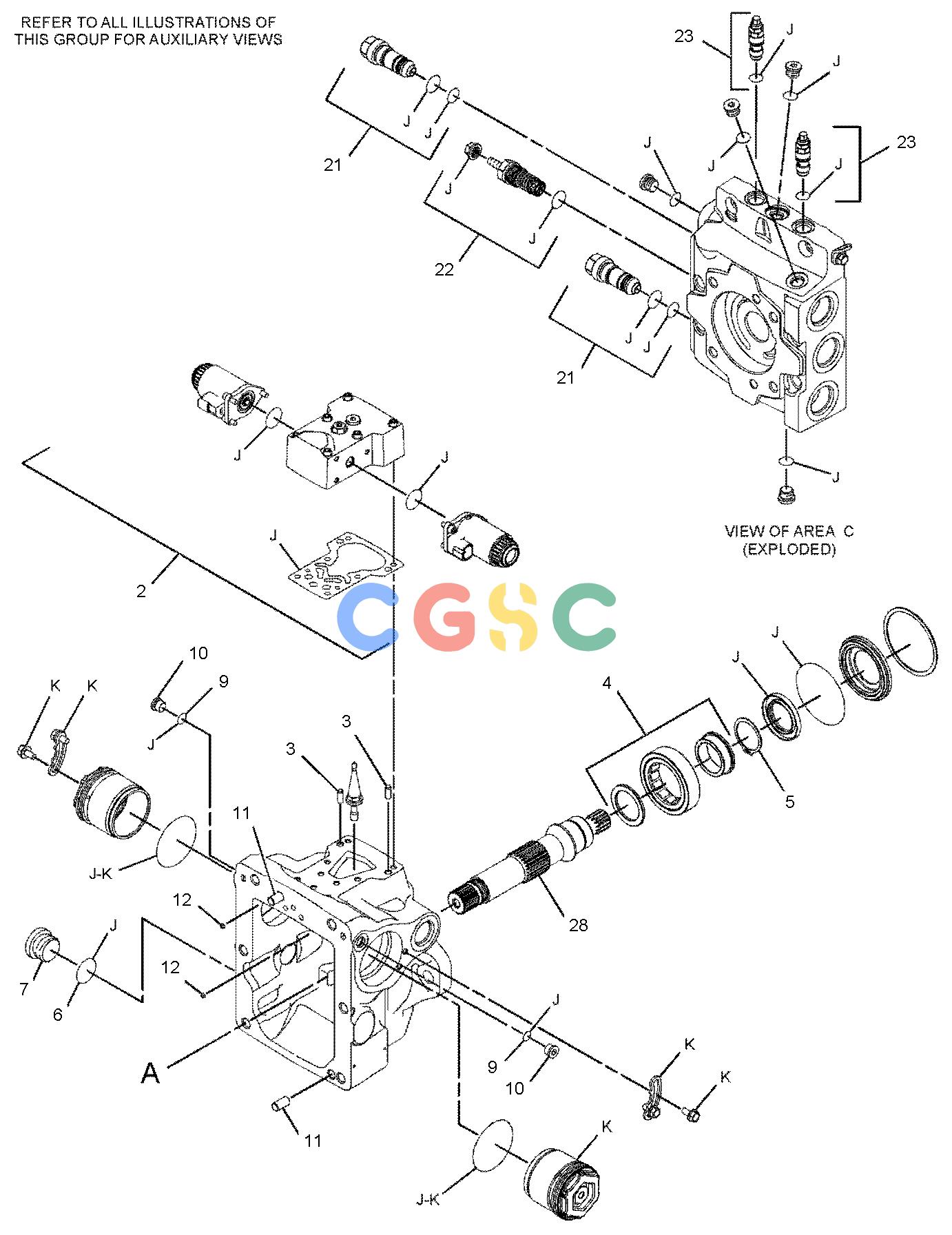

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 278-8740 | [1] | SWASHPLATE | |
| 2. | 311-0326 | [1] | VALVE GP-CONTROL(VIBRATORY PISTON PUMP) | |
| | 311-0327 | [2] | VALVE | |
| | 8C-6965M | [6] | BOLT-SOCKET HEAD(M6X1X45-MM) | |
| | 099-2374M | [6] | BOLT-SOCKET HEAD(M5X0.8X12-MM) | |
| | 311-8750 | [1] | SCREEN-FILTER(PISTON PUMP) | |
| 3. | 260-3960 | [2] | DOWEL | |
| 4. | 209-3766 | [1] | BEARING AS-ROLLER | |
| 5. | 1J-6474 | [1] | RING-RETAINING(EXTERNAL) | |
| 6. | 3D-2824 | [1] | SEAL-O-RING | |
| 7. | 9S-8008 | [1] | PLUG(1-1/16-12-THD) | |
| 8. | 278-8738 | [1] | KIT-PISTON | |
| | | | (INCLUDES PARTS MARKED K IN THE GRAPHIC) |
| 9. | 3J-7354 | [2] | SEAL-O-RING | |
| 10. | 9S-8002 | [2] | PLUG(7/16-20-THD) | |
| 11. | 6V-3538 | [4] | DOWEL | |
| 12. | 311-8750 | [2] | SCREEN-FILTER(PISTON PUMP) | |
| 13. | 278-8750 | [1] | PLATE(CCW) | |
| 14. | 311-8130 | [1] | BEARING | |
| 15. | 8C-8729M | [4] | BOLT-SOCKET HEAD(M12X1.75X80-MM) | |
| 16. | 8T-8441M | [4] | BOLT-SOCKET HEAD(M12X1.75X25-MM) | |
| 17. | 311-8131 | [1] | COVER-ADAPTER | |
| 18. | 311-8132 | [1] | PLATE-THRUST | |
| 19. | 311-0322 | [1] | KIT-PUMP | |
| | | | (INCLUDES GEROTOR, GEROTOR RING, PORT PLATES & RING SEALS) |
| 20. | 8T-0273M | [2] | BOLT-SOCKET HEAD(M12X1.75X40-MM) | |
| 21. | 311-0323 | [2] | KIT-VALVE | |
| | | | (EACH INCLUDES PRESSURE VALVE & O-RING SEALS) |
| 22. | 311-0325 | [1] | KIT-VALVE | |
| | | | (INCLUDES RELIEF VALVE, SEAL NUT & O-RING SEAL) |
| 23. | 311-0324 | [2] | KIT-VALVE(LIMIT SWITCH) | |
| | | | (EACH INCLUDES PRESSURE VALVE & O-RING SEAL) |
| 24. | 8J-8308 | [1] | PIN-ROLL | |
| 25. | 278-8739 | [1] | ROTATING GP-PUMP(VIBRATORY) | |
| 26. | 341-7637 | [1] | KIT-BEARING(PISTON PUMP) | |
| 27. | 436-3729 | [1] | SHAFT | |
| 28. | 436-3730 | [1] | SHAFT-DRIVE | |
| | | | |
| | | | PARTS SHOWN IN GRAPHIC(S) WITHOUT A REFERENCE NUMBER ARE NOT SERVICED SEPARATELY |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 310-8019 | [1] | KIT-SEAL | |
| | | | (INCLUDES O-RING SEALS, GASKETS, PISTON SEAL RINGS, LIP SEALS, SEAL NUT & PARTS MARKED J IN GRAPHIC) |
| | M | | METRIC PART |
