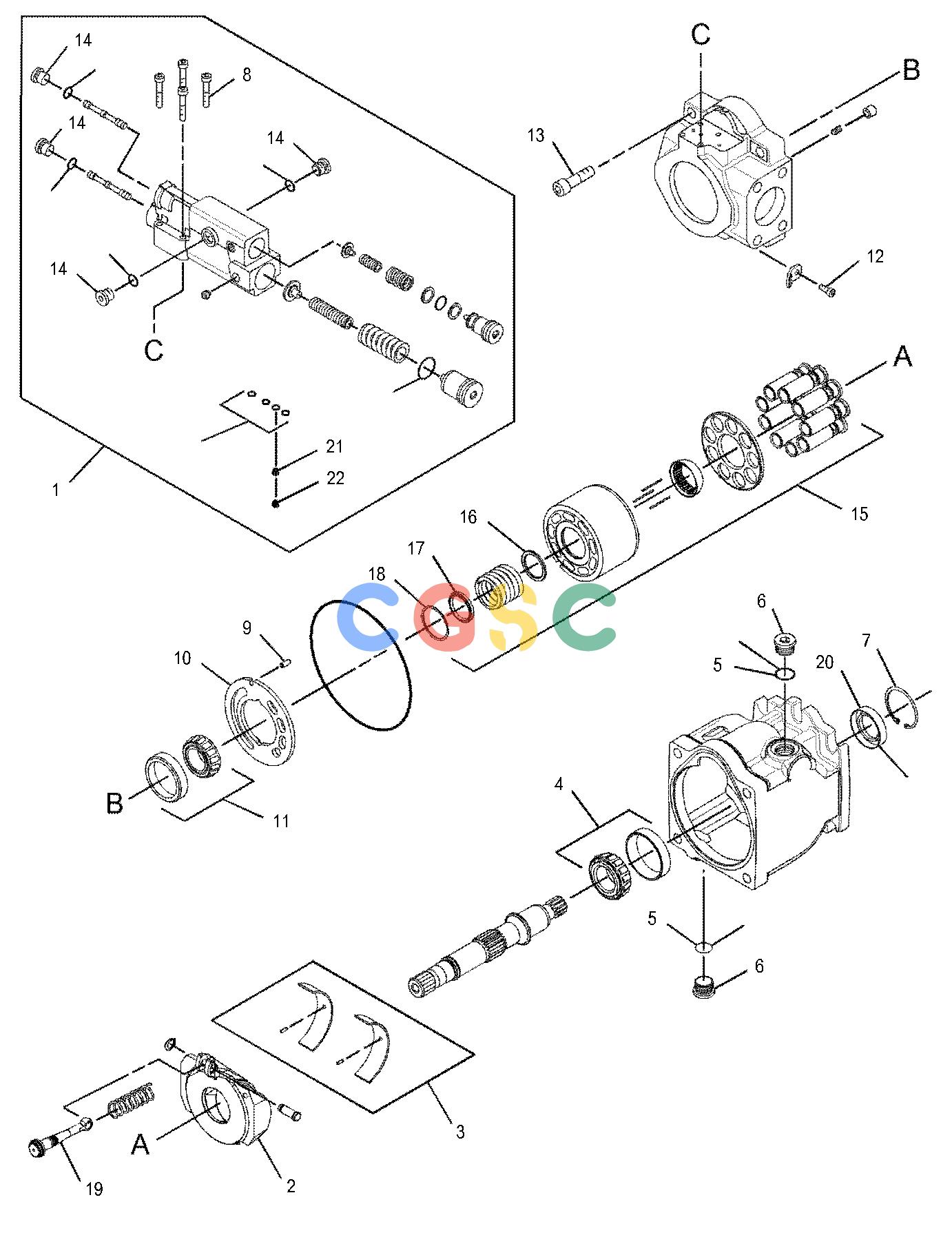

卡特零件查询（AP-655D） 313-6525: PUMP GP-PISTON
广数供应链运营团队, 17 02月, 2025，浏览：
115 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 278-8718 | [1] | VALVE GP-PUMP CONTROL(GENERATOR) | |
| | 3J-7354 | [4] | SEAL-O-RING | |
| | 6J-2245 | [1] | SEAL-O-RING | |
| | 234-4173 | [4] | SEAL-O-RING | |
| | 307-3049 | [1] | PLUG AS | |
| 2. | 260-3146 | [1] | SWASHPLATE | |
| 3. | 260-3145 | [1] | KIT-SWASHPLATE(PISTON PUMP) | |
| | | | (INCLUDES PINS & BEARINGS) |
| 4. | 232-3587 | [1] | KIT-BEARING(FRONT) | |
| | | | (INCLUDES BEARING CUP & BEARING CONE) |
| 5. | 2M-9780 | [2] | SEAL-O-RING | |
| 6. | 9S-8006 | [2] | PLUG(7/8-14-THD) | |
| 7. | 6J-7855 | [1] | RING-RETAINING | |
| 8. | 9X-6615M | [4] | BOLT(M5X0.8X30-MM) | |
| 9. | 095-0880 | [1] | PIN | |
| 10. | 260-6873 | [1] | PLATE-VALVE | |
| 11. | 232-3586 | [1] | KIT-BEARING(REAR) | |
| | | | (INCLUDES BEARING CUP & BEARING CONE) |
| 12. | 149-4311M | [1] | BOLT-SOCKET HEAD(M6X1X16-MM) | |
| 13. | 095-0670M | [4] | BOLT(M12X1.75X45-MM) | |
| 14. | 9S-8002 | [4] | PLUG(7/16-20-THD) | |
| 15. | 260-3149J | [1] | KIT-CYLINDER(PISTON PUMP) | |
| | | | (ALSO INCLUDES PISTON AS, SLIPPER RETAINER, GUIDE, HOLD DOWN PINS, CYLINER BLOCK & SPRING) |
| 16. | 7X-5472J | [1] | WASHER(31.2X40.3X2.7-MM THK) | |
| 17. | 7X-5470J | [1] | WASHER-SPECIAL | |
| 18. | 7X-5469J | [1] | RING-RETAINING | |
| 19. | 359-5232 | [1] | ROD-PISTON | |
| 20. | 317-5891 | [1] | SEAL-LIP TYPE | |
| 21. | 460-0014 | | PLUG-ORIFICE | |
| 22. | 460-0013 | [1] | PLUG-ORIFICE | |
| | | | |
| | | | PARTS SHOWN IN GRAPHIC(S) WITHOUT A REFERENCE NUMBER ARE NOT SERVICED SEPARATELY |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 307-3043 | [1] | KIT-SEAL(GENERATOR PUMP) | |
| | | | (INCLUDES O-RING SEALS, END CAP, SEAL RINGS, LIP SEAL, PLUG & PARTS MARKED L IN THE GRAPHICS) |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | M | | METRIC PART |
