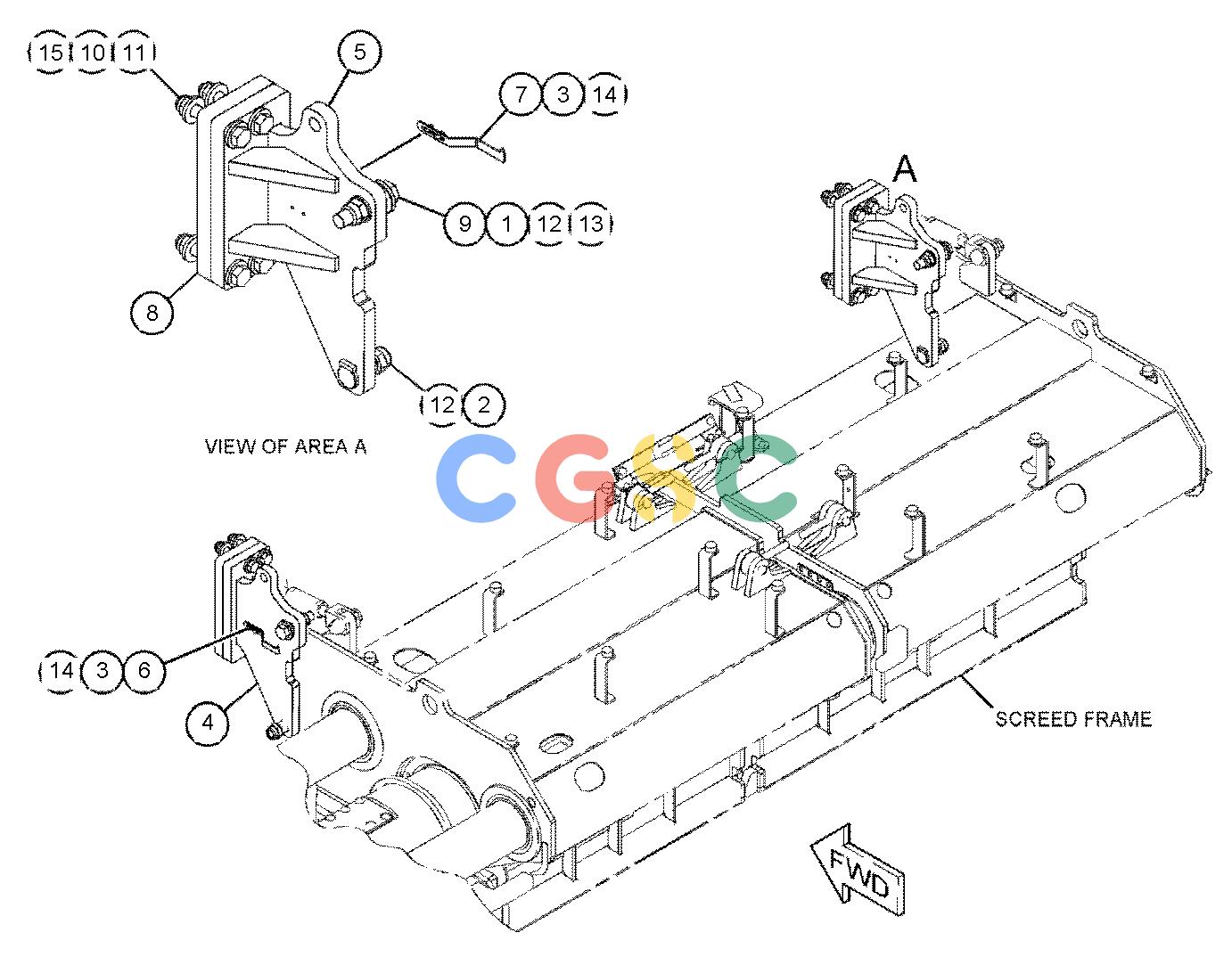

卡特零件查询（AP-655D） 286-3634: ARM GP-DROP
广数供应链运营团队, 17 02月, 2025，浏览：
147 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 258-7153 | [2] | WASHER(25X55X8-MM THK) | |
| 2. | 273-2048 | [2] | PIN | |
| 3. | 9X-8256 | [4] | WASHER(6.6X12X2-MM THK) | |
| 4. | 392-9506 | [1] | BRACKET AS(LH) | |
| 5. | 392-9515 | [1] | BRACKET AS(RH) | |
| 6. | 392-9553 | [1] | INDICATOR(LH) | |
| 7. | 392-9559 | [1] | INDICATOR(RH) | |
| 8. | 295-2147 | [2] | SPACER | |
| 9. | 286-0721 | [2] | BOLT-HEAD(M24X2X100-MM) | |
| 10. | 6V-7688M | [8] | LOCKNUT(M20X2.5-THD) | |
| 11. | 7X-2532M | [8] | BOLT(M20X2.5X130-MM) | |
| 12. | 8T-0390M | [4] | NUT-SELF LOCKING(M24X2-THD) | |
| 13. | 8T-4167 | [2] | WASHER-HARD(26X44X4-MM THK) | |
| 14. | 8T-4171M | [4] | BOLT(M6X1X12-MM) | |
| 15. | 8T-5439 | [16] | WASHER-HARD(21.5X45X6-MM THK) | |
| | M | | METRIC PART |
