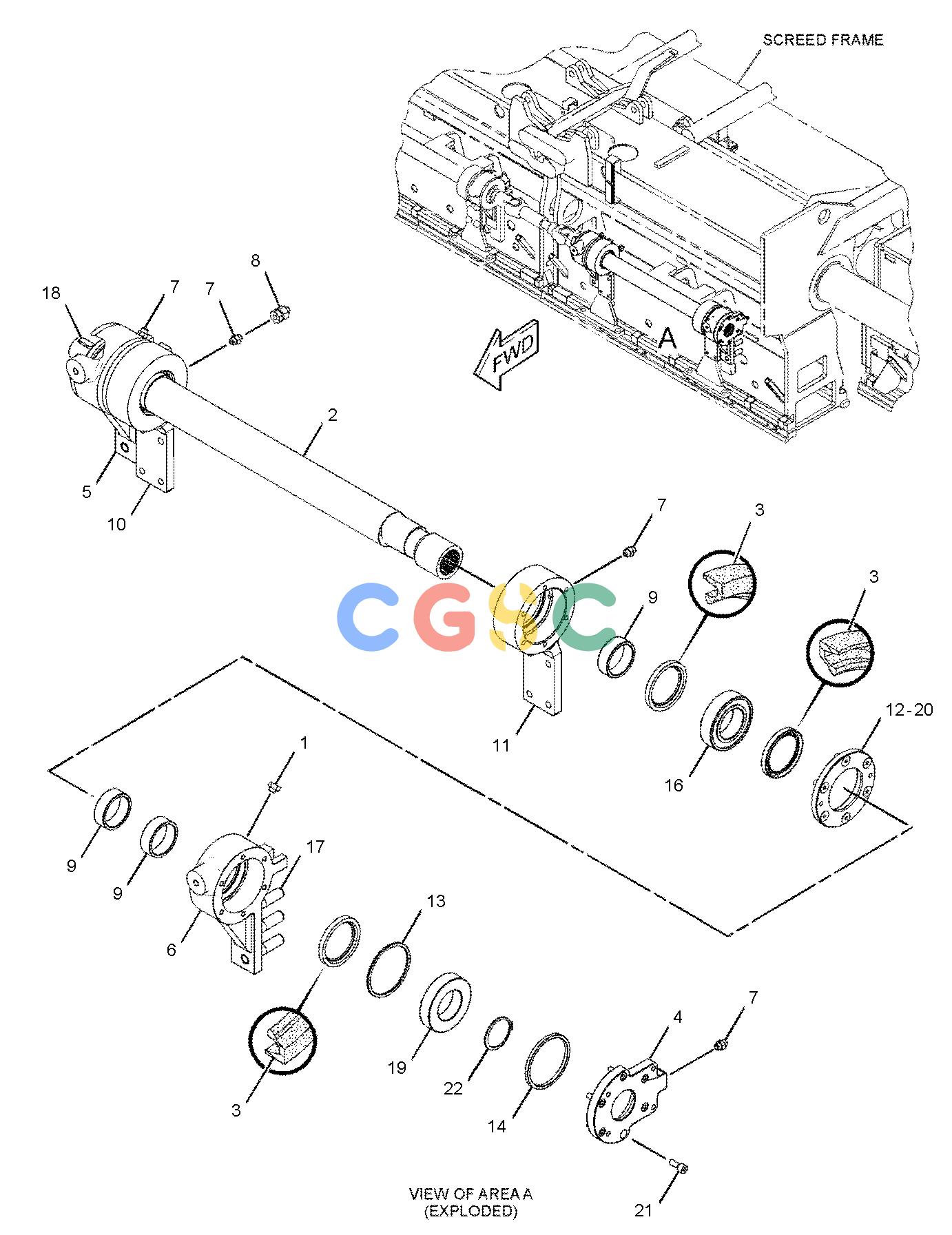

卡特零件查询（AP-655D） 242-2750: VIBRATORY GP
广数供应链运营团队, 17 02月, 2025，浏览：
894 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 242-2343 | [1] | PLUG | |
| 2. | 242-2763 | [1] | SHAFT AS-DRIVE | |
| 3. | 242-2813 | [7] | SEAL-SHAFT | |
| 4. | 242-2820 | [1] | FLANGE | |
| 5. | 242-2845 | [1] | SUPPORT | |
| 6. | 242-2846 | [1] | SUPPORT | |
| 7. | 242-2887 | [4] | CONNECTOR | |
| 8. | 242-2888 | [1] | CONNECTOR | |
| 9. | 242-2903 | [7] | RING | |
| 10. | 242-2904 | [1] | SUPPORT | |
| 11. | 242-2905 | [1] | SUPPORT | |
| 12. | 242-2906 | [3] | COVER | |
| 13. | 242-2907 | [1] | RING | |
| 14. | 242-2908 | [1] | RING | |
| 16. | 244-2296 | [2] | BALL BEARING | |
| 17. | 255-1547 | [6] | STUD | |
| 18. | 258-9054 | [1] | KEY(RECTANGULAR SECTION) | |
| 19. | 1T-0043 | [2] | BALL BEARING | |
| 20. | 8C-7505M | [18] | SCREW-FLAT HEAD(M8X1.25X20-MM) | |
| 21. | 8T-1158M | [6] | BOLT-SOCKET HEAD(M8X1.25X20-MM) | |
| 22. | 8T-4241 | [2] | RING-RETAINING(EXTERNAL) | |
| | M | | METRIC PART |
