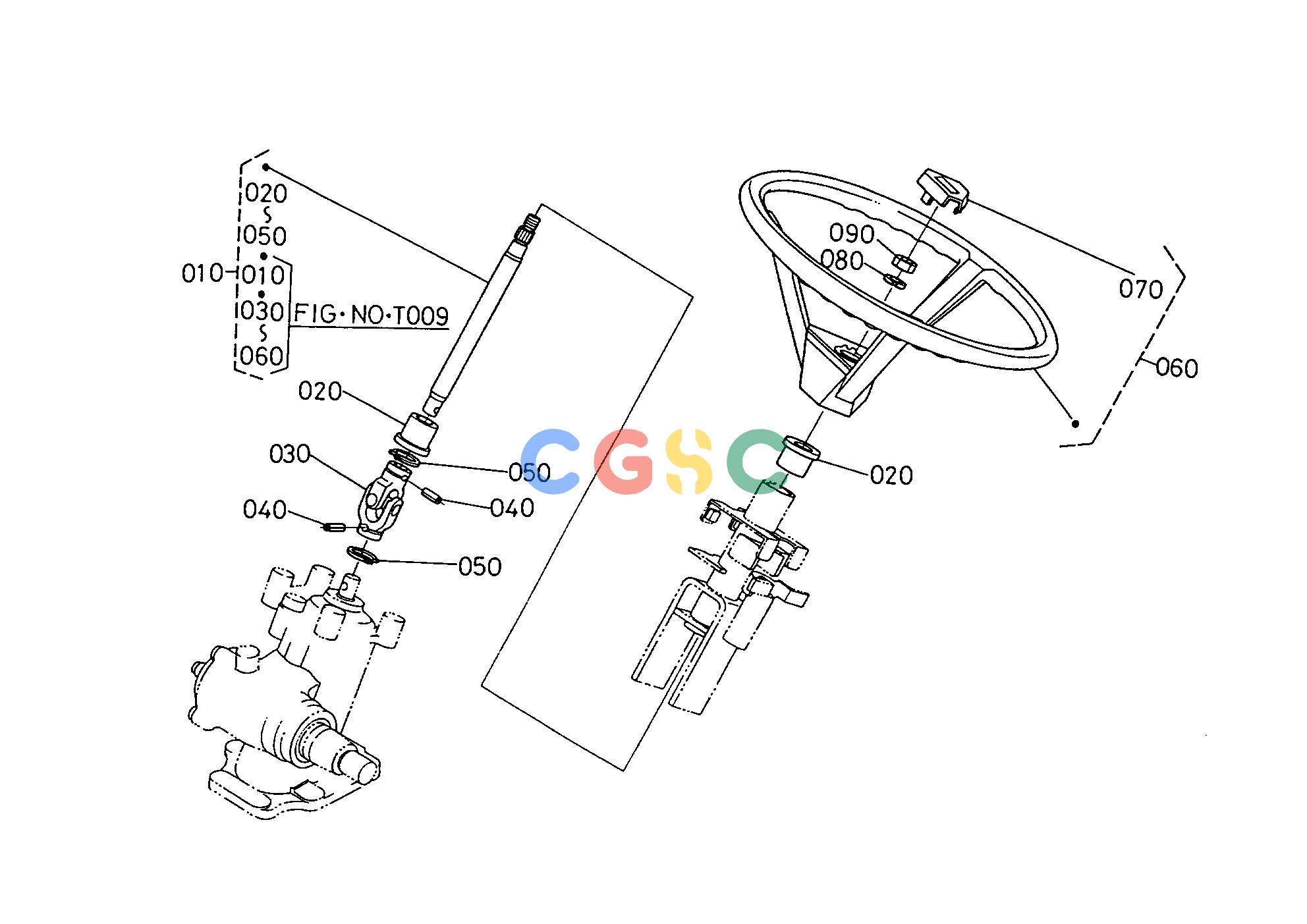

久保田零件查询T01000 STEERING WHEEL STEERINGEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
537 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3251016400
|
[1] |
ASSY BRACKET STRG.
|
7.4800(lbs); 3.400
|
| 020. |
3253016490
|
[2] |
BUSH STEERING POST
|
0.0440(lbs); 0.020
|
| 030. |
3253016510
|
[1] |
JOINT UNIVERSAL
|
0.5940(lbs); 0.270
|
| 040. |
0541100622
|
[2] |
PIN SPRING
|
0.0066(lbs); 0.003
|
| 050. |
0461200250
|
[2] |
CIR-CLIP EXTERNAL
|
0.0044(lbs); 0.002
|
| 060. |
3135116060
|
[1] |
ASSY WHEEL STEERING
|
0.0000(lbs); 0.000
|
| 070. |
3135116080
|
[1] |
PAD STEERING
|
0.0000(lbs); 0.000
|
| 080. |
0451250120
|
[1] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 090. |
0217650120
|
[1] |
NUT
|
0.0220(lbs); 0.010
|
