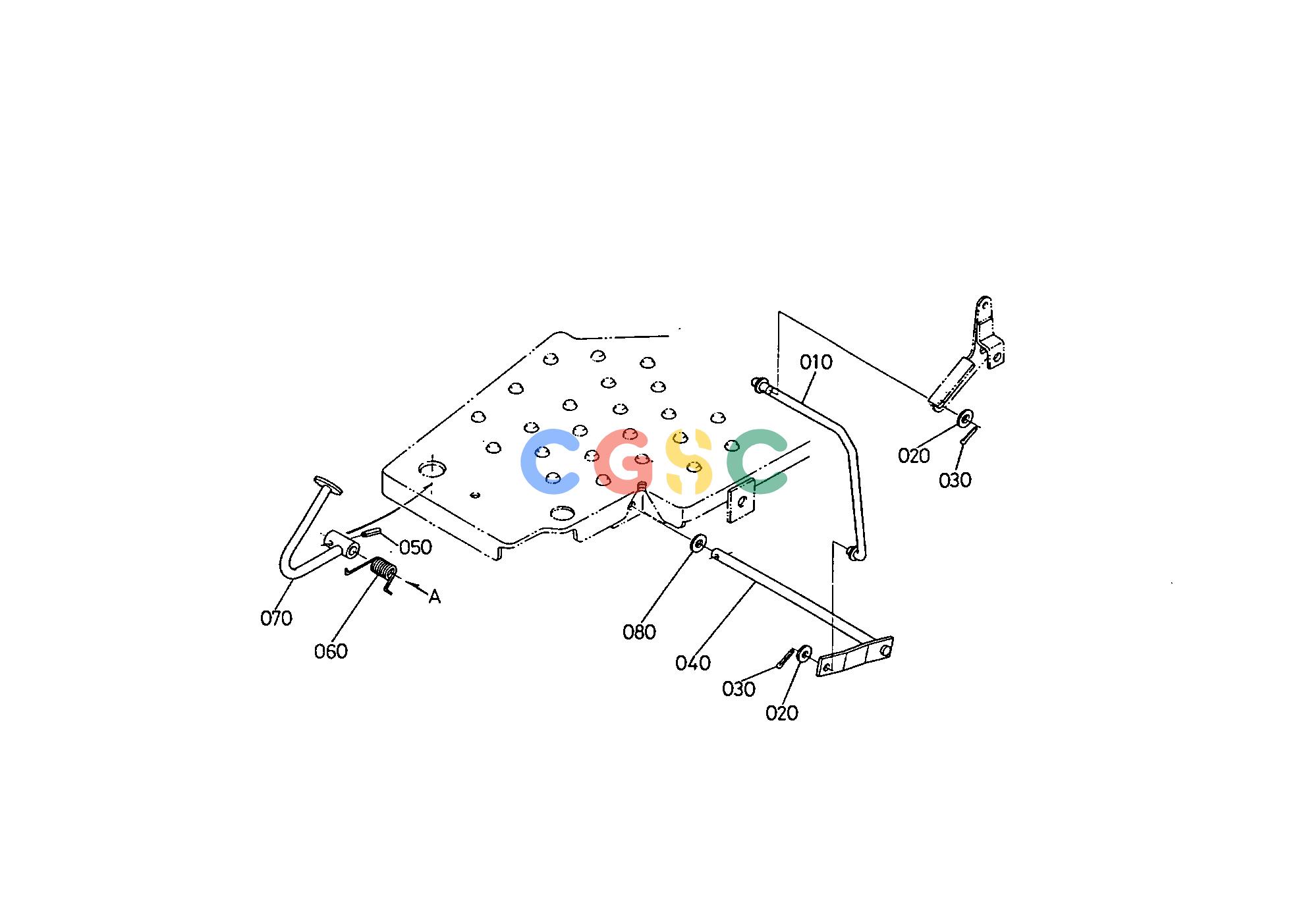

久保田零件查询T01600 THROTTLE PEDAL ENGINE CONTROLEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
368 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3253017570
|
[1] |
ROD ACCEL.
|
0.3300(lbs); 0.150
|
| 020. |
0401250080
|
[2] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 030. |
0551150218
|
[2] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 040. |
3253017580
|
[1] |
SHAFT PEDAL
|
0.4400(lbs); 0.200
|
| 050. |
0541100425
|
[1] |
PIN SPRING
|
0.0022(lbs); 0.001
|
| 060. |
3253017650
|
[1] |
SPRING
|
0.0110(lbs); 0.005
|
| 070. |
3253017630
|
[1] |
PEDAL ACCEL.
|
0.3740(lbs); 0.170
|
| 080. |
0401150100
|
[1] |
WASHER PLAIN
|
0.0044(lbs); 0.002
|
