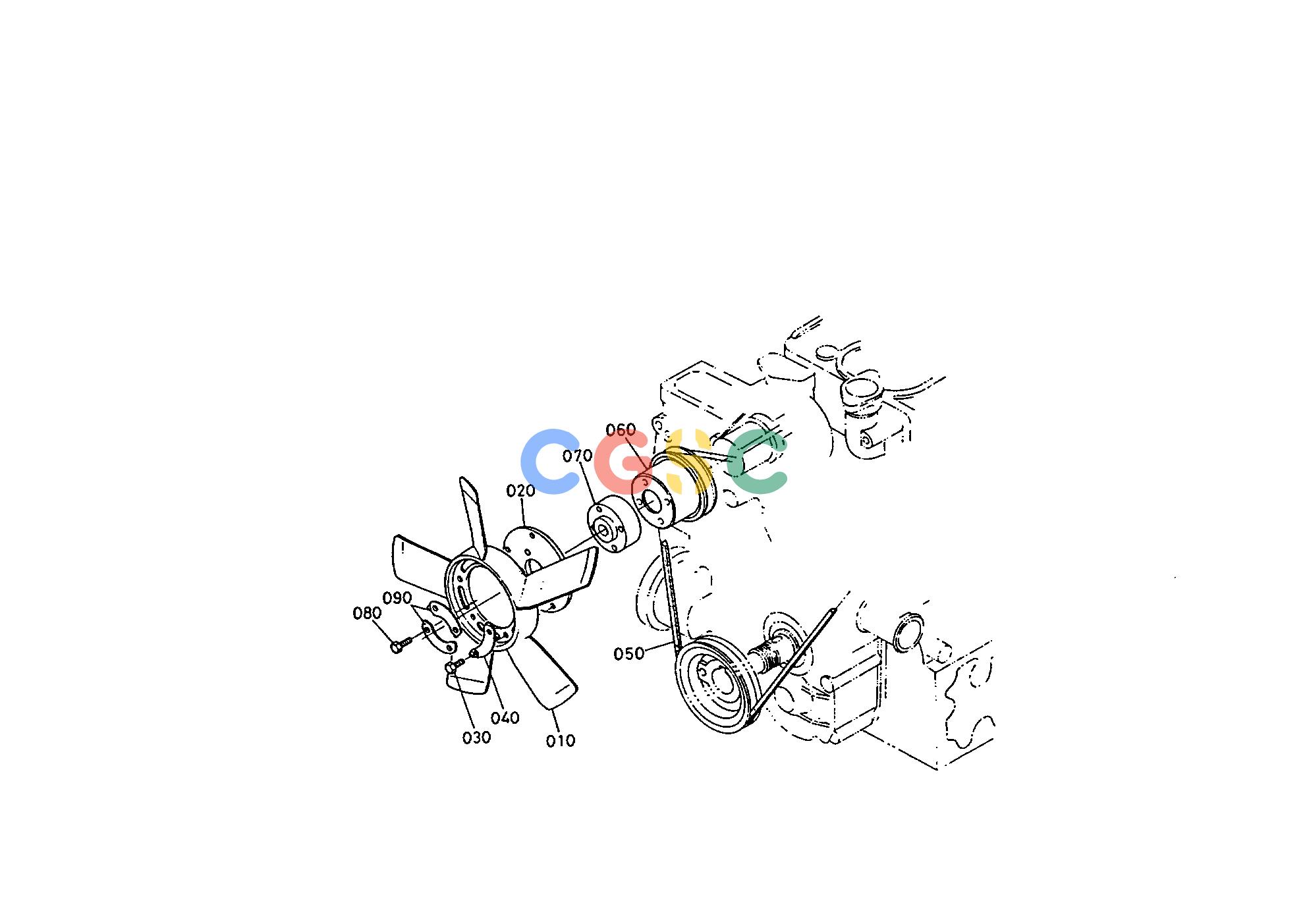

久保田零件查询T08500 FAN ENGINE CONTROLEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
131 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1560174110
|
[1] |
FAN
|
0.9460(lbs); 0.430
|
| 020. |
1547174130
|
[1] |
SUPPORT FAN
|
0.4400(lbs); 0.200
|
| 030. |
0105350610
|
[6] |
BOLT
|
0.0088(lbs); 0.004
|
| 040. |
1560174240
|
[3] |
WASHER FAN
|
0.0132(lbs); 0.006
|
| 050. |
1547197010
|
[1] |
BELT V
|
0.2640(lbs); 0.120
|
| 060. |
1736574250
|
[1] |
PULLEY FAN
|
0.7700(lbs); 0.350
|
| 070. |
1544974150
|
[1] |
COLLAR FAN
|
0.3740(lbs); 0.170
|
| 080. |
0105350660
|
[4] |
BOLT
|
0.0308(lbs); 0.014
|
| 090. |
1532174230
|
[2] |
WASHER FAN
|
0.0110(lbs); 0.005
|
