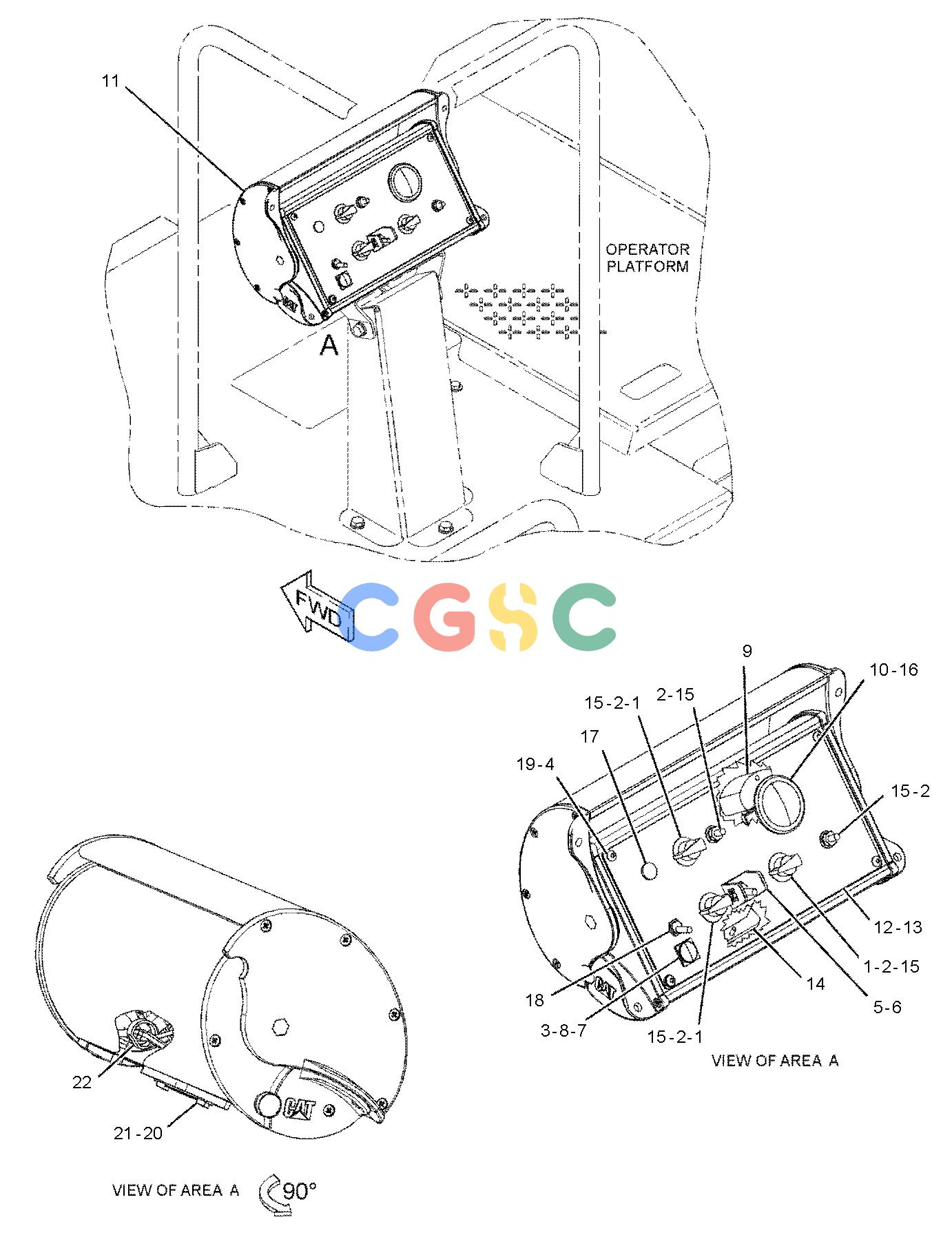

卡特零件查询（AP-655D） 288-6124: BOX GP-SCREED CONTROL
广数供应链运营团队, 17 02月, 2025，浏览：
623 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1P-6509 | [3] | KNOB | |
| 2. | 7C-4550 | [5] | SEAL(ROTATING SHAFT) | |
| 3. | 7N-5876 | [1] | LAMP(24-VOLT, 0.2-AMPERE)(MINIATURE) | |
| 4. | 311-5307M | [4] | SCREW-BUTTON HEAD(M6X1X16-MM) | |
| 5. | 246-8912 | [1] | SWITCH GP-TOGGLE(EXTENDER WIDTH) | |
| | 3L-8187 | [3] | LOCKWASHER | |
| | 6T-3631 | [2] | NUT-HEX(15/32-32-THD) | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3633 | [1] | RING-LOCKING | |
| | 6V-8374 | [3] | SCREW-MACHINE(6-32X0.25-IN) | |
| 6. | 265-9984 | [1] | BRACKET | |
| 7. | 267-6355 | [1] | RECEPTACLE-INDICATOR LAMP | |
| 8. | 268-1255 | [1] | SOCKET-LAMP | |
| 9. | 274-8068 | [1] | MODULE GP-INTERFACE | |
| 10. | 293-9141 | [1] | INDICATOR(SCREED PRESSURE) | |
| 11. | 288-1013Y | [1] | BOX GP-CONTROL | |
| 12. | 288-6127 | [1] | FILM-IDENTIFICATION(CONTROL PANEL) | |
| 13. | 289-6104 | [1] | PLATE | |
| 14. | 293-0070 | [1] | HARNESS AS-BOX(SCREED) | |
| | 9X-3401 | [22] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 155-2260 | [5] | KIT-CONNECTING PLUG(3-PIN) | |
| | 155-2274 | [1] | KIT-CONNECTING PLUG(6-PIN) | |
| | | | (EACH PLUG KIT INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 9X-7143 | [1] | RECEPTACLE AS-CONNECTOR(24-PIN) | |
| | 9G-3695 | [2] | PLUG-SEAL | |
| | 180-9340 | [20] | SOCKET-CONNECTOR(14-GA TO 18-GA) | |
| | 5P-4571 | [2] | TERMINAL-BLADE(14-GA TO 16-GA) | |
| | 5P-2321 | [11] | TERMINAL-FORK(14-GA TO 16-GA, NO. 6 SCREW) | |
| 15. | 340-1070 | [5] | POTENTIOMETER AS(AUGER CONTROL) | |
| 16. | 306-8870 | [1] | HARNESS AS-BOX(ENGINE OIL PRESSURE) | |
| | 155-2274 | [2] | KIT-CONNECTING PLUG(6-PIN) | |
| | | | (EACH INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 9G-3695 | [4] | PLUG-SEAL | |
| | 180-9340 | [8] | SOCKET-CONNECTOR(14-GA TO 18-GA) | |
| 17. | 191-1035 | [1] | PLUG | |
| 18. | 9D-3721 | [1] | SWITCH-TOGGLE(SINGLE POLE) | |
| 19. | 9X-8256 | [4] | WASHER(6.6X12X2-MM THK) | |
| 20. | 162-2165M | [4] | BOLT-SOCKET HEAD(M4X0.7X16-MM) | |
| 21. | 096-6166 | [4] | WASHER-HARD(4.5X9X1-MM THK) | |
| 22. | 7K-1181 | [4] | STRAP-CABLE | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
