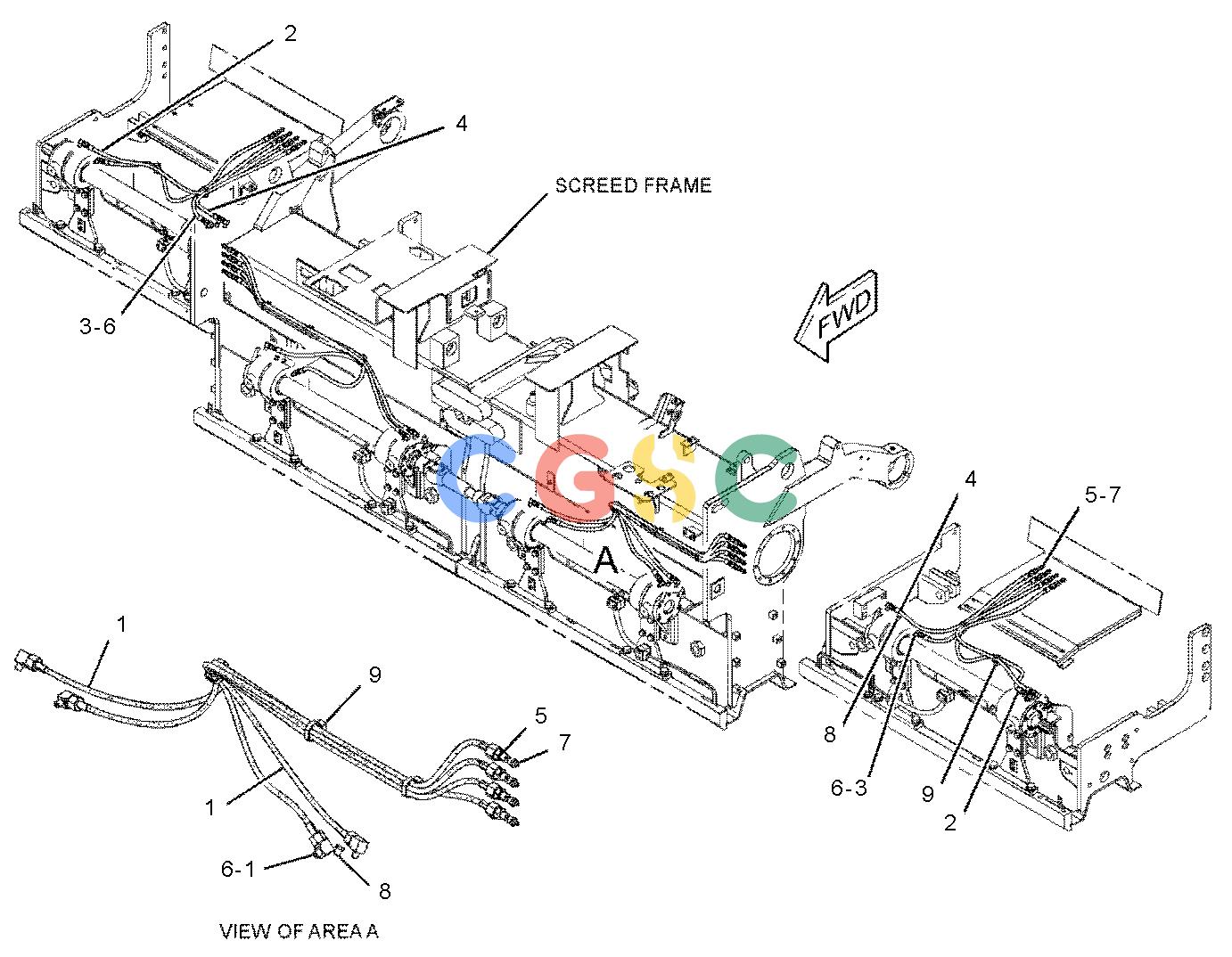

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 366-9534I | [8] | HOSE AS | |
| 2. | 366-9535I | [4] | HOSE AS | |
| 3. | 366-9536I | [2] | HOSE AS | |
| 4. | 366-9537I | [2] | HOSE AS | |
| 5. | 369-6872 | [16] | CONNECTOR AS | |
| (EACH INCLUDES) | ||||
| 5P-5528 | [1] | BUSHING-REDUCER | ||
| 214-7566 | [1] | SEAL-O-RING | ||
| 6. | 2D-1683 | [16] | FITTING(1/8-27 PTF) | |
| 7. | 3B-8489 | [16] | FITTING-GREASE(1/8-27 PTF) | |
| 8. | 5M-6214 | [4] | PLUG(1/8-27 PTF) | |
| 9. | 7K-1181 | [10] | STRAP-CABLE | |
| I | REFER TO HYDRAULIC INFORMATION SYSTEM | |||
