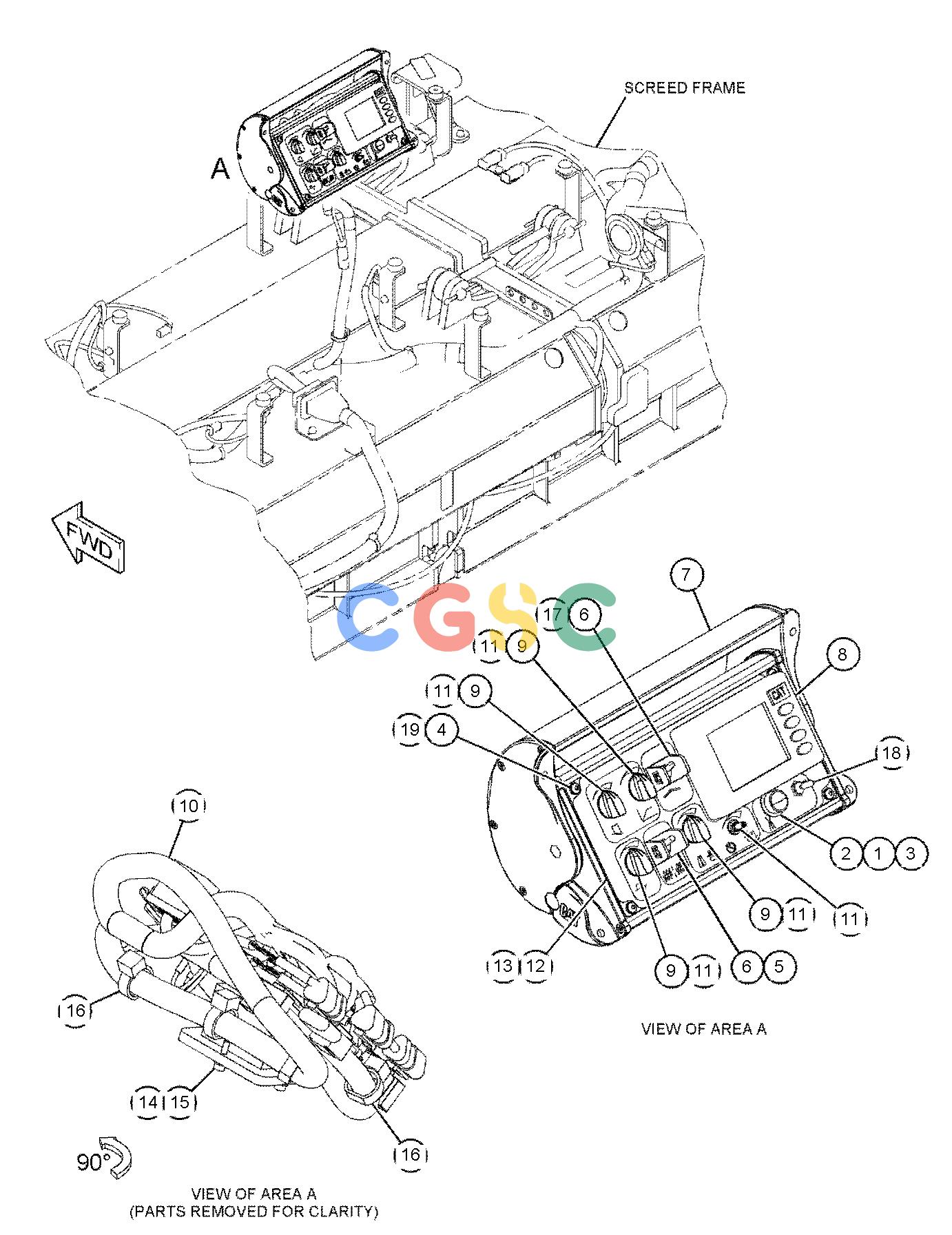

卡特零件查询（AP-655D） 383-2078: BOX GP-SCREED CONTROL
广数供应链运营团队, 17 02月, 2025，浏览：
298 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 100-3245 | [1] | LAMP(24-VOLT, 0.17-AMPERE) | |
| 2. | 9D-3127 | [1] | BASE AS-INDICATOR LIGHT | |
| | 6V-8367 | [1] | LOCKWASHER | |
| | 6V-8382 | [1] | NUT-HEX(11/16-27-THD) | |
| 3. | 9D-9161 | [1] | LENS-GREEN | |
| 4. | 089-8034M | [4] | SCREW-BUTTON HEAD | |
| 5. | 246-8912Y | [1] | SWITCH GP-TOGGLE(AUGER HEIGHT) | |
| 6. | 265-9984 | [2] | BRACKET | |
| 7. | 288-1013Y | [1] | BOX GP-CONTROL | |
| 8. | 294-3323 | [1] | CONTROL GP-UNPRGMED MONITOR | |
| 9. | 316-5717 | [4] | KNOB AS | |
| 10. | 352-0683Y | [1] | HARNESS AS-BOX(SCREED CONTROL) | |
| 11. | 378-3321 | [5] | POTENTIOMETER AS(DRILL SPEED) | |
| | | | (EACH INCLUDES) |
| | 8T-8729 | [3] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 5P-5677D | | WIRE(18-GA, BLACK)(0.9-M) | |
| | 102-8803 | [1] | KIT-RECEPTACLE(3-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 9X-1813E | | SLEEVE(25-CM) | |
| | 8T-6342E | | TUBE-HEAT SHRINK(3.2-MM DIA)(10-CM) | |
| 12. | 383-2069 | [1] | PLATE | |
| 13. | | [1] | FILM-IDENTIFICATION(SCREED CONTROL) |
| 14. | 096-6166 | [4] | WASHER-HARD(4.5X9X1-MM THK) | |
| 15. | 162-2165M | [4] | BOLT-SOCKET HEAD(M4X0.7X16-MM) | |
| 16. | 7K-1181 | [4] | STRAP-CABLE | |
| 17. | 7N-8008Y | [1] | SWITCH AS-TOGGLE | |
| 18. | 9D-3721 | [1] | SWITCH-TOGGLE(SINGLE POLE) | |
| 19. | 9X-8256 | [4] | WASHER(6.6X12X2-MM THK) | |
| | D | | ORDER BY THE METER |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
