卡特零件查询（AP-655D） 306-6666: BOX GP-CONTROL
广数供应链运营团队, 17 02月, 2025，浏览：
329 次

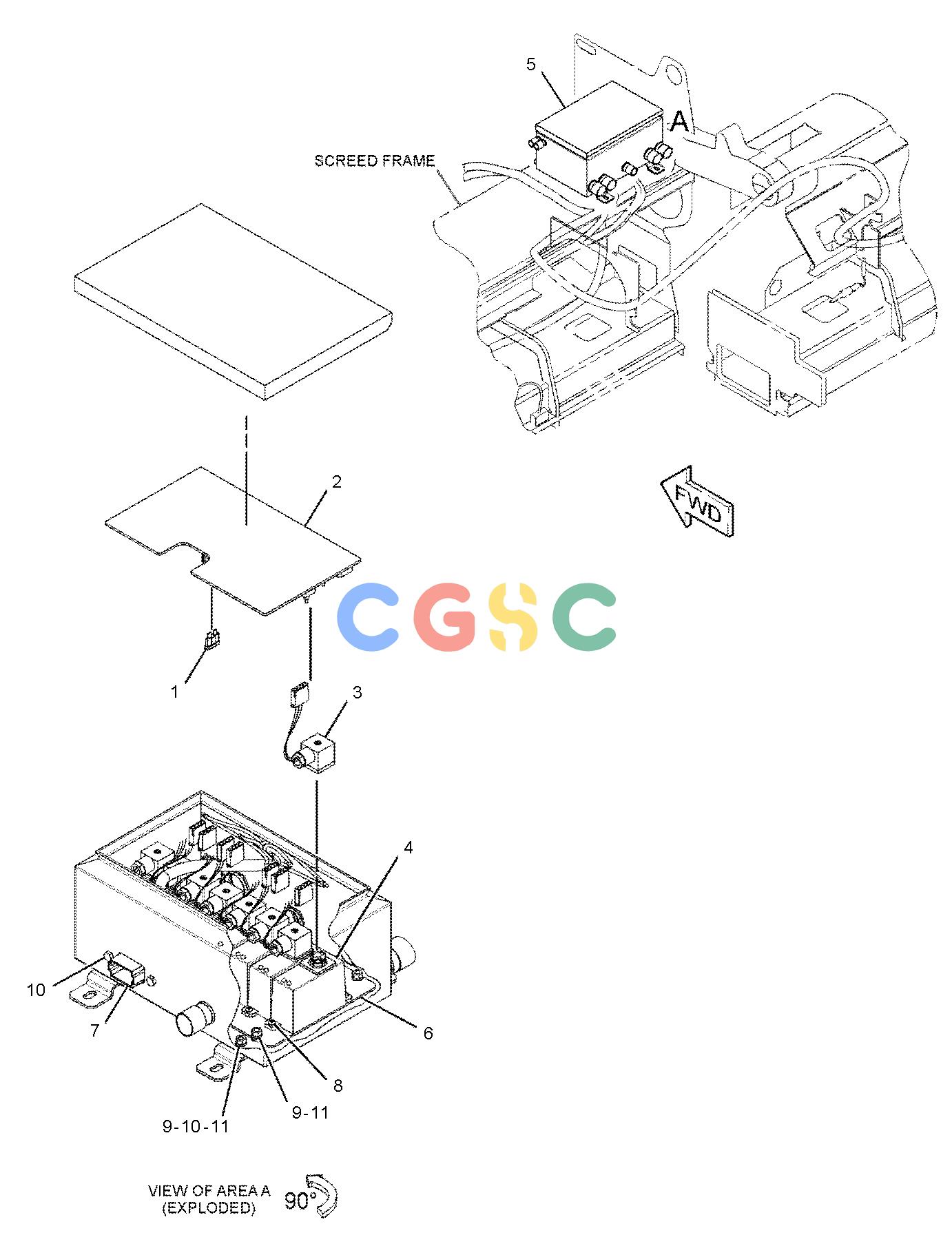

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8U-6378 | [5] | FUSE(7.5-AMPERE) | |
| 2. | 274-1166 | [1] | BOARD-CONTROL | |
| 3. | 275-2065 | [8] | CONNECTOR | |
| 4. | 277-4454 | [8] | BOX-CONTROL | |
| 5. | 306-6662 | [1] | BOX AS-CONTROL | |
| 6. | 306-6665 | [1] | PLATE | |
| 7. | 322-8763 | [1] | HARNESS AS-BOX | |
| | 103-8133 | [1] | KIT-RECEPTACLE(12-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 144-1636 | [12] | PIN-CONNECTOR(14-GA TO 18-GA) | |
| 8. | 3E-4313M | [16] | SCREW-BUTTON HEAD(M4X0.7X8-MM) | |
| 9. | 5C-2890M | [8] | NUT(M6X1-THD) | |
| 10. | 8T-4171M | [6] | BOLT(M6X1X12-MM) | |
| 11. | 9X-8256 | [12] | WASHER(6.6X12X2-MM THK) | |
| | | | |
| | | | PARTS SHOWN IN GRAPHIC(S) WITHOUT A REFERENCE NUMBER ARE NOT SERVICED SEPARATELY |
| | M | | METRIC PART |
