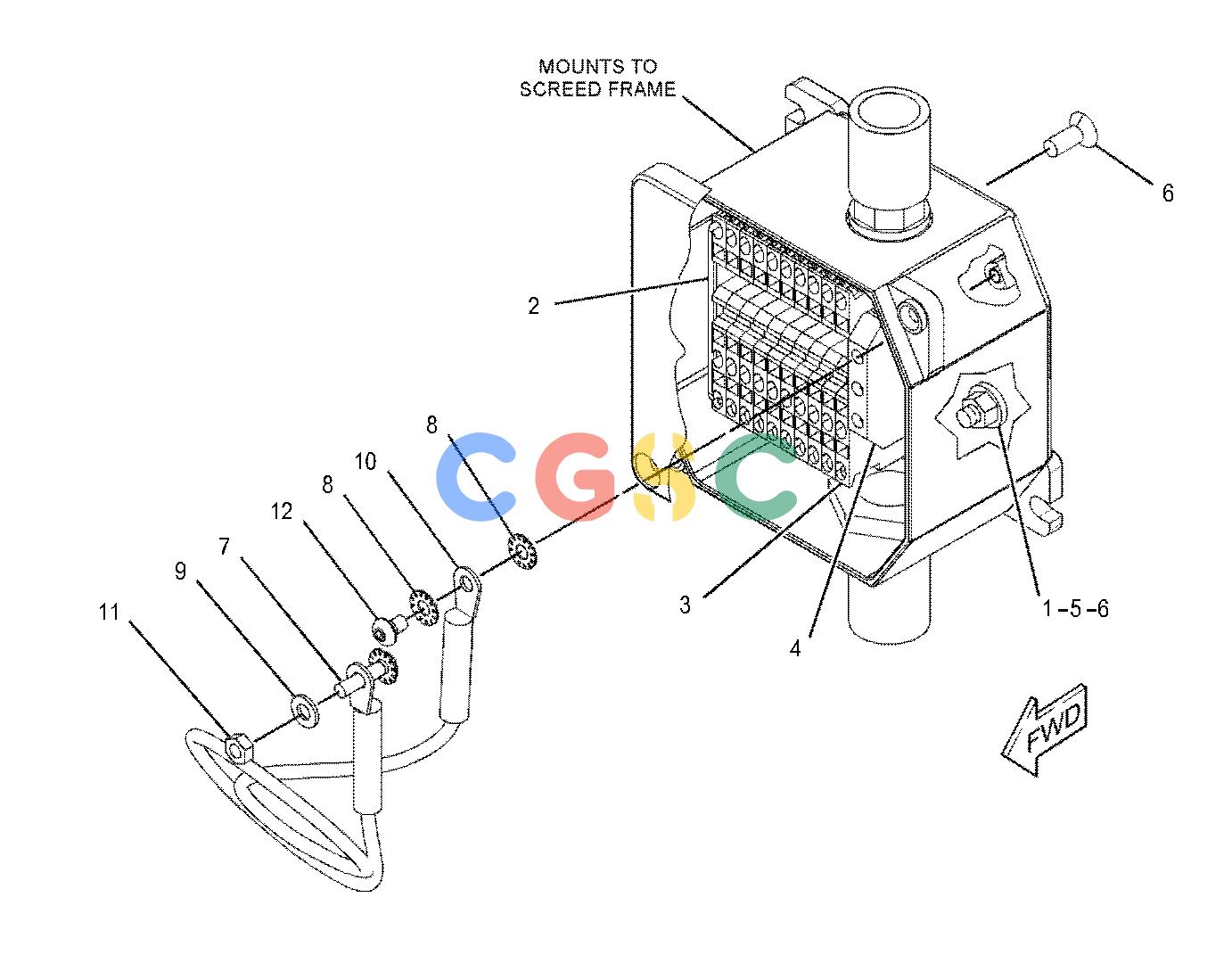

卡特零件查询（AP-655D） 289-5816: BOX GP-JUNCTION
广数供应链运营团队, 17 02月, 2025，浏览：
707 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 9X-8256 | [2] | WASHER(6.6X12X2-MM THK) | |
| 2. | 297-2480 | [1] | SPACER | |
| 3. | 300-2101 | [10] | TERMINAL | |
| 4. | 301-3291 | [1] | TERMINAL | |
| 5. | 5C-2874M | [2] | NUT(M5X0.8-THD) | |
| 6. | 205-2941 | [2] | SCREW-SPECIAL(SELF LOCKING) | |
| 7. | 150-4086M | [1] | SCREW(M4X0.7X16-MM) | |
| 8. | 1H-4393 | [3] | LOCKWASHER | |
| 9. | 096-6166 | [1] | WASHER-HARD(4.5X9X1-MM THK) | |
| 10. | 397-6851 | [1] | WIRE AS(12-GA) | |
| 11. | 5C-8312M | [1] | NUT(M4X0.7-THD) | |
| 12. | 7X-3319M | [1] | SCREW-HEX SOCKET(M4X0.7X6-MM) | |
| | M | | METRIC PART |
