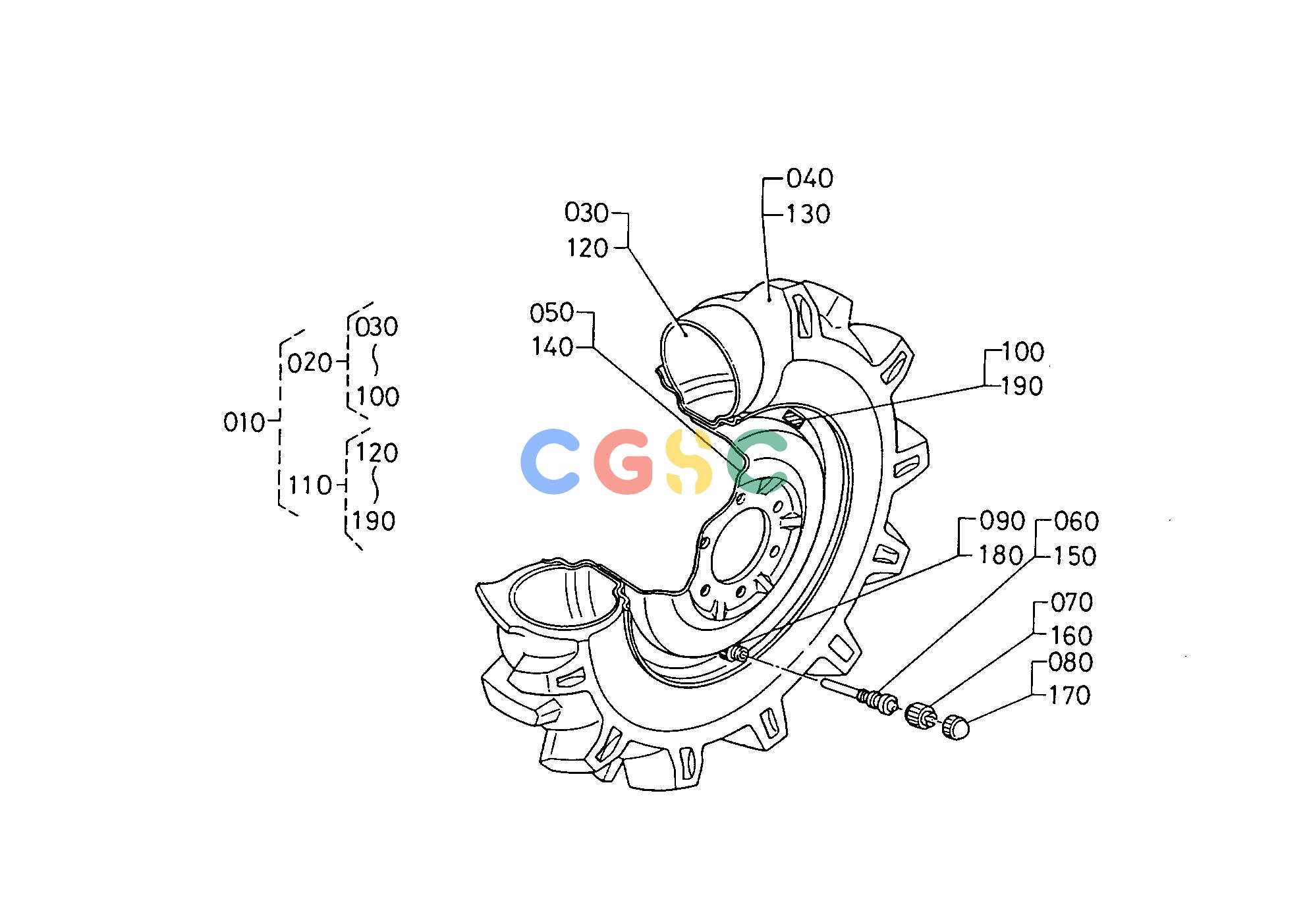

久保田零件查询T10500 FRONT WHEEL (7-16) [OPTION] FRONT WHEELEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
879 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3256044900
|
[1] |
ASSY FRONT WHEEL
|
0.0000(lbs); 0.000
|
| 020. |
3256044810
|
[1] |
ASSY FRONT WHEEL RH
|
0.0000(lbs); 0.000
|
| 030. |
9601723310
|
[1] |
TUBE
|
3.1240(lbs); 1.420
|
| 040. |
3256044830
|
[1] |
TIRE
|
27.5000(lbs); 12.500
|
| 050. |
3529043730
|
[1] |
WHEEL
|
0.0000(lbs); 0.000
|
| 060. |
3215027740
|
[1] |
CORE VALVE
|
0.0066(lbs); 0.003
|
| 070. |
3227027730
|
[1] |
HOUSING VALVE CORE
|
0.0220(lbs); 0.010
|
| 080. |
3824011690
|
[1] |
CAP VALVE
|
0.0044(lbs); 0.002
|
| 090. |
3227027710
|
[1] |
NUT RIM
|
0.0132(lbs); 0.006
|
| 100. |
3256093280
|
[1] |
LABEL RH
|
0.0022(lbs); 0.001
|
| 110. |
3256044820
|
[1] |
ASSY FRONT WHEEL LH
|
0.0000(lbs); 0.000
|
| 120. |
9601723310
|
[1] |
TUBE
|
3.1240(lbs); 1.420
|
| 130. |
3256044830
|
[1] |
TIRE
|
27.5000(lbs); 12.500
|
| 140. |
3529043730
|
[1] |
WHEEL
|
0.0000(lbs); 0.000
|
| 150. |
3215027740
|
[1] |
CORE VALVE
|
0.0066(lbs); 0.003
|
| 160. |
3227027730
|
[1] |
HOUSING VALVE CORE
|
0.0220(lbs); 0.010
|
| 170. |
3824011690
|
[1] |
CAP VALVE
|
0.0044(lbs); 0.002
|
| 180. |
3227027710
|
[1] |
NUT RIM
|
0.0132(lbs); 0.006
|
| 190. |
3256093290
|
[1] |
LABEL LH
|
0.0022(lbs); 0.001
|
