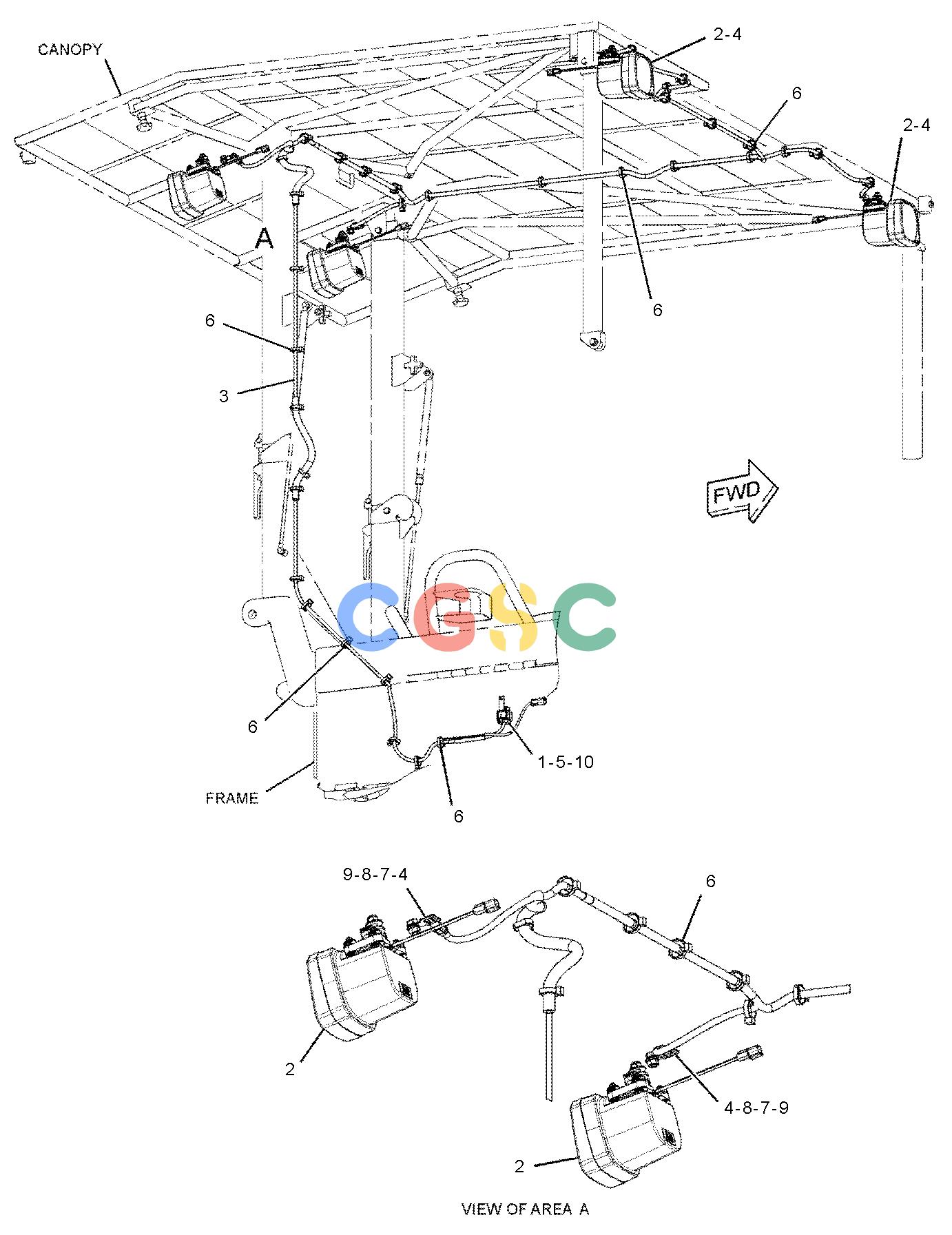

卡特零件查询（AP-655D） 290-6022: LIGHTING GP-FLOOD
广数供应链运营团队, 17 02月, 2025，浏览：
597 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3E-5239 | [1] | RELAY AS(24-VOLT)(FLOODLIGHT) | |
| 2. | 283-8145Y | [4] | LAMP GP-FLOOD(24-VOLT, 35-WATT, HID) | |
| 3. | 290-6021 | [1] | HARNESS AS-LIGHTING | |
| | 9X-3401 | [3] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | | | -OR- |
| | 126-1767 | [3] | PIN-CONNECTOR(14-GA TO 16-GA) | |
| | 3E-5519 | [1] | PLUG AS-CONNECTOR(5-PIN) | |
| | 155-2270 | [4] | KIT-CONNECTING PLUG(2-PIN) | |
| | | | (EACH INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 102-8803 | [1] | KIT-RECEPTACLE(3-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 180-9340 | [8] | SOCKET-CONNECTOR(14-GA TO 18-GA) | |
| | 9X-1056 | [4] | TERMINAL-RECEPTACLE(14-GA TO 16-GA) | |
| | 119-3662E | | TUBE-HEAT SHRINK(10.85-MM DIA)(20-CM) | |
| 4. | 130-5300 | [4] | CLIP | |
| 5. | 5C-9553M | [1] | BOLT(M6X1X16-MM) | |
| 6. | 7K-1181 | [33] | STRAP-CABLE | |
| 7. | 8T-4121 | [2] | WASHER-HARD(11X21X2.5-MM THK) | |
| 8. | 8T-4133M | [2] | NUT(M10X1.5-THD) | |
| 9. | 8T-4191M | [2] | BOLT(M10X1.5X16-MM) | |
| 10. | 8T-4205 | [1] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
