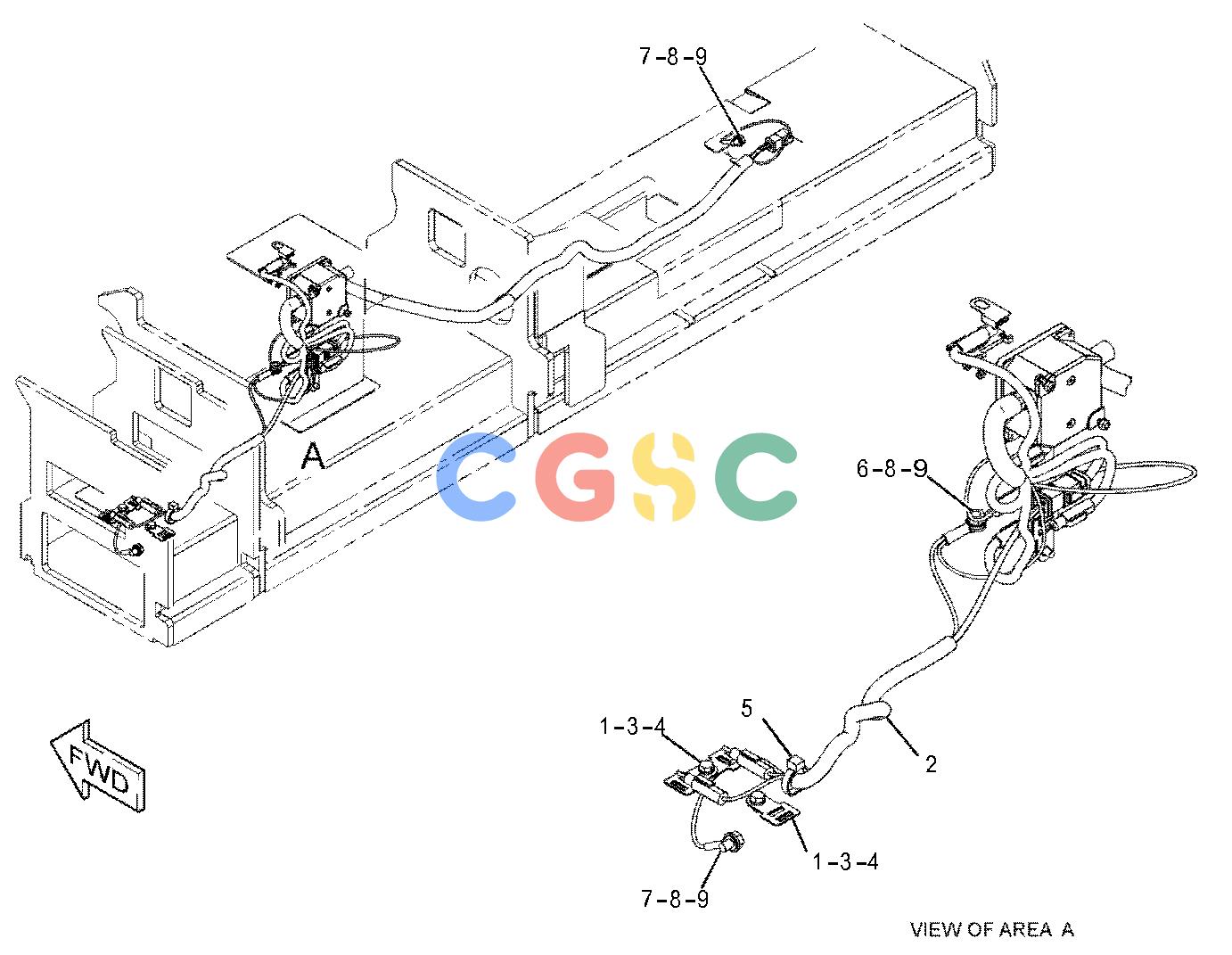

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 130-5300 | [3] | CLIP | |
| 2. | 309-7503Y | [1] | HARNESS AS-WIRING(250-MM EXTENSION, LH) | |
| 3. | 8T-0642M | [2] | BOLT(M8X1.25X14-MM) | |
| 4. | 8T-4224 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| 5. | 7K-1181 | [1] | STRAP-CABLE | |
| 6. | 8T-4133M | [1] | NUT(M10X1.5-THD) | |
| 7. | 6V-8212M | [2] | BOLT(M10X1.5X16-MM) | |
| 8. | 7F-6998 | [3] | LOCKWASHER | |
| 9. | 101-3917 | [5] | WASHER(10.5X21X2-MM THK) | |
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION | |||
