卡特零件查询（AP-655D） 319-7155: WIRING GP-HEATER
广数供应链运营团队, 17 02月, 2025，浏览：
796 次

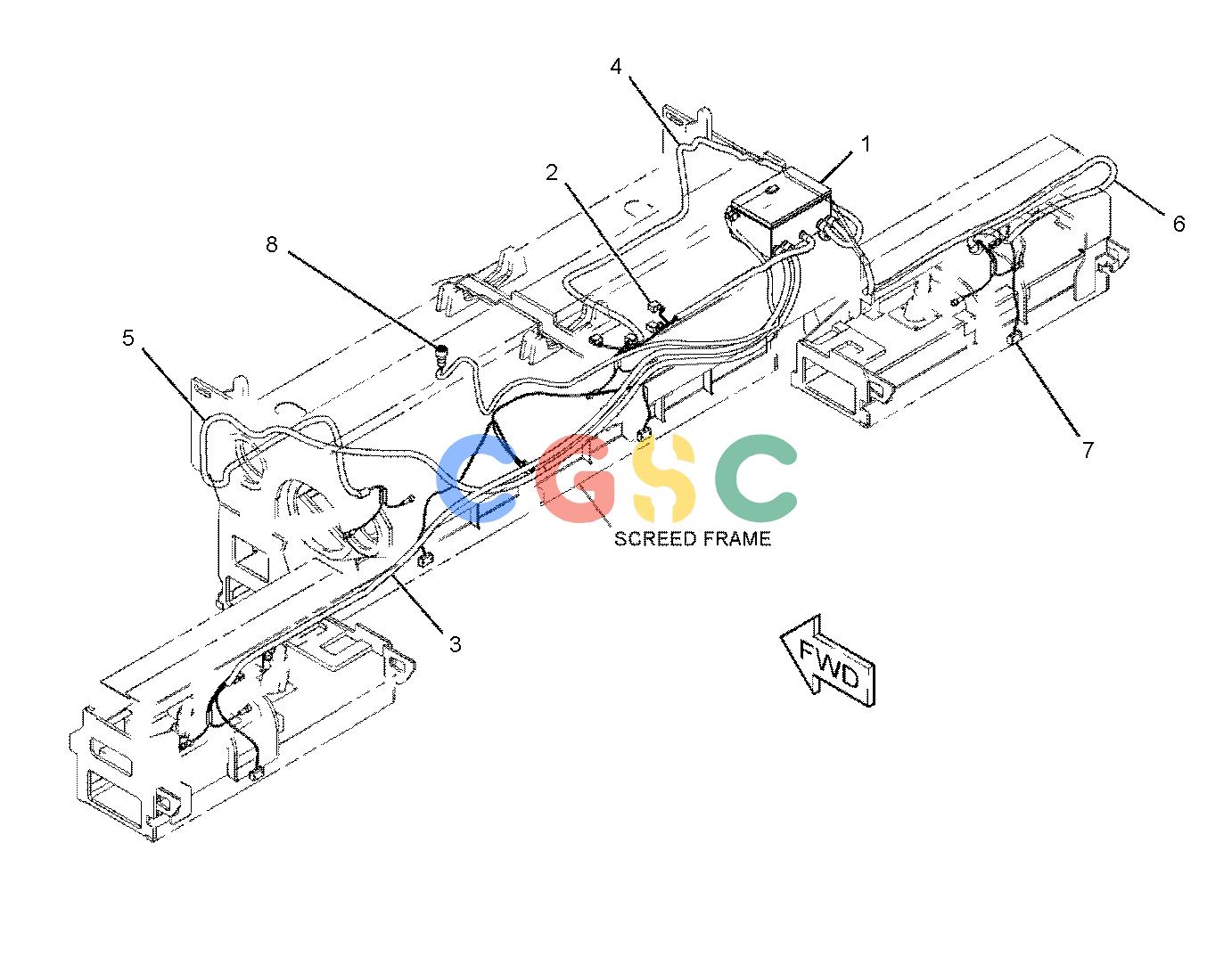

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 306-6666Y | [1] | BOX GP-CONTROL | |
| 2. | 307-9166Y | [1] | WIRING GP-HEATER(LPG) | |
| 3. | 312-5015Y | [1] | WIRING GP-SCREED(SPARK PLUG, SCREED EXT, LH) | |
| 4. | 312-5016Y | [1] | WIRING GP-SCREED(SPARK PLUG, MAIN SCREED, RH) | |
| 5. | 312-5017Y | [1] | WIRING GP-SCREED(SPARK PLUG, MAIN SCREED, LH) | |
| 6. | 312-5019Y | [1] | WIRING GP-SCREED(SPARK PLUG, SCREED EXT, RH) | |
| 7. | 306-6667 | [4] | SENSOR-TEMPERATURE(LPG HEAT) | |
| | | | (EACH INCLUDES) |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 186-3735 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| 8. | 307-9159 | [1] | CABLE AS | |
| | Y | | SEPARATE ILLUSTRATION |
