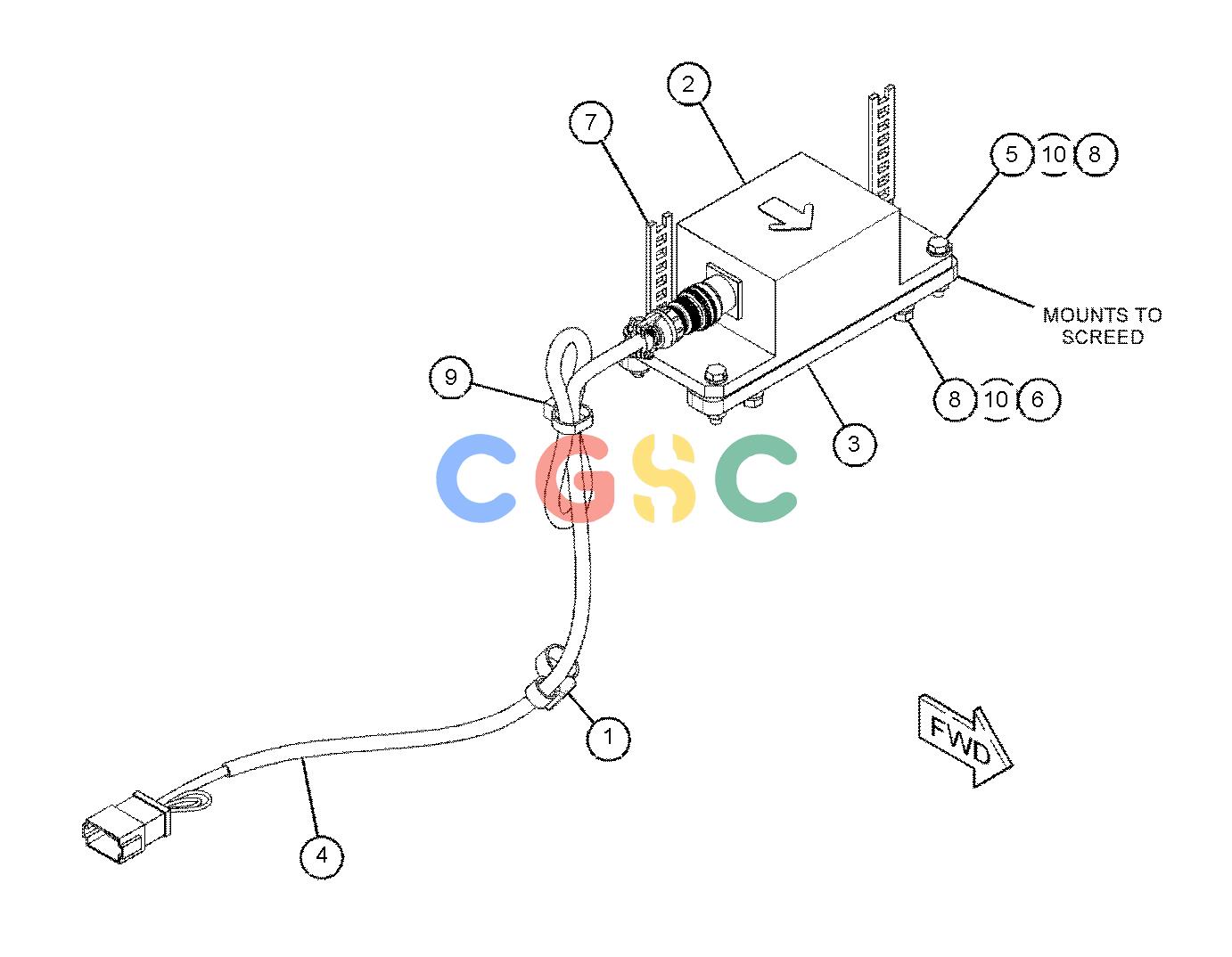

卡特零件查询（AP-655D） 434-1983: SENSOR GP-GRADE
广数供应链运营团队, 17 02月, 2025，浏览：
318 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 177-2215 | [1] | STRAP-DUAL CLAMP | |
| 2. | 513-9079 | [1] | SENSOR AS-POSITION(ANGLE) | |
| | 334-9446 | [2] | CAP-CONNECTOR | |
| 3. | 330-6573 | [1] | PLATE-ADAPTER | |
| 4. | 362-6642 | [1] | HARNESS AS-CONTROL | |
| | 9X-3401 | [8] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | | | -OR- |
| | 126-1767 | [8] | PIN-CONNECTOR(14-GA TO 16-GA) | |
| | 8T-8737 | [4] | PLUG-SEAL | |
| | 102-8801 | [1] | KIT-RECEPTACLE(12-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 5. | 099-3649M | [4] | BOLT(M8X1.25X40-MM) | |
| 6. | 131-3539M | [4] | SCREW-FLAT HEAD(M8X1.25X30-MM) | |
| 7. | 277-1873 | [2] | CLIP(LADDER) | |
| 8. | 5C-7261M | [8] | NUT(M8X1.25-THD) | |
| 9. | 7K-1181 | [1] | STRAP-CABLE | |
| 10. | 8T-4224 | [12] | WASHER-HARD(8.8X16X2-MM THK) | |
| | M | | METRIC PART |
