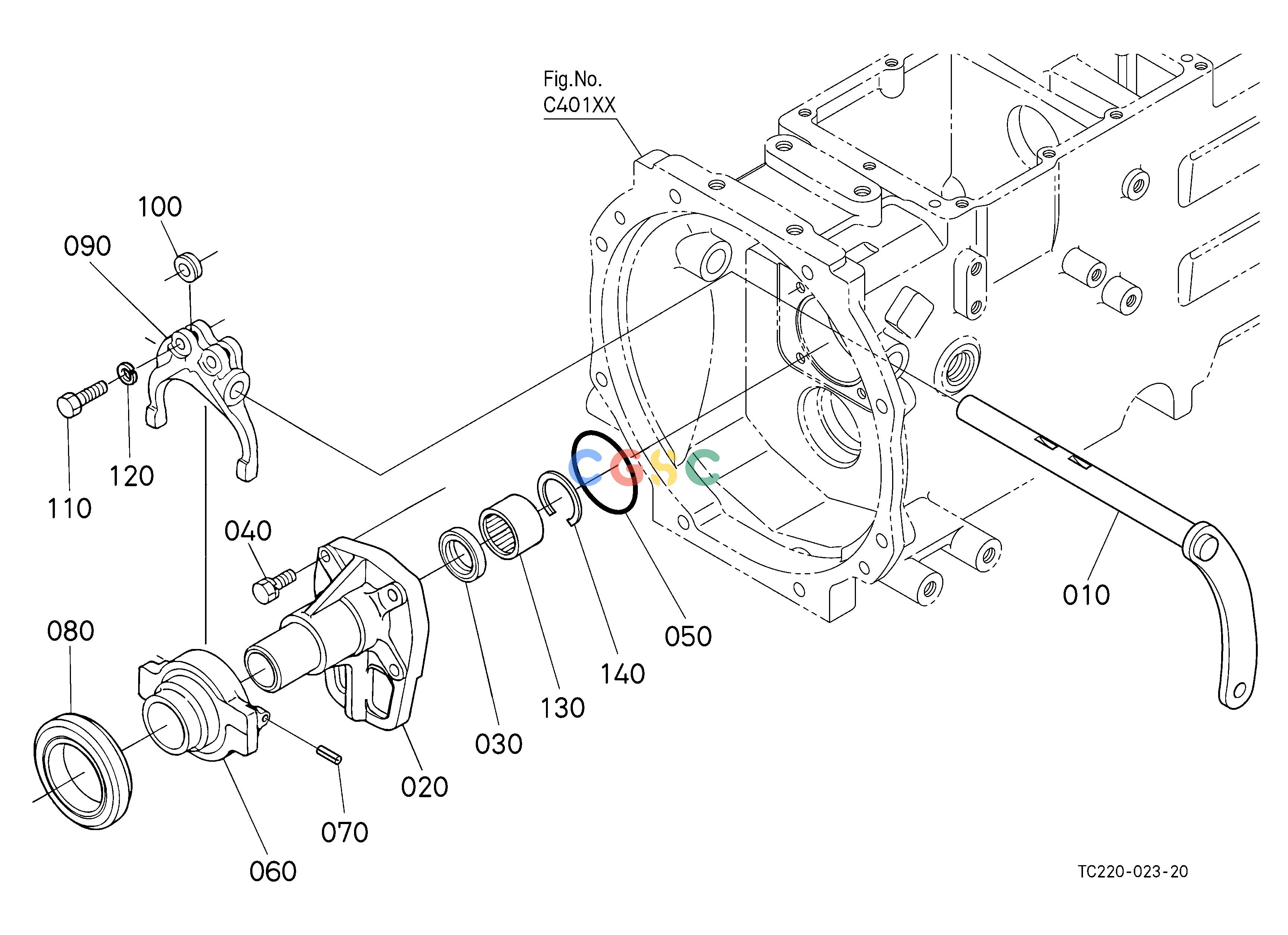

久保田零件查询C20102 CLUTCH LEVER [EXCEPT HST TYPE] CLUTCH/TRANSMISSIONEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
137 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TC22014710
|
[1] |
LEVER,CLUTCH
|
1.2320(lbs); 0.560
|
| 020. |
TC02025510
|
[1] |
CASE,PROPELLER SHAFT
|
0.8690(lbs); 0.395
|
| 030. |
0950035477
|
[1] |
SEAL,OIL
|
0.0264(lbs); 0.012
|
| 040. |
0112350835
|
[4] |
BOLT,SEMS
|
0.0440(lbs); 0.020
|
| 050. |
0481110670
|
[1] |
O-RING
|
0.0022(lbs); 0.001
|
| 060. |
3135114813
|
[1] |
HUB,CLUTCH RELEASE
|
0.9900(lbs); 0.450
|
| 070. |
0541100314
|
[2] |
PIN,SPRING
|
0.0022(lbs); 0.001
|
| 080. |
3843014820
|
[1] |
BEARING,THRUST BALL
|
0.5940(lbs); 0.270
|
| 090. |
TC22014720
|
[1] |
FORK,CLUTCH RELEASE
|
0.7480(lbs); 0.340
|
| 100. |
3115014780
|
[2] |
KEY(FORK)
|
0.0066(lbs); 0.003
|
| 110. |
3135114750
|
[2] |
BOLT
|
0.0374(lbs); 0.017
|
| 120. |
0451250080
|
[2] |
WASHER,SPRING LOCK
|
0.0044(lbs); 0.002
|
| 130. |
0881384820
|
[1] |
BEARING,NEEDLE
|
0.1320(lbs); 0.060
|
| 140. |
3135115460
|
[1] |
CIR-CLIP,INTERNAL
|
0.0088(lbs); 0.004
|
