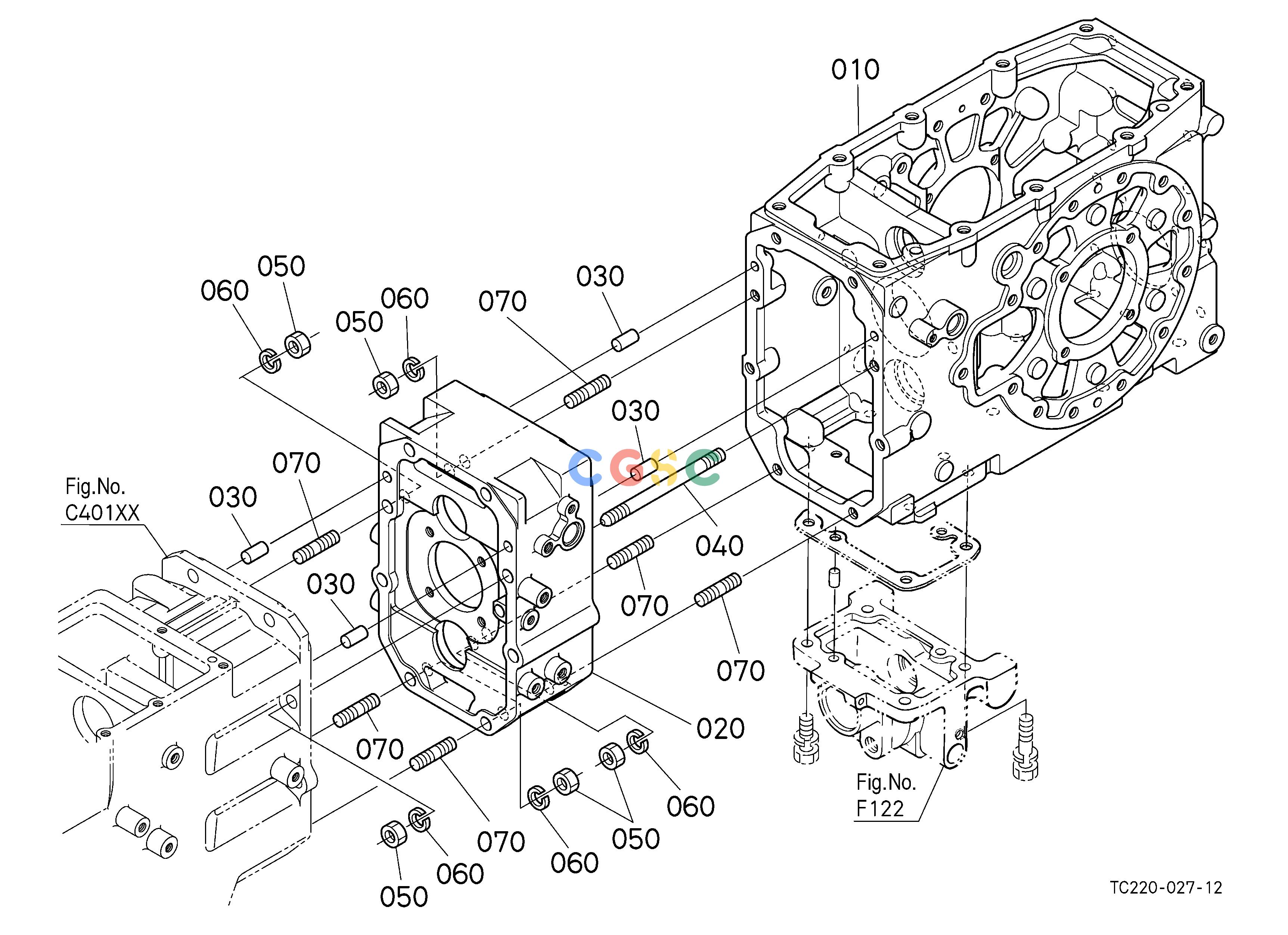

久保田零件查询C42004 TRANSMISSION CASE [EXCEPT HST TYPE] ## NOTE:ORDER BY ALL PARTS OF Fig.No.T11402. CLUTCH/TRANSMISSIONEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
921 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TC22021111
|
[1] |
CASE,TRANSMISSION
|
0.0000(lbs); 0.000
|
| 010. |
TC22021114
|
[1] |
CASE,TRANSMISSION
|
61.8200(lbs); 28.100
|
| 010. |
TC22021117
|
[1] |
CASE,TRANSMISSION
|
61.8200(lbs); 28.100
|
| 010. |
TC22021118
|
[1] |
CASE,TRANSMISSION
|
61.8200(lbs); 28.100
|
| 020. |
TC22021151
|
[1] |
CASE,MID
|
0.0000(lbs); 0.000
|
| 020. |
TC22021154
|
[1] |
CASE,MID
|
22.2200(lbs); 10.100
|
| 030. |
0501201018
|
[4] |
PIN,STRAIGHT
|
0.0264(lbs); 0.012
|
| 040. |
TC22014180
|
[5] |
STUD
|
0.2860(lbs); 0.130
|
| 050. |
0217650120
|
[11] |
HEX.NUT
|
0.0220(lbs); 0.010
|
| 060. |
0451250120
|
[11] |
WASHER,SPRING LOCK
|
0.0066(lbs); 0.003
|
| 070. |
0157461235
|
[6] |
STUD
|
0.0880(lbs); 0.040
|
