久保田零件查询D12504 SPIRAL BEVEL PINION [EXCEPT HST TYPE] CLUTCH/TRANSMISSIONEPC Kubota online

广数供应链运营团队, 17 02月, 2025，浏览： 397 次

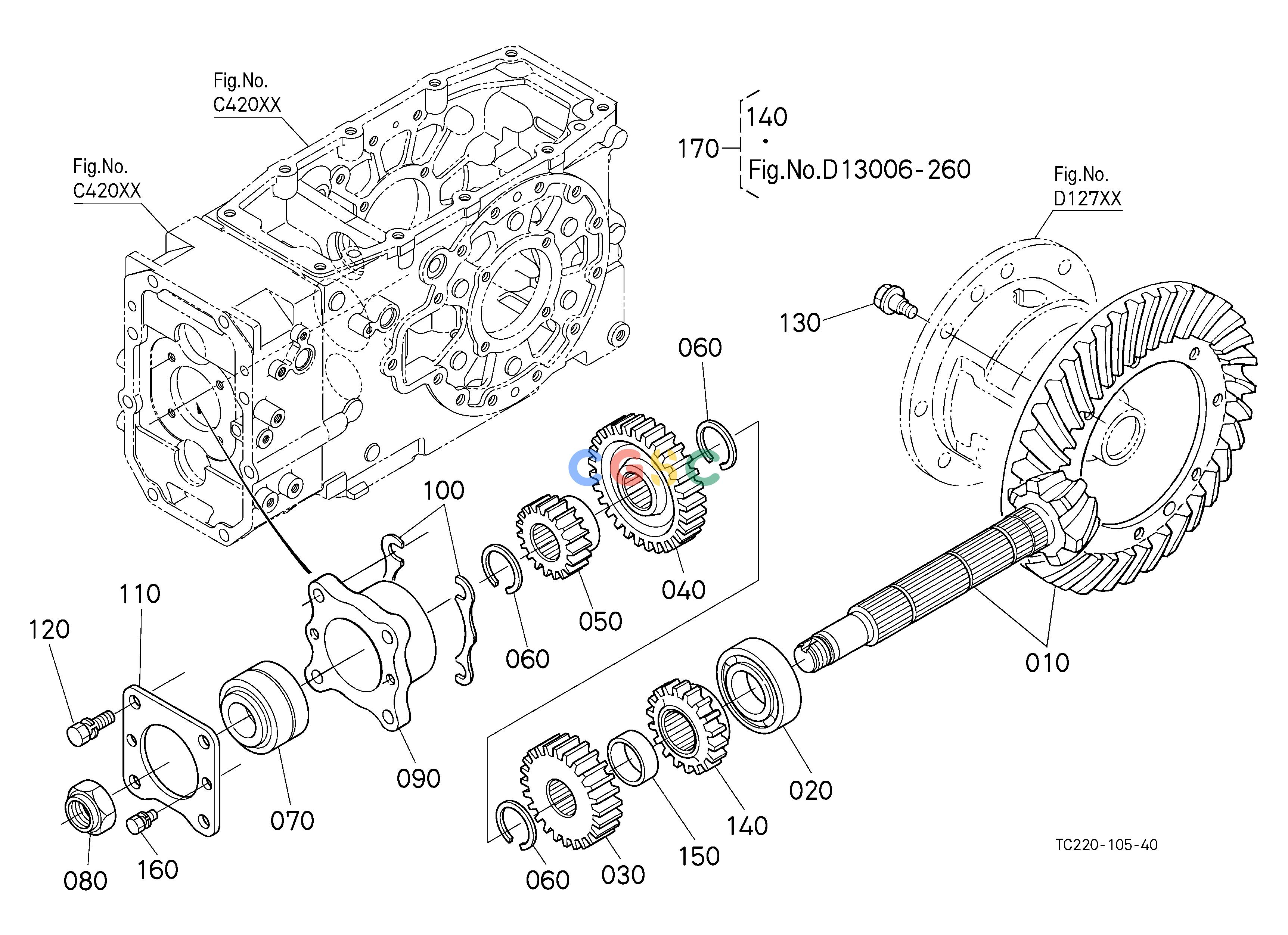

Pos.	Part No	Qty	Parts name	Comments
010.	TC22099340	[1]	GEAR,BEVEL,ASSY(SPIRAL)	6-37T 14.0800(lbs); 6.400
020.	3407022740	[1]	BEARING,ROLLER	1.1220(lbs); 0.510
030.	TC22022040	[1]	GEAR(29,R)	29T 1.9360(lbs); 0.880
040.	TC22022050	[1]	GEAR	42T 1.8260(lbs); 0.830
050.	TC22022060	[1]	GEAR(19,H)	19T 0.8140(lbs); 0.370
060.	T106022882	[3]	CIR-CLIP,EXTERNAL 32.5 SHUTTLE	0.0110(lbs); 0.005
070.	T033022200	[1]	BEARING,TAPER-ROLLER	1.2650(lbs); 0.575
080.	3526023252	[1]	NUT	0.0880(lbs); 0.040
090.	3730022150	[1]	CASE,BEARING	1.2320(lbs); 0.560
100.	3415022610	[2]	SHIM 0.5	0.5mm 0.0220(lbs); 0.010
100.	3415022620	[4]	SHIM 0.2	0.2mm 0.0110(lbs); 0.005
100.	3415022630	[2]	SHIM 0.1	0.1mm 0.0110(lbs); 0.005
110.	3415022170	[1]	COVER,BEARING	ORDER BY REF.No.110 NEW PART.; <=69853 0.3520(lbs); 0.160
110.	3415022173	[1]	COVER,BEARING	; >=69854 0.3520(lbs); 0.160
120.	0113351035	[4]	BOLT,SEMS	0.0660(lbs); 0.030
130.	3780043870	[8]	BOLT	0.0572(lbs); 0.026
140.	TC22015110	[1]	GEAR,4WD	18T, ORDER BY REF.No.170.; <=68578 0.7150(lbs); 0.325
140.	TC22015112	[1]	GEAR,4WD	18T; >=68579 0.7040(lbs); 0.320
150.	TC22022010	[1]	COLLAR	0.0924(lbs); 0.042
160.	0112350816	[2]	BOLT,SEMS	; >=58003 0.0242(lbs); 0.011
170.	TC22095120	[1]	ASSY GEAR	; <=61731 3.0580(lbs); 1.390
170.	TC22095150	[1]	ASSY GEAR	; <=68578 2.7060(lbs); 1.230
