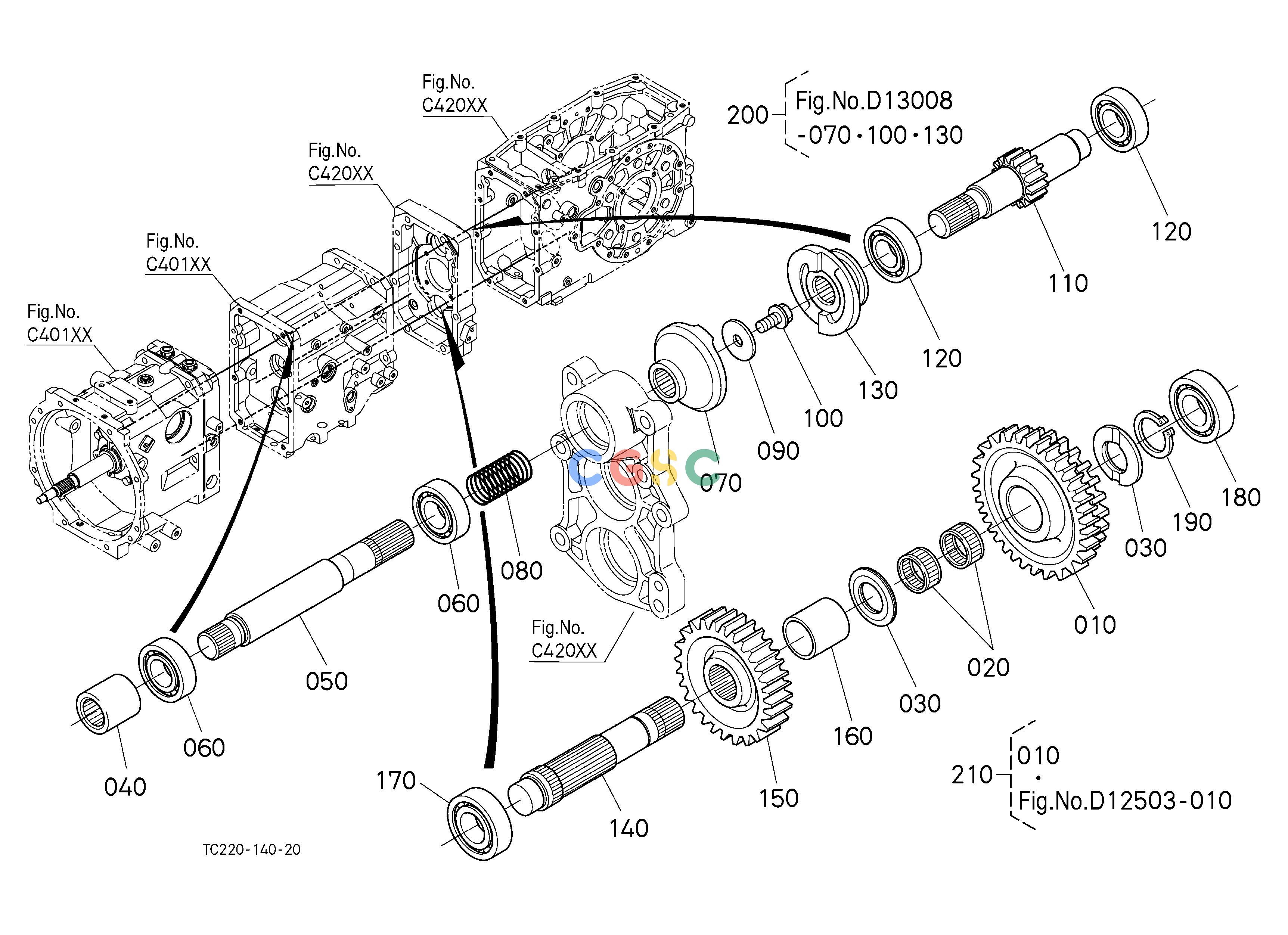

久保田零件查询D13007 PTO COUNTERSHAFT [HST TYPE] [OLD TYPE] ## S.No.<=61731 S.No.<=61731 CLUTCH/TRANSMISSIONEPC Kubota online_久保田Kubota_工程机械

久保田零件查询D13007 PTO COUNTERSHAFT [HST TYPE] [OLD TYPE] ## S.No.<=61731 S.No.;<=61731 CLUTCH/TRANSMISSIONEPC Kubota online

广数供应链运营团队, 17 02月, 2025，浏览： 897 次

Pos.	Part No	Qty	Parts name	Comments
010.	TC22015120	[1]	GEAR	34-25T, ORDER BY REF.No.210. 2.1120(lbs); 0.960
010.	TC22015125	[1]	GEAR	34-25T, OPTION 2.2000(lbs); 1.000
020.	0882253114	[2]	BEARING,NEEDLE	0.0440(lbs); 0.020
030.	3824021760	[2]	COLLAR,THRUST	0.0440(lbs); 0.020
040.	3715021682	[1]	COUPLING	0.5280(lbs); 0.240
050.	TC22053250	[1]	COUNTERSHAFT,PTO	2.2550(lbs); 1.025
060.	TC22053520	[2]	BEARING,BALL	0.2860(lbs); 0.130
070.	3520025240	[1]	CAM,CLUTCH	ORDER BY REF.No.200.; <=58002 1.0670(lbs); 0.485
070.	3520025244	[1]	CAM,CLUTCH	ORDER BY REF.No.200.; >=58003 1.0670(lbs); 0.485
080.	TA24051470	[1]	SPRING	0.1276(lbs); 0.058
090.	4133076120	[1]	WASHER	0.0550(lbs); 0.025
100.	TA14023950	[1]	BOLT	0.0528(lbs); 0.024
110.	TC22053500	[1]	GEAR-SHAFT,PTO	16T 1.9580(lbs); 0.890
120.	TC22053520	[2]	BEARING,BALL	0.2860(lbs); 0.130
130.	TC22053411	[1]	CAM,PTO CLUTCH	ORDER BY REF.No.200.; <=58002 0.0000(lbs); 0.000
130.	TC22053412	[1]	CAM,PTO CLUTCH	ORDER BY REF.No.200.; >=58003 1.1770(lbs); 0.535
140.	TC22053681	[1]	SHAFT,DRIVE	; <=59255 0.0000(lbs); 0.000
140.	TC22053683	[1]	SHAFT,DRIVE	; >=59256 0.0000(lbs); 0.000
150.	TC22053610	[1]	GEAR,PTO	27T 1.8700(lbs); 0.850
160.	TC22053620	[1]	COLLAR,PTO DRIVE	0.1650(lbs); 0.075
170.	3741057190	[1]	BEARING,BALL	0.3080(lbs); 0.140
180.	TC22022140	[1]	BEARING,BALL	0.2816(lbs); 0.128
190.	3715021551	[1]	CIR-CLIP,EXTERNAL	0.0110(lbs); 0.005
200.	TC22099990	[1]	KIT CAM	OPTION 2.0900(lbs); 0.950
210.	TC22095120	[1]	ASSY GEAR	OPTION 3.0580(lbs); 1.390
