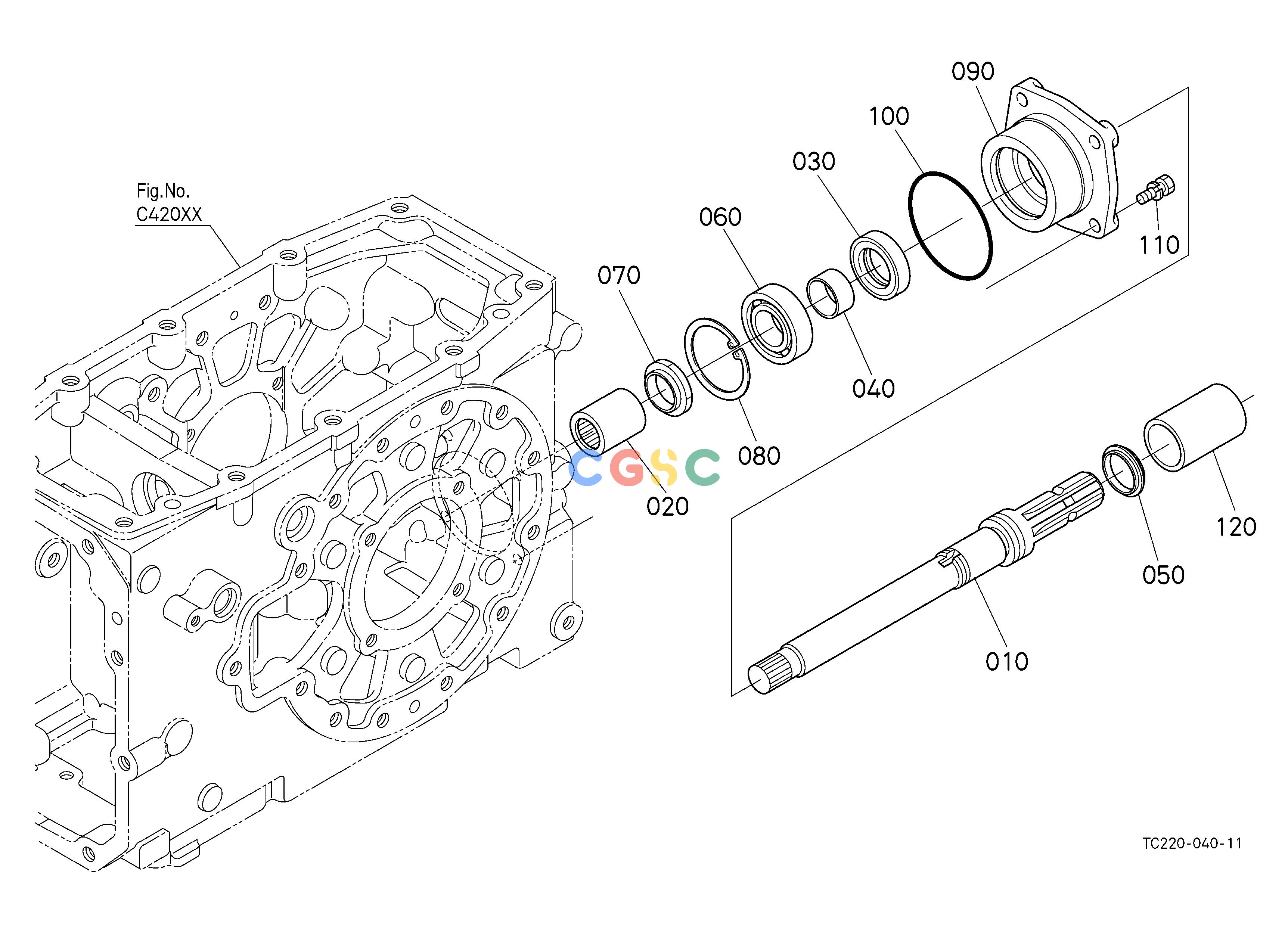

久保田零件查询D13502 PTO SHAFT [OLD TYPE] ## S.No.<=61731 S.No.;<=61731 CLUTCH/TRANSMISSIONEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
959 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3242025313
|
[1] |
SHAFT,PTO
|
4.2680(lbs); 1.940
|
| 020. |
3715021682
|
[1] |
COUPLING
|
0.5280(lbs); 0.240
|
| 030. |
3715025360
|
[1] |
SEAL,OIL
|
0.0550(lbs); 0.025
|
| 040. |
3730025350
|
[1] |
COLLAR,OIL SEAL
|
0.0704(lbs); 0.032
|
| 050. |
3824025370
|
[1] |
SLINGER
|
0.0110(lbs); 0.005
|
| 060. |
0810106206
|
[1] |
BEARING,BALL
|
0.4290(lbs); 0.195
|
| 070. |
3415025320
|
[1] |
NUT
|
0.0660(lbs); 0.030
|
| 080. |
0461100620
|
[1] |
CIR-CLIP,INTERNAL
|
0.0242(lbs); 0.011
|
| 090. |
3715025411
|
[1] |
CASE,BEARING
|
0.0000(lbs); 0.000
|
| 090. |
3715025414
|
[1] |
CASE,BEARING
|
2.2440(lbs); 1.020
|
| 090. |
3715025415
|
[1] |
CASE,BEARING
|
2.2440(lbs); 1.020
|
| 100. |
0481150800
|
[1] |
O RING
|
0.0066(lbs); 0.003
|
| 110. |
0112350820
|
[4] |
BOLT,SEMS
|
0.0242(lbs); 0.011
|
| 120. |
3122025820
|
[1] |
CAP
|
0.1210(lbs); 0.055
|
