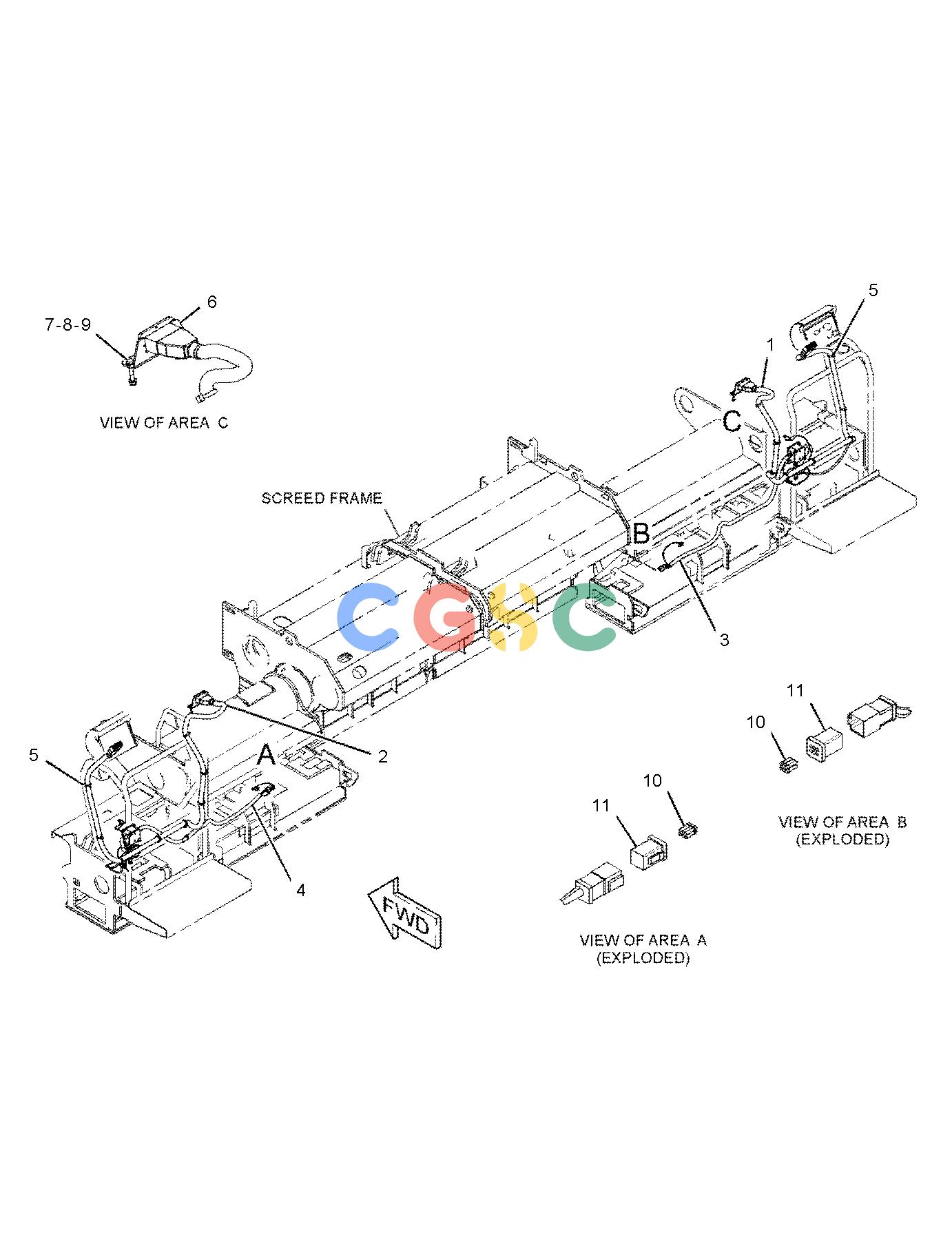

卡特零件查询（AP-655D） 304-9104: WIRING GP-SCREED
广数供应链运营团队, 17 02月, 2025，浏览：
864 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 304-4670Y | [1] | HARNESS AS-BOX(RH)(RH) | |
| 2. | 304-4671Y | [1] | HARNESS AS-BOX(LH)(LH) | |
| 3. | 304-9102Y | [1] | WIRING GP-HEATER(RH) | |
| 4. | 304-9103Y | [1] | WIRING GP-HEATER(LH) | |
| 5. | 7K-1181 | [16] | STRAP-CABLE | |
| 6. | 299-7249 | [2] | BRACKET | |
| 7. | 6V-3918M | [4] | BOLT(M8X1.25X50-MM) | |
| 8. | 131-3540M | [4] | LOCKNUT(M8X1.25-THD) | |
| 9. | 8T-4224 | [8] | WASHER-HARD(8.8X16X2-MM THK) | |
| 10. | 8T-8737 | [12] | PLUG-SEAL | |
| 11. | 155-2274 | [2] | KIT-CONNECTING PLUG(6-PIN) | |
| | | | (INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
