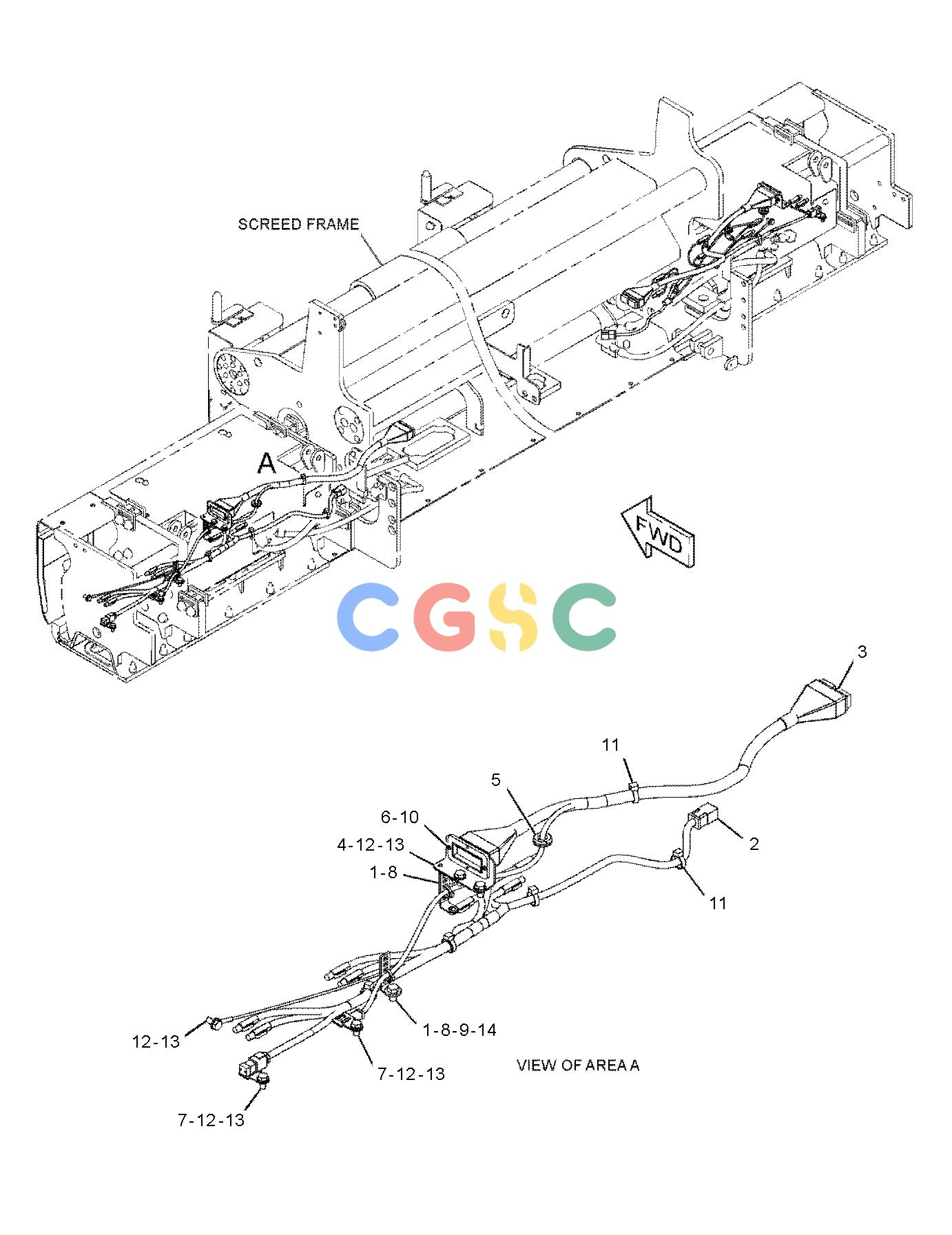

卡特零件查询（AP-655D） 359-1037: WIRING GP-SCREED
广数供应链运营团队, 17 02月, 2025，浏览：
523 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3S-2093 | [3] | STRAP-CABLE | |
| 2. | 354-2413 | [2] | HARNESS AS-HEATER | |
| | | | (EACH INCLUDES) |
| | 7T-0093 | [3] | PIN-CONNECTOR(12-GA TO 14-GA) | |
| | 129-7163 | [8] | PLUG AS-CONNECTOR(1-PIN) | |
| | 177-9648 | [1] | KIT-CONNECTING PLUG(2-PIN) | |
| | | | (INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 8T-8737 | [1] | PLUG-SEAL | |
| | 177-9653 | [1] | KIT-RECEPTACLE(4-PIN) | |
| | 7T-0094 | [2] | SOCKET-CONNECTOR(12-GA TO 14-GA) | |
| | 8N-1541 | [8] | SOCKET-CONNECTOR(12-GA TO 14-GA) | |
| | 2L-8069 | [1] | TERMINAL-RING(2-GA TO 10-GA, 3/8-IN SCREW) | |
| | 119-3662E | | TUBE-HEAT SHRINK(10.85-MM DIA)(13-CM) | |
| 3. | 354-2414 | [2] | HARNESS AS-SCREED | |
| | | | (EACH INCLUDES) |
| | 6I-4348 | [2] | BOOT(40-PIN) | |
| | 9X-3401 | [31] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 155-2270 | [1] | KIT-CONNECTING PLUG(2-PIN) | |
| | | | (INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 9X-0141 | [1] | PLUG AS-CONNECTOR(40-PIN) | |
| | 3E-4367 | [1] | RING-RETAINING | |
| | 3E-8557M | [1] | BOLT(M5X0.8X39.37-MM) | |
| | 9X-3490 | [2] | SEAL-CONNECTOR(40-PIN) | |
| | 8T-8737 | [14] | PLUG-SEAL | |
| | 9X-1343 | [1] | RECEPTACLE AS-CONNECTOR(40-PIN) | |
| | 180-9340 | [37] | SOCKET-CONNECTOR(14-GA TO 18-GA) | |
| | 108-1304E | | TUBE-HEAT SHRINK(33-MM DIA)(32-CM) | |
| 4. | 354-2415 | [2] | PLATE AS | |
| 5. | 061-8844 | [2] | GROMMET | |
| 6. | 096-6166 | [4] | WASHER-HARD(4.5X9X1-MM THK) | |
| 7. | 130-5300 | [6] | CLIP | |
| 8. | 352-3969 | [3] | CLIP(LADDER) | |
| 9. | 5P-1076 | [1] | WASHER-HARD(13.5X30X4-MM THK) | |
| 10. | 6V-9491M | [4] | SCREW-MACHINE(M4X0.7X20-MM) | |
| 11. | 7K-1181 | [9] | STRAP-CABLE | |
| 12. | 8T-4121 | [9] | WASHER-HARD(11X21X2.5-MM THK) | |
| 13. | 8T-4137M | [9] | BOLT(M10X1.5X20-MM) | |
| 14. | 8T-4179M | [1] | BOLT(M12X1.75X20-MM) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
