卡特零件查询（AP-655D） 270-8888: PLATE & HEATER GP-SCREED
广数供应链运营团队, 17 02月, 2025，浏览：
1001 次

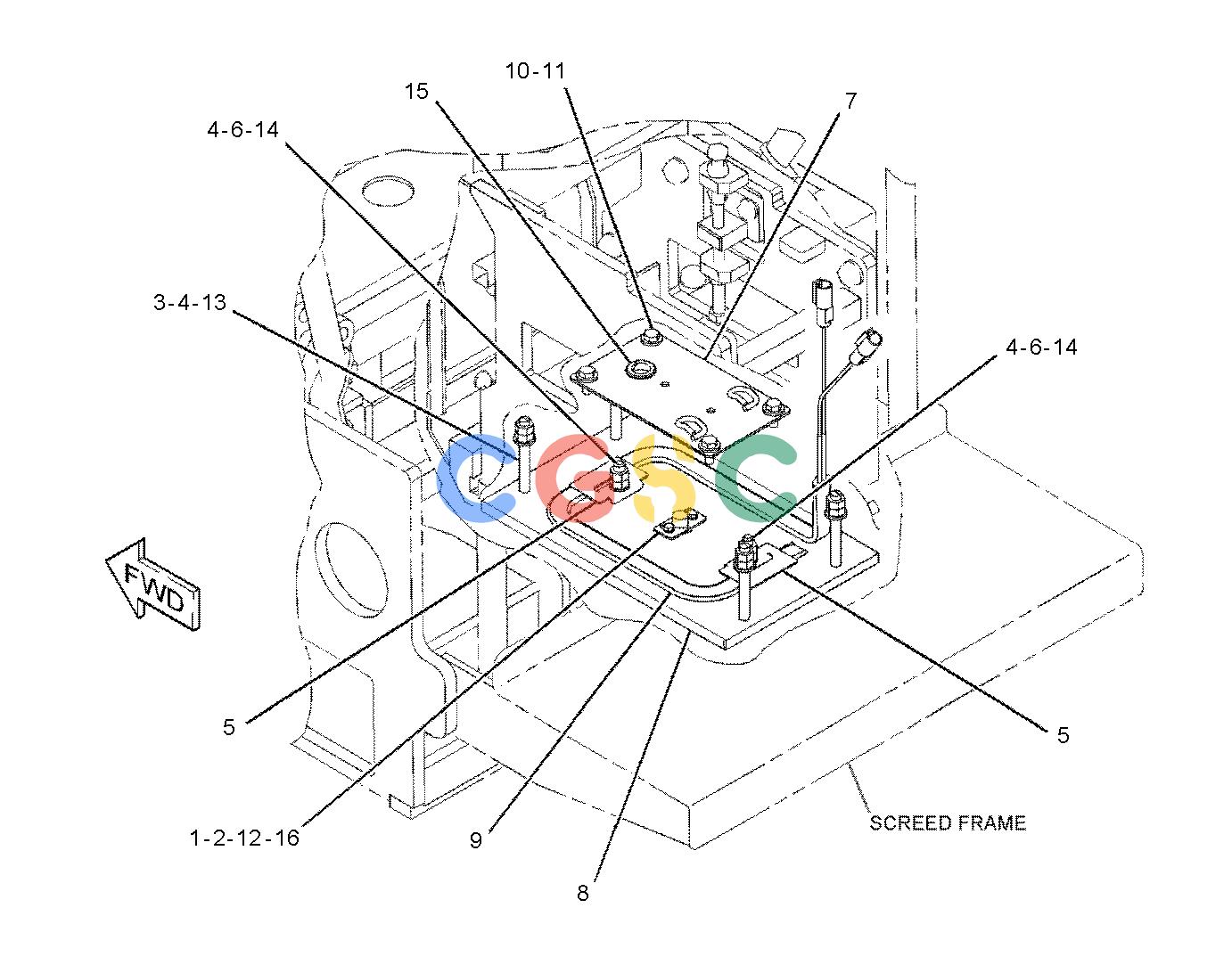

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 229-3138 | [2] | SENSOR GP-TEMPERATURE(SCREED HEAT) | |
| | | | (EACH INCLUDES) |
| | 186-3735 | [1] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 9X-1813E | | SLEEVE(56-CM) | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 2. | 245-9690 | [2] | PLATE | |
| 3. | 245-9693M | [8] | STUD(M12X1.75X100-MM) | |
| 4. | 248-9997M | [24] | NUT-BRASS(M12X1.75-THD) | |
| 5. | 272-0796 | [4] | PLATE | |
| 6. | 276-5733 | [4] | STUD(M12X1.75X58-MM) | |
| 7. | 315-3696 | [2] | COVER AS-SUPPORT | |
| 8. | 299-7238 | [2] | PLATE-SCREED | |
| 9. | 350-1494 | [2] | HEATER AS-SCREED(240-VOLT, 1000-WATT) | |
| | | | (EACH INCLUDES) |
| | 129-7164 | [2] | RECEPTACLE AS-CONNECTOR(1-PIN) | |
| 10. | 7X-7729 | [8] | WASHER(11X25X3-MM THK) | |
| 11. | 8T-4136M | [8] | BOLT(M10X1.5X25-MM) | |
| 12. | 8T-4138M | [4] | BOLT(M6X1X20-MM) | |
| 13. | 8T-4223 | [8] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 14. | 8T-5360 | [4] | WASHER(12X22.5X2.5-MM THK) | |
| 15. | 9P-0719 | [2] | GROMMET | |
| 16. | 9X-8256 | [4] | WASHER(6.6X12X2-MM THK) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
