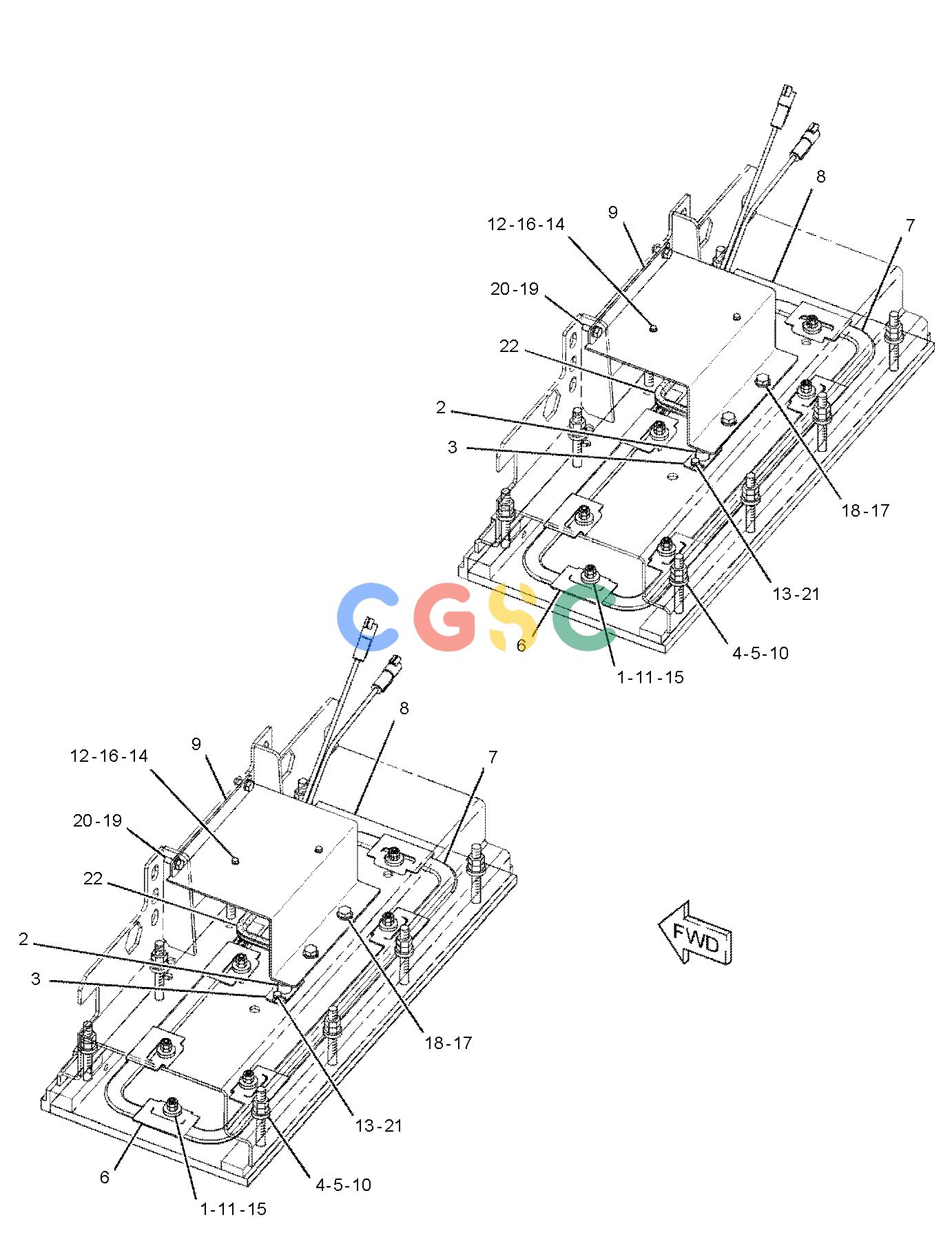

卡特零件查询（AP-655D） 328-9579: PLATE & HEATER GP-SCREED
广数供应链运营团队, 17 02月, 2025，浏览：
338 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2W-9403M | [14] | STUD | |
| 2. | 229-3138 | [2] | SENSOR GP-TEMPERATURE(SCREED HEAT) | |
| | | | (EACH INCLUDES) |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 9X-3401 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 9X-1813E | | SLEEVE(57-CM) | |
| 3. | 245-9690 | [2] | PLATE | |
| 4. | 245-9693M | [16] | STUD(M12X1.75X100-MM) | |
| 5. | 248-9997M | [32] | NUT-BRASS(M12X1.75-THD) | |
| 6. | 272-0796 | [14] | PLATE | |
| 7. | 309-1513 | [2] | HEATER AS(240-VOLT, 3300-WATT) | |
| | | | (EACH INCLUDES) |
| | 129-7164 | [2] | RECEPTACLE AS-CONNECTOR(1-PIN) | |
| 8. | 328-9583 | [2] | PLATE | |
| 9. | 328-9586 | [2] | COVER | |
| 10. | 039-8557 | [16] | WASHER(13X26X6-MM THK) | |
| 11. | 194-7183 | [28] | NUT(M8X1.25-THD) | |
| 12. | 5C-2874M | [4] | NUT(M5X0.8-THD) | |
| 13. | 5C-9553M | [4] | BOLT(M6X1X16-MM) | |
| 14. | 7I-2273M | [4] | BOLT(M5X0.8X16-MM) | |
| 15. | 7X-0613 | [14] | WASHER-HARD(8.8X25.5X5-MM THK) | |
| 16. | 8T-0328 | [8] | WASHER-HARD(5.5X10X1-MM THK) | |
| 17. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| 18. | 8T-4136M | [4] | BOLT(M10X1.5X25-MM) | |
| 19. | 8T-4189M | [4] | BOLT(M8X1.25X20-MM) | |
| 20. | 8T-4224 | [4] | WASHER-HARD(8.8X16X2-MM THK) | |
| 21. | 9X-8256 | [4] | WASHER(6.6X12X2-MM THK) | |
| 22. | 6V-5746D | | TRIM(0.1-M EACH) | |
| | D | | ORDER BY THE METER |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
