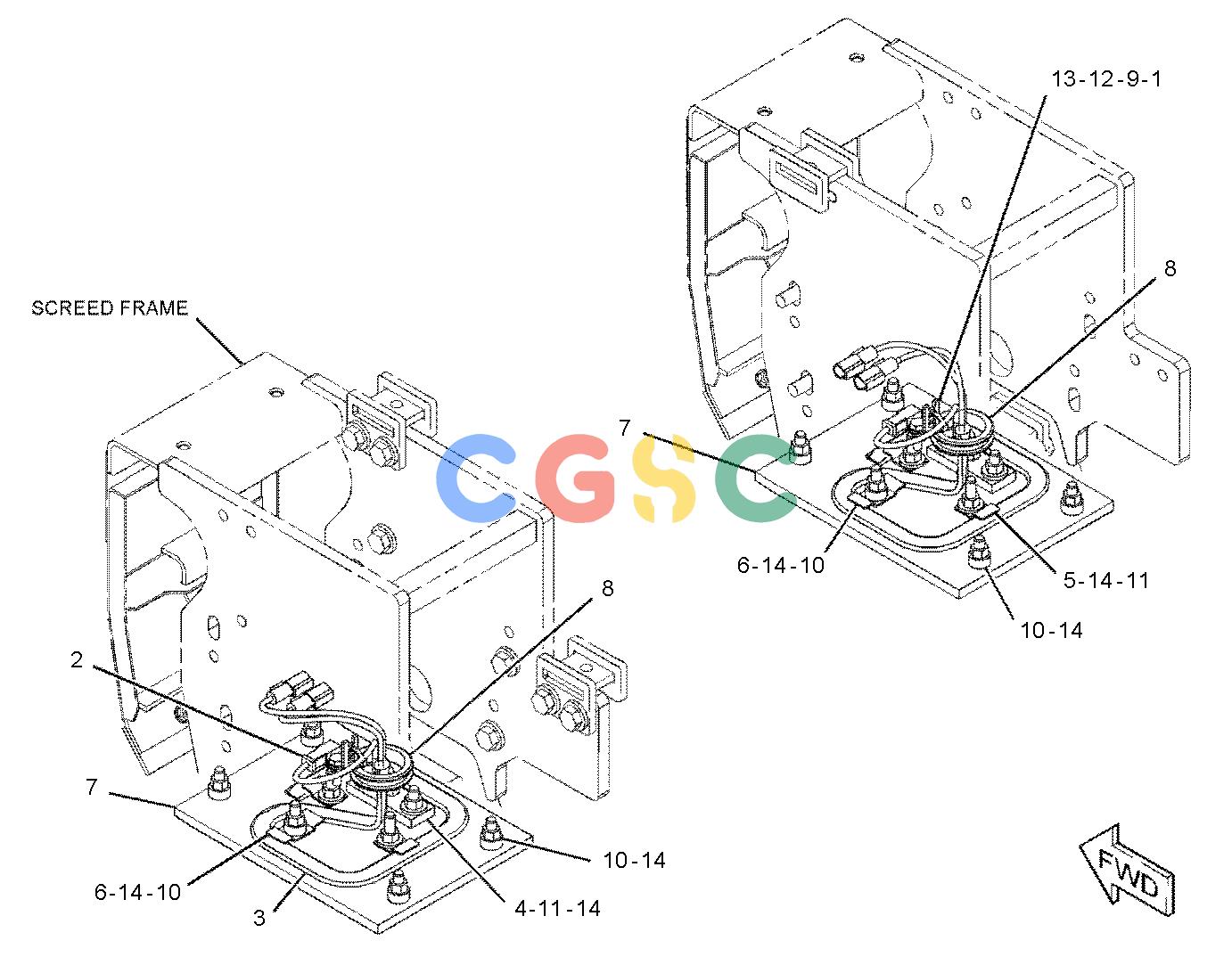

卡特零件查询（AP-655D） 353-9551: PLATE & HEATER GP-SCREED
广数供应链运营团队, 17 02月, 2025，浏览：
367 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3S-2093 | [2] | STRAP-CABLE | |
| 2. | 336-2012 | [2] | SENSOR GP-TEMPERATURE(SCREED HEAT) | |
| | | | (EACH INCLUDES) |
| | 9X-3401 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 3. | 353-9553 | [2] | HEATER AS-SCREED(240-VOLT, 2200-WATT) | |
| | | | (EACH INCLUDES) |
| | 129-7164 | [2] | RECEPTACLE AS-CONNECTOR(1-PIN) | |
| 4. | 355-0165 | [2] | PLATE | |
| 5. | 360-4087 | [4] | CLAMP | |
| 6. | 361-5408 | [2] | CLAMP | |
| 7. | 362-8210 | [2] | PLATE GP-SCREED(EXTENDER) | |
| | | | (EACH INCLUDES) |
| | 350-7866M | [9] | STUD(M12X1.75X58-MM) | |
| | 353-9552 | [1] | PLATE | |
| 8. | 093-2065 | [2] | GROMMET | |
| 9. | 132-5789 | [2] | CLIP(LADDER) | |
| 10. | 145-5181 | [10] | SPACER(13.5X25X12-MM THK) | |
| 11. | 5P-1076 | [8] | WASHER-HARD(13.5X30X4-MM THK) | |
| 12. | 8T-4121 | [2] | WASHER-HARD(11X21X2.5-MM THK) | |
| 13. | 8T-4195M | [2] | BOLT(M10X1.5X30-MM) | |
| 14. | 8T-4244M | [18] | NUT(M12X1.75-THD) | |
| | M | | METRIC PART |
