卡特零件查询（AP-655D） 383-6702: PLATE & HEATER GP-SCREED
广数供应链运营团队, 17 02月, 2025，浏览：
880 次

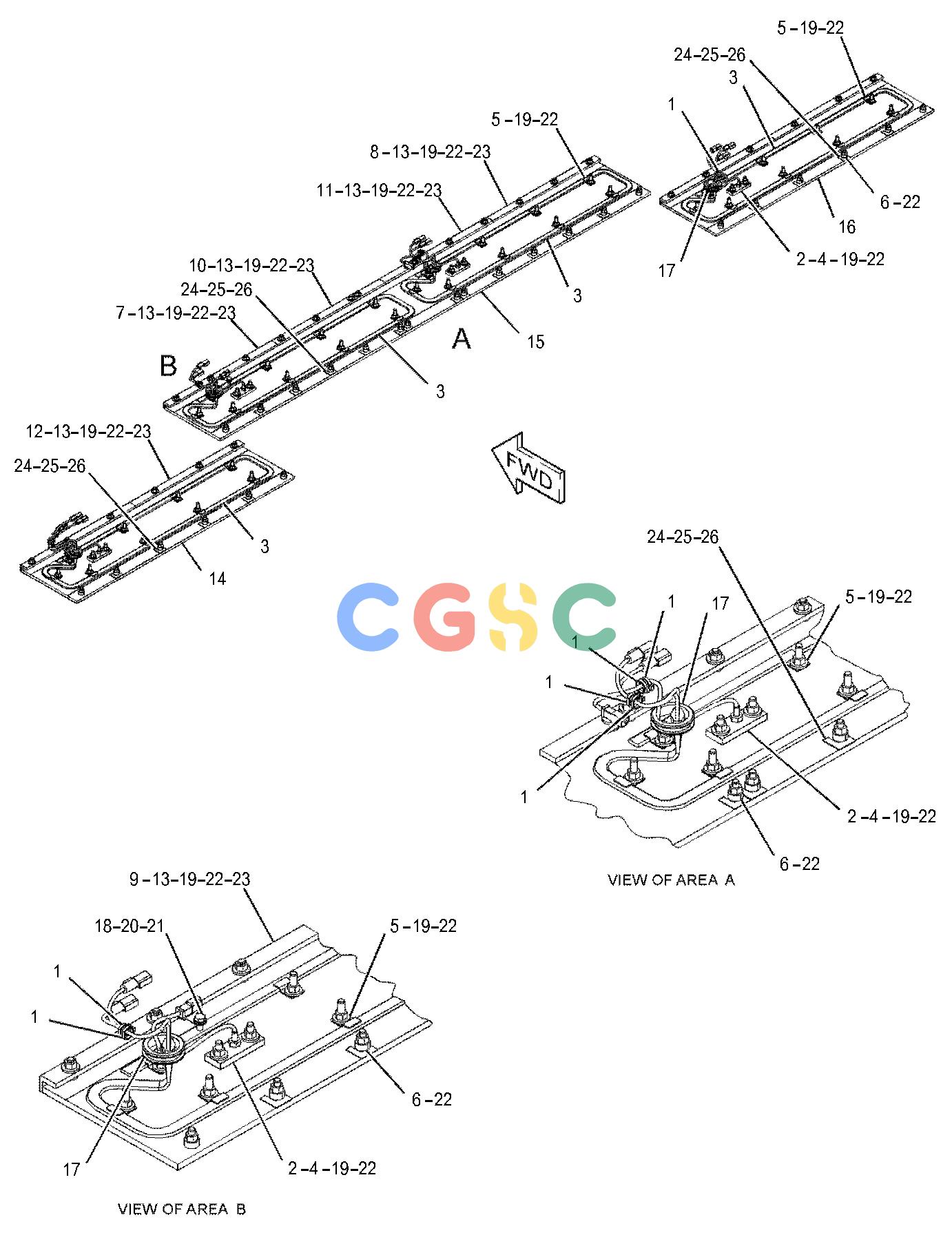

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3S-2093 | [14] | STRAP-CABLE | |
| 2. | 336-2012 | [4] | SENSOR GP-TEMPERATURE(SCREED HEAT) | |
| | | | (EACH INCLUDES) |
| | 9X-3401 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 3. | 351-0076 | [4] | HEATER AS-SCREED(240-VOLT, 3750-WATT) | |
| | | | (EACH INCLUDES) |
| | 129-7164 | [2] | RECEPTACLE AS-CONNECTOR(1-PIN) | |
| 4. | 355-0165 | [4] | PLATE | |
| 5. | 360-4087 | [36] | CLAMP | |
| 6. | 370-9563 | [26] | SPACER(13.5X25X12-MM THK) | |
| 7. | 377-6164 | [1] | BAR-WEAR | |
| 8. | 377-6165 | [1] | BAR-WEAR | |
| 9. | 377-6166 | [2] | BAR-WEAR | |
| 10. | 378-1501 | [1] | BAR-WEAR | |
| 11. | 378-1502 | [1] | BAR-WEAR | |
| 12. | 378-1503 | [2] | BAR-WEAR | |
| 13. | 380-6293B | [26] | SHIM(0.5-MM THK) | |
| 14. | 383-6703 | [1] | PLATE GP-SCREED(EXTENDER, LH) | |
| | 350-7866M | [23] | STUD(M12X1.75X58-MM) | |
| | 377-8848 | [1] | PLATE-SCREED | |
| 15. | 383-6704 | [1] | PLATE GP-SCREED(MAIN) | |
| | 350-7866M | [50] | STUD(M12X1.75X58-MM) | |
| | 377-8847 | [1] | PLATE-SCREED | |
| 16. | 383-6705 | [1] | PLATE GP-SCREED(EXTENDER, RH) | |
| | 350-7866M | [23] | STUD(M12X1.75X58-MM) | |
| | 377-8849 | [1] | PLATE-SCREED | |
| 17. | 093-2065 | [4] | GROMMET | |
| 18. | 130-5300 | [1] | CLIP | |
| 19. | 5P-1076 | [70] | WASHER-HARD(13.5X30X4-MM THK) | |
| 20. | 8T-4121 | [1] | WASHER-HARD(11X21X2.5-MM THK) | |
| 21. | 8T-4137M | [1] | BOLT(M10X1.5X20-MM) | |
| 22. | 8T-4244M | [96] | NUT(M12X1.75-THD) | |
| 23. | 8T-7971 | [26] | WASHER-HARD(13.5X25.5X5-MM THK) | |
| 24. | 8I-0888B | [20] | SHIM(0.01-IN THK) | |
| 25. | 8I-0889B | [20] | SHIM(0.02-IN THK) | |
| 26. | 8I-0890B | [20] | SHIM(0.064-IN THK) | |
| | B | | USE AS REQUIRED |
| | M | | METRIC PART |
