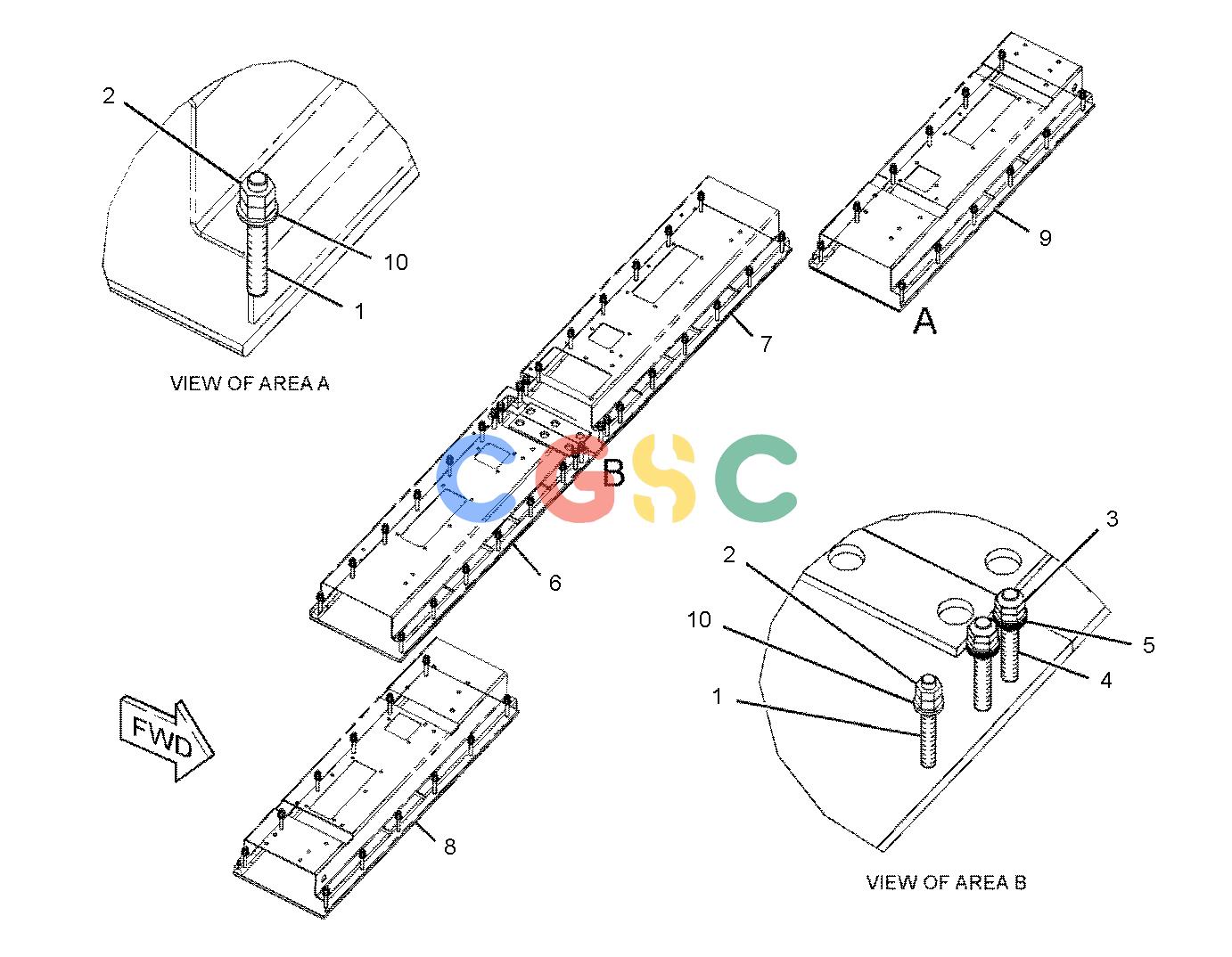

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 245-9693M | [48] | STUD(M12X1.75X100-MM) | |
| 2. | 248-9997M | [96] | NUT-BRASS(M12X1.75-THD) | |
| 3. | 249-0604M | [16] | NUT-BRASS(M14X2-THD) | |
| 4. | 249-0923M | [8] | STUD(M14X2X116-MM) | |
| 5. | 249-3037 | [32] | WASHER-SPRING | |
| 6. | 257-5243 | [1] | PLATE AS-SCREED(LH) | |
| 7. | 257-5244 | [1] | PLATE AS-SCREED(RH) | |
| 8. | 257-5245 | [1] | PLATE-SCREED(LH) | |
| 9. | 257-5246 | [1] | PLATE-SCREED(RH) | |
| 10. | 8T-4223 | [48] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| M | METRIC PART | |||
