卡特零件查询（AP-655D） 287-0269: PLATE GP-SCREED
广数供应链运营团队, 17 02月, 2025，浏览：
869 次

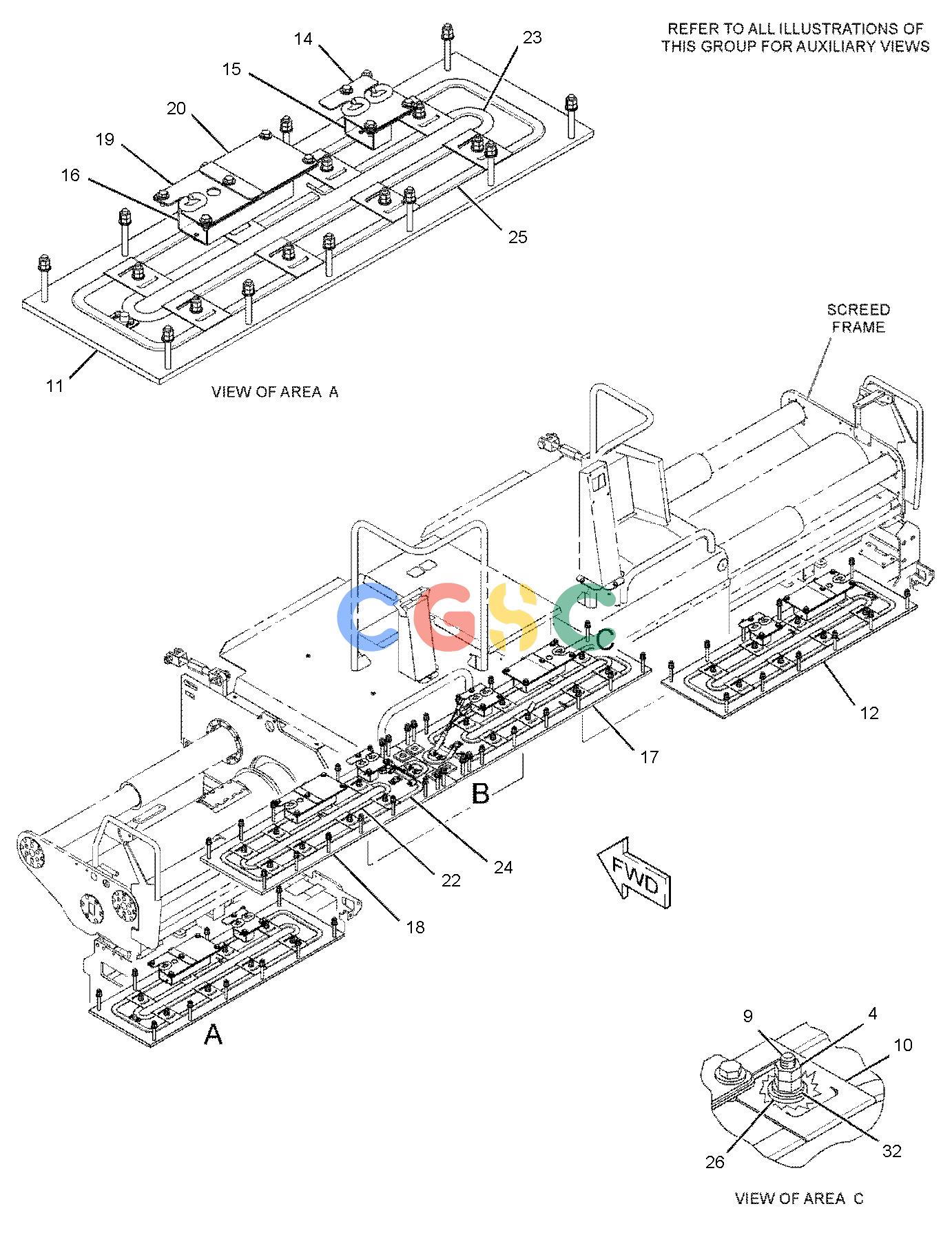

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 229-3138 | [4] | SENSOR GP-TEMPERATURE(SCREED HEAT) | |
| | | | (EACH INCLUDES) |
| | 186-3735 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 9X-1813E | | SLEEVE(57-CM) | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 2. | 245-9690 | [4] | PLATE | |
| 3. | 245-9693M | [48] | STUD(M12X1.75X100-MM) | |
| 4. | 248-9997M | [160] | NUT-BRASS(M12X1.75-THD) | |
| 5. | 249-0604M | [16] | NUT-BRASS(M14X2-THD) | |
| 6. | 249-0923M | [8] | STUD(M14X2X116-MM) | |
| 7. | 249-3037 | [32] | WASHER-SPRING | |
| 8. | 272-4935 | [8] | CLAMP | |
| 9. | 276-5733 | [32] | STUD(M12X1.75X58-MM) | |
| 10. | 287-0266 | [32] | PLATE | |
| 11. | 287-0267 | [1] | PLATE-SCREED(SLIDING, LH) | |
| 12. | 287-0268 | [1] | PLATE-SCREED(SLIDING, RH) | |
| 14. | 291-3693 | [4] | COVER AS | |
| 15. | 315-3688 | [4] | SUPPORT AS | |
| 16. | 315-3689 | [4] | SUPPORT AS | |
| 17. | 295-2106 | [1] | PLATE AS-SCREED(MAIN, RH) | |
| 18. | 295-2107 | [1] | PLATE AS-SCREED(MAIN, LH) | |
| 19. | 299-7224 | [4] | COVER AS | |
| 20. | 299-7225 | [4] | COVER | |
| 21. | 455-2249 | [2] | HEATER AS(240-VOLT, 700-WATT) | |
| 22. | 350-1489 | [2] | HEATER AS-SCREED(240-VOLT, 650-WATT) | |
| 23. | 350-1490 | [2] | HEATER AS-SCREED(240-VOLT, 720-WATT) | |
| 24. | 350-1491 | [2] | HEATER AS-SCREED(240-VOLT, 2600-WATT) | |
| 25. | 350-1492 | [2] | HEATER AS-SCREED(240-VOLT, 2900-WATT) | |
| | | | (EACH HEATER AS INCLUDES) |
| | 129-7164 | [2] | RECEPTACLE AS-CONNECTOR(1-PIN) | |
| 26. | 7X-0515 | [32] | WASHER-HARD(17X35X5-MM THK) | |
| 27. | 7X-7729 | [32] | WASHER(11X25X3-MM THK) | |
| 29. | 8T-4136M | [32] | BOLT(M10X1.5X25-MM) | |
| 31. | 8T-4138M | [16] | BOLT(M6X1X20-MM) | |
| 32. | 8T-4223 | [80] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 33. | 8T-4224 | [8] | WASHER-HARD(8.8X16X2-MM THK) | |
| 34. | 9X-8256 | [16] | WASHER(6.6X12X2-MM THK) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
