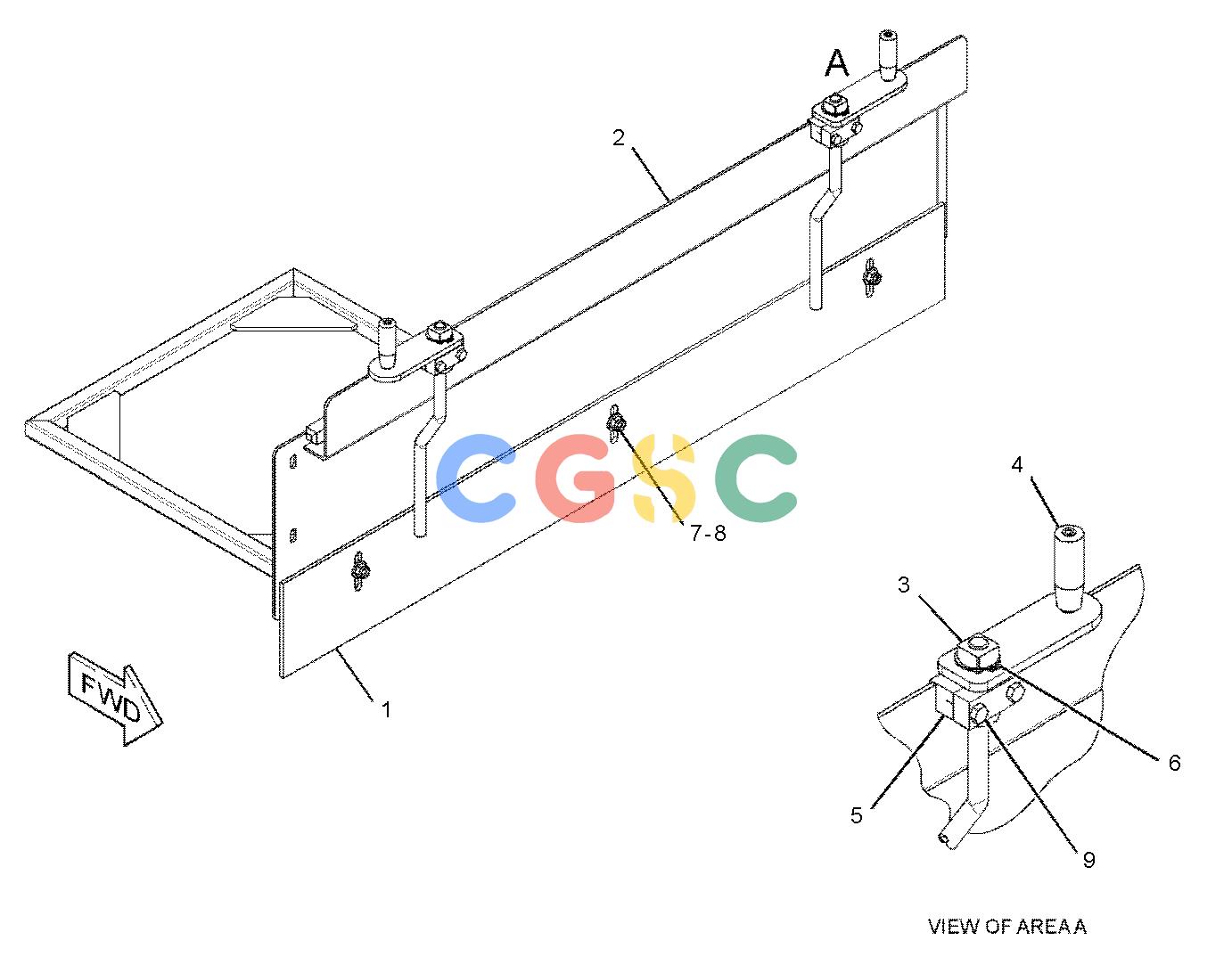

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 258-7179 | [1] | GATE AS | |
| 2. | 310-9818 | [1] | GUIDE AS(RH) | |
| 3. | 310-9821 | [2] | BUSHING | |
| 4. | 310-9829 | [2] | HANDLE AS(LEVER) | |
| (EACH INCLUDES) | ||||
| 242-2804 | [1] | HANDLE | ||
| 315-3713 | [1] | LEVER | ||
| 5. | 310-9831 | [2] | CLAMP | |
| 6. | 095-0922 | [2] | RING-RETAINING | |
| 7. | 7X-7729 | [3] | WASHER(11X25X3-MM THK) | |
| 8. | 8T-0389M | [3] | LOCKNUT(M10X1.5-THD) | |
| 9. | 8T-7547M | [4] | BOLT(M8X1.25X30-MM) | |
| M | METRIC PART | |||
