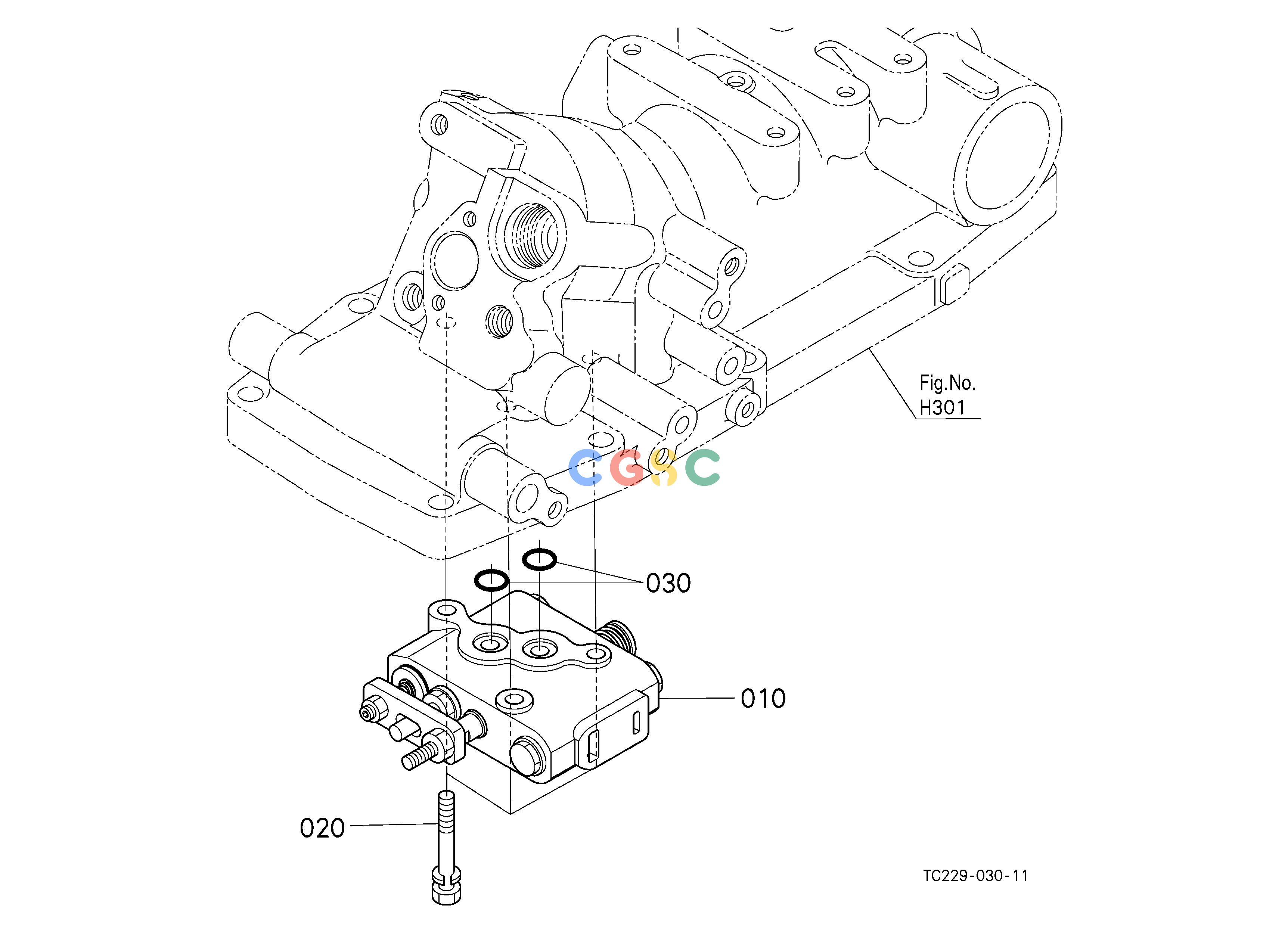

久保田零件查询H40502 CONTROL VALVE [NEW TYPE] ## S.No.>=61732 S.No.;>=61732 HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
256 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3135139604
|
[1] |
VALVE,CONTROL,ASSY
|
4.0700(lbs); 1.850
|
| 010. |
YR90800100
|
[1] |
ASSY VALVE,CONTROL
|
4.2900(lbs); 1.950
|
| 010. |
YR90800102
|
[1] |
ASSY VALVE,CONTROL
|
4.2900(lbs); 1.950
|
| 010. |
YR90800103
|
[1] |
ASSY VALVE,CONTROL
|
4.2900(lbs); 1.950
|
| 010. |
YR90800104
|
[1] |
ASSY VALVE,CONTROL
|
4.2900(lbs); 1.950
|
| 020. |
0112350850
|
[3] |
BOLT,SEMS
|
0.0440(lbs); 0.020
|
| 030. |
0481700120
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
