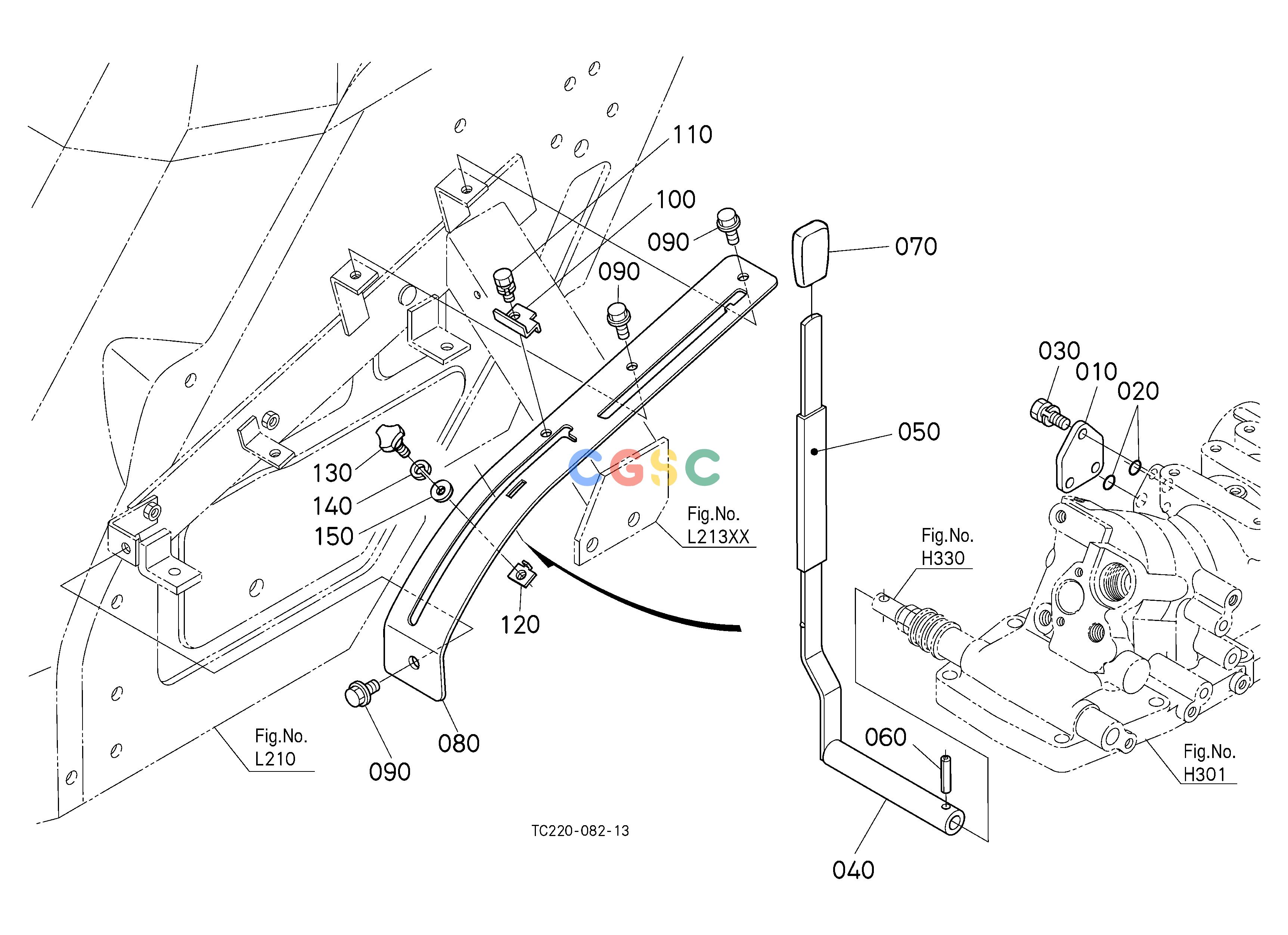

久保田零件查询H44001 POSITION CONTROL LEVER [NEW TYPE] ## S.No.>=85656 S.No.;>=85656 HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
461 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3243041210
|
[1] |
COVER,CYL.SIDE LH
|
0.2420(lbs); 0.110
|
| 020. |
0481700140
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 030. |
0112350820
|
[3] |
BOLT,SEMS
|
0.0242(lbs); 0.011
|
| 040. |
TC22036852
|
[1] |
LEVER,POSITION
|
1.2320(lbs); 0.560
|
| 050. |
TD06036130
|
[1] |
TUBE,LEVER
|
0.0110(lbs); 0.005
|
| 060. |
0541100525
|
[1] |
PIN,SPRING
|
0.0044(lbs); 0.002
|
| 070. |
5230032640
|
[1] |
GRIP,LEVER
|
0.0880(lbs); 0.040
|
| 080. |
TC22047603
|
[1] |
GUIDE,HYD.LEVER
|
0.9460(lbs); 0.430
|
| 090. |
0175450816
|
[3] |
BOLT,FLANGE
|
0.0242(lbs); 0.011
|
| 100. |
3407036130
|
[1] |
STOPPER
|
0.0330(lbs); 0.015
|
| 110. |
0112350816
|
[1] |
BOLT,SEMS
|
0.0242(lbs); 0.011
|
| 120. |
3407036140
|
[1] |
STOPPER
|
0.0110(lbs); 0.005
|
| 130. |
3741052610
|
[1] |
SCREW(KNOB)
|
0.0330(lbs); 0.015
|
| 140. |
0451250060
|
[1] |
WASHER,SPRING LOCK
|
0.0022(lbs); 0.001
|
| 150. |
3135118860
|
[1] |
WASHER
|
0.0044(lbs); 0.002
|
